Strapping Tools
Zapak Combination Plastic Strapping Tool Model GPS-93B/97A
Technical Specification:
| Model No. | Fits Poly-strap | Strap Width | Strap Thickness | Tension Range | Sealing Efficiency | ||
| mm | inch | mm | inch | ||||
| GPS93B | PP & PET | 12 ~ 16 | 1/2 ~ 5/8 | 0.65 ~ 1.05 | .026 ~ .04 | 25 ~ 250 kgs(55 ~ 550 lbs) | 85 ± 5% |
| GPS97A | PP & PET | 16 & 19 | 5/8 & 3/4 | 0.70 ~ 1.05 | .028 ~ .04 | 40 ~ 400 kgs(88 ~ 880 lbs) | 85 ± 5% |

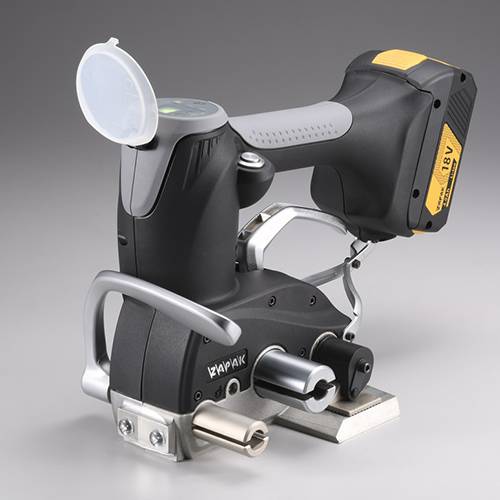

GPS-CT32 Cord Strap Tensioner
Technical Specification:
| Strap Type | Composite & Woven Cord Strapping |
| Strap Width | 19 - 32 mm (3/4" - 1.1/4") |
| Strap Thickness | 0.85 - 1.65 mm (0.033" - 0.065") |
| Tension Setting Range | 1 - 6 |
| Tensioning Force | 300 - 800 daN |
| Tensioning Speed | 35 mm/s |
| Weight | Tensioner excluding cutting acc.: approx. 3.2
kg Tensioner including cutting acc.: approx. 3.5 kg Battery: approx. 0.6 kg |

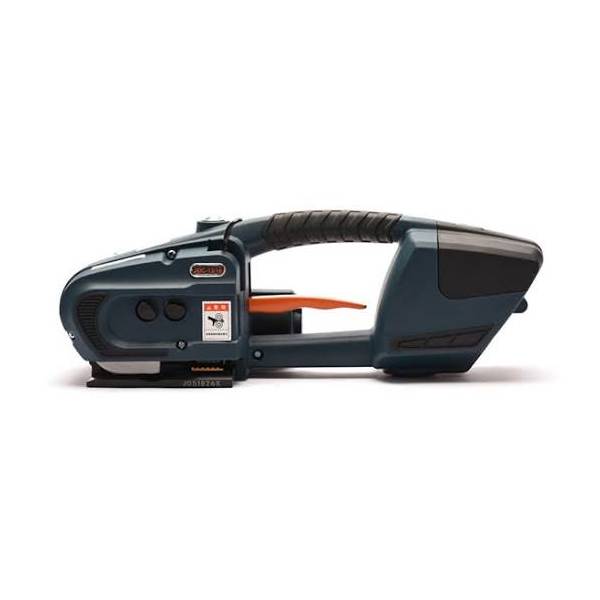

GPS 13/16 Battery powered plastic strapping tools
Technical Specification:
| Name | JDC13/16 Battery poweredplastic strapping tools | ||
| Width | 130mm | ||
| Function | Widely used in paper, aluminum,textile,steel, logistics,farm,chemical, metalindustlies and soon. | ||
| Height | 120mm | ||
| Spare parts | Two batteries and commonly used tool | ||
| Features | 1. lightweight body and easy to
use. 2. Without fasteners,using friction hot melt, the interface is beautifuland strong. 3. High degree of automation,simple operation and easy to understand. 4.Easy to move,for a variety of venues,lhe various size of the package can be applied. 5.The body and components are made of high-strength alloy materials and engineering plastics,which is durable in use. 6. High safety performance. |
||
| Model | JDC13 | JDC16 | |
| Color | Blackish green | ||
| Apply size | Width | 13mm | 16mm |
| Thickness | 0.5-1.0mm | 0.5-1.2mm | |
| Apply straps | PP strap or PET strap. | ||
| Seal straps form | Friction and welding | ||
| Maximum tension force | 2800N | ||
| Battery | lithium battery 3.0Aih12VCD | ||
| Charger | 100V -245CAC-50-60HZ DC12.6V=4.0A | ||
| Charge time | Charge 90 minutes can strap 100-220 loops | ||
| Age | Can charge 2000 times | ||
| Weight | 3.16kg | ||
| Machine specification | 340 x 130 x 120 mm | ||

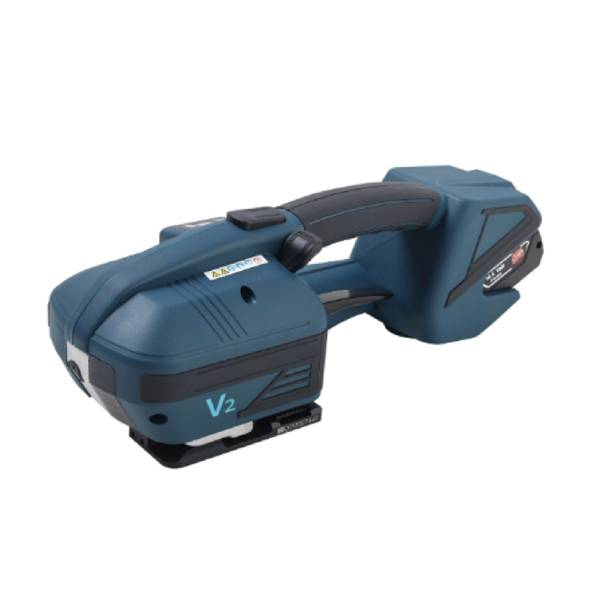

V2 Battery Operated Strapping Tool
Technical Specification:
| Model | V2 |
| Color | Blue |
| Material | PP & PET |
| Strap Width | 12-16 mm |
| Strap Thickness | 0.4-1.2 mm |
| Battery Specifications | 14.4V 4.0Ah 57.6Wh |
| Charging Time | 90 min |
| Number of Bands | 300 pcs |
| Machine Weight | 3.35 kg |
| Dimensions | L380 x H130 x W130 mm |
| Pull | 400-3200 N (Adjustable) |
| Parameter Settings | LED |
| Motor Type | BLDC |

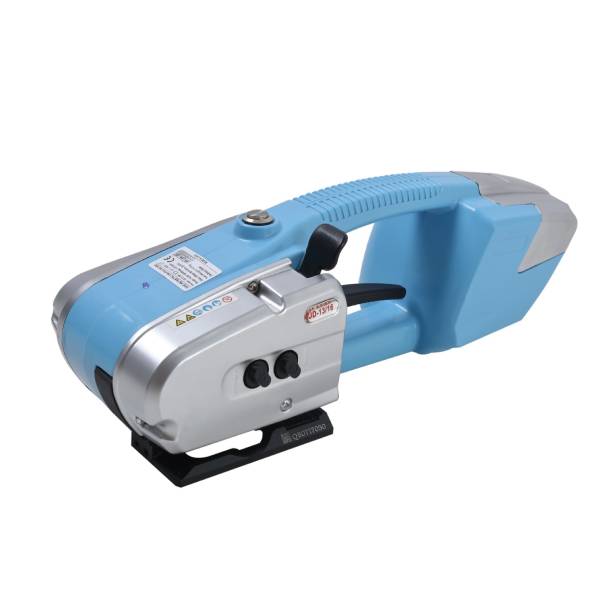

JD 13/16 Battery Operated Strapping Tool
Technical Specification:
| Model | JD 13/16 |
| Color | Sky Blue |
| Material | PP & PET |
| Strap Width | 12-16 mm |
| Strap Thickness | 0.4-1.2 mm |
| Battery Specifications | 11.1V 3.0Ah 33.3Wh |
| Charging Time | 90 min |
| Number of Bands | 100-180 pcs |
| Machine Weight | 2.8 kg |
| Dimensions | L340 x H130 x':1112 mm |
| Pull | 600-2800 N (Adjustable) |
| Parameter Settings | Knob |
| Motor Type | BLDC |

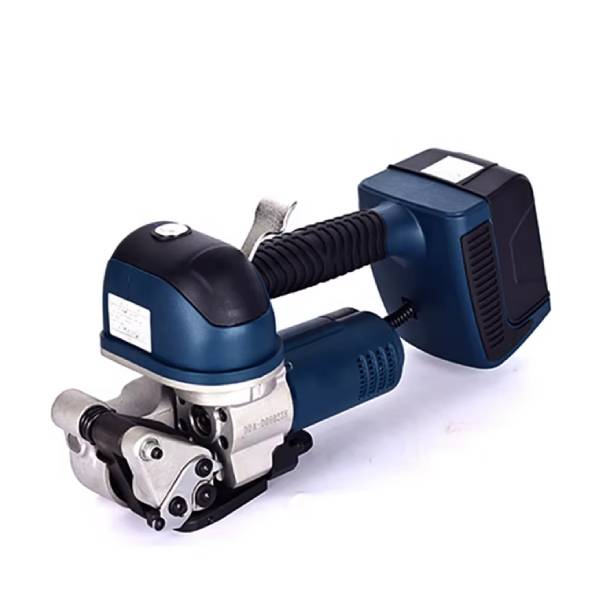

DD19/25 Strapping Tool
Technical Specification:
| Model | DD19/25 |
| Color | Blue |
| Material | PET |
| Strap Width | 16-25 mm |
| Strap Thickness | 0.8-1.27mm |
| Battery Specifications | 14.8V 4.0Ah 59.2Wh |
| Charging Time | 90 min |
| Number of Bands | 100-180 pcs |
| Machine Weight | 3.8 kg |
| Dimensions | L350 x H135 x VV170 mm |
| Pull | 400-5000 N (Adjustable) |
| Parameter Settings | LED |
| Motor Type | BLDC |

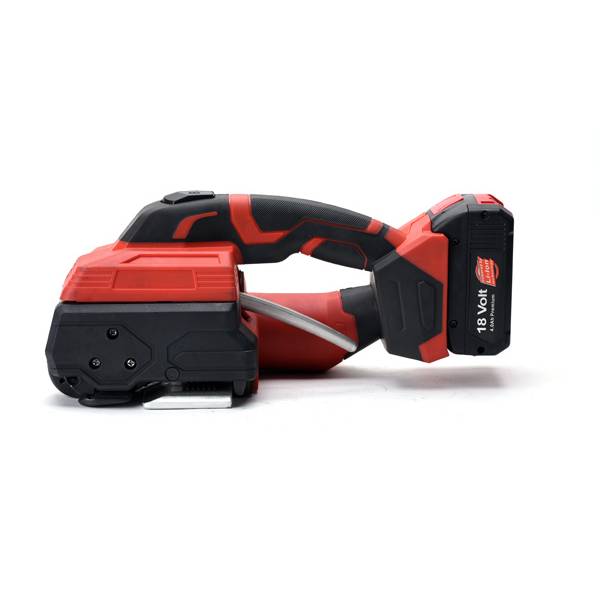

Q31-19 Battery Operated Strapping Tool
Technical Specification:
| Model | Q31-19 |
| Color | Red |
| Material | PP & PET |
| Strap Width | 16-19 mm |
| Strap Thickness | 0.8-1.27 mm |
| Battery Specifications | 18V 5.0Ah 75h |
| Charging Time | 90 min |
| Number of Bands | 700 pes |
| Weight | 4.05 kg |
| Dimensions | L370 x H140 x W135 mm |
| Pull | 800-5500 N (Adjustable) |
| Parameter Settings | LED |
| Motor Type | BLDC |

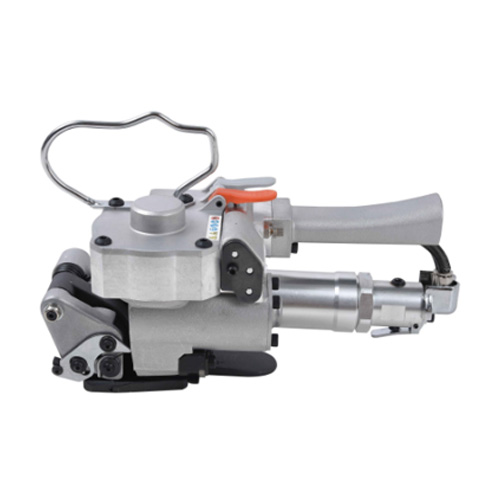

AQD-19/25 Pneumatic Strapping Tool
Technical Specification:
| Color | Metallic Grey |
| Apply Strap | PP & PET |
| Seal Strap From | Friction and Hot Welding |
| Strap Width | 12-25 mm |
| Strap Thickness | 0.5-1.5 mm |
| Pull | 3500 N |
| Using Air Pressure | 5-8 Bar |
| Dimensions | L280 x H160 x W180 mm |
| Weight | 3.8 kg |

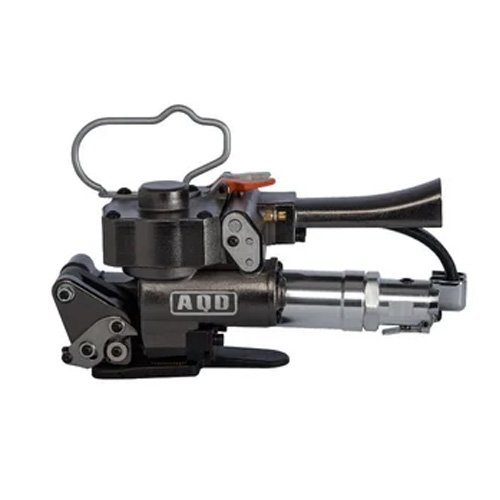

AQD-HD-19/25 Pneumatic Operated Strapping Tool
Technical Specification:
| Color | Metallic Grey |
| Apply Strap | PP & PET |
| Seal Strap From | Friction and Hot Welding |
| Strap Width | 12-19 mm |
| Strap Thickness | 0 5-1 5 mm |
| Pull | 3500 N |
| Using Air Pressure | 5-8 Bar |
| Dimensions | L280 x H160 x VV180 mm |
| Weight | 3.8 kg |

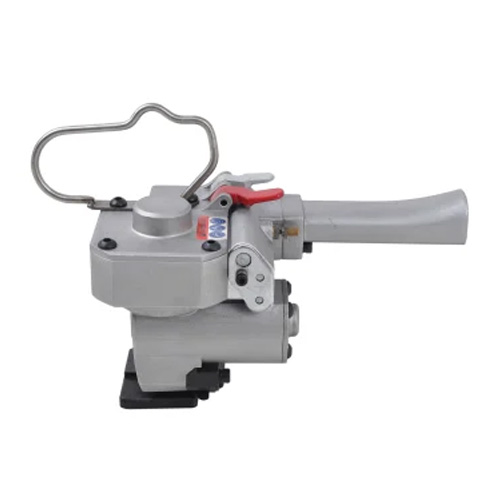

XQH-19 Pneumatic Operated Strapping Tool
Technical Specification:
| Color | Metallic Grey |
| Apply Strap | PET |
| Seal Strap From | Friction and Hot Welding |
| Strap Width | 12-19 mm |
| Strap Thickness | 0.5-1.27 mm |
| Pull | 3500 N |
| Using Air Pressure | 5-8 Bar |
| Dimensions | L240 x H108 x V. rum |
| Weight | 2.5 kg |

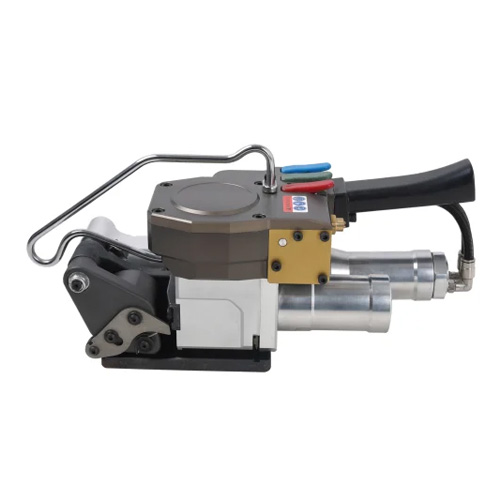

AQD-32 Pneumatic Operated Strapping Tool
Technical Specification:
| Color | Metallic Grey |
| Apply Strap | PET |
| Seal Strap From | Friction and Hot Welding |
| Strap Width | 25-32 mm |
| Strap Thickness | 0 6-1 5 mm |
| Pull | 6000 N |
| Using Air Pressure | 5-8 Bar |
| Dimensions | L320 x H140 x W137 mm |
| Weight | 6.5 kg |

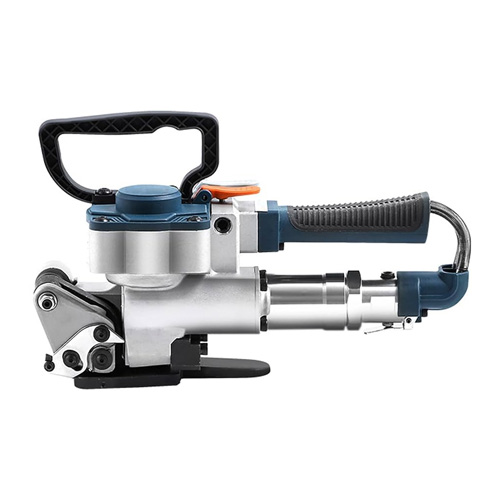

B-19 Pneumatic Operated Strapping Tool
Technical Specification:
| Color | Silver |
| Apply Strap | PET |
| Seal Strap From | Friction and Hot Welding |
| Strap Width | 12-19 mm |
| Strap Thickness | 0.5-1.27 mm |
| Pull | 3500 N |
| Using Air Pressure | 5-8 Bar |
| Dimensions | L300 x H150 x W173 mm |
| Weight | 2.5 kg |

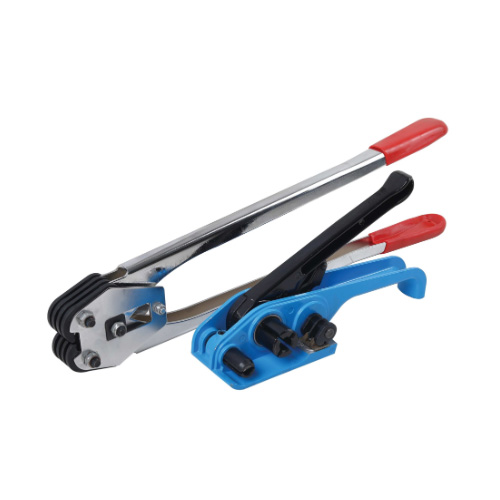

H-19-J19 Pneumatic Operated Strapping Tool
Technical Specification:
| Apply Strap | PP & PET |
| Strap Width | 13-19 mm |
| Strap Thickness | 0.5-1.0 mm |
| Locking Method | Metal Clip |
| Tensioner Weight | 1.18 Kg |
| Dimensions | L130 x H360 x W150 mm |
| Sealer Weight | 1.8 kg |

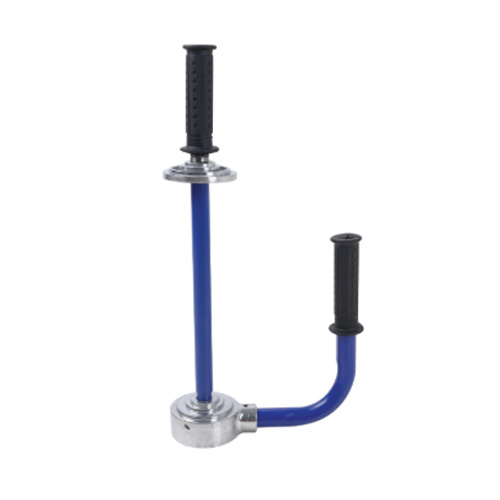

W-110 Pneumatic Operated Strapping Tool
Technical Specification:
| Color | Blue |
| Paper Core Inner Diameter | 38-76 mm |
| Adjustable Height | 300-500 mm |
| Suitable Film Weight | 3.5 kg |
| Dimension | L49 x H270 x W90 mm |
| Weight | 1.3 kg |

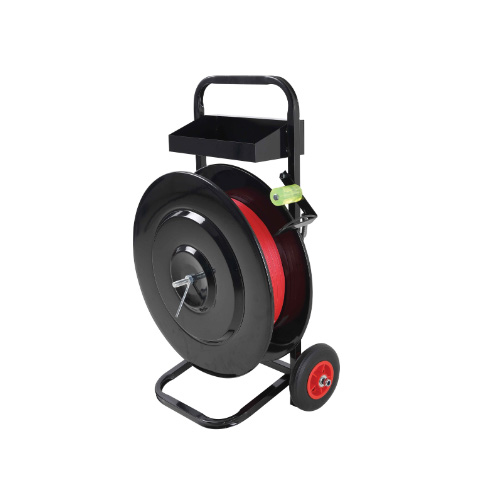

H405 Pneumatic Operated Strapping Tool
Technical Specification:
| Color | Black |
| Product Size | 650 X 480 X 1100 mm |
| Weight | 17 Kg |
| Application Product | PET |
| Inner Diameter Coil | 400 mm |
