Semi Automatic Strapping Machine

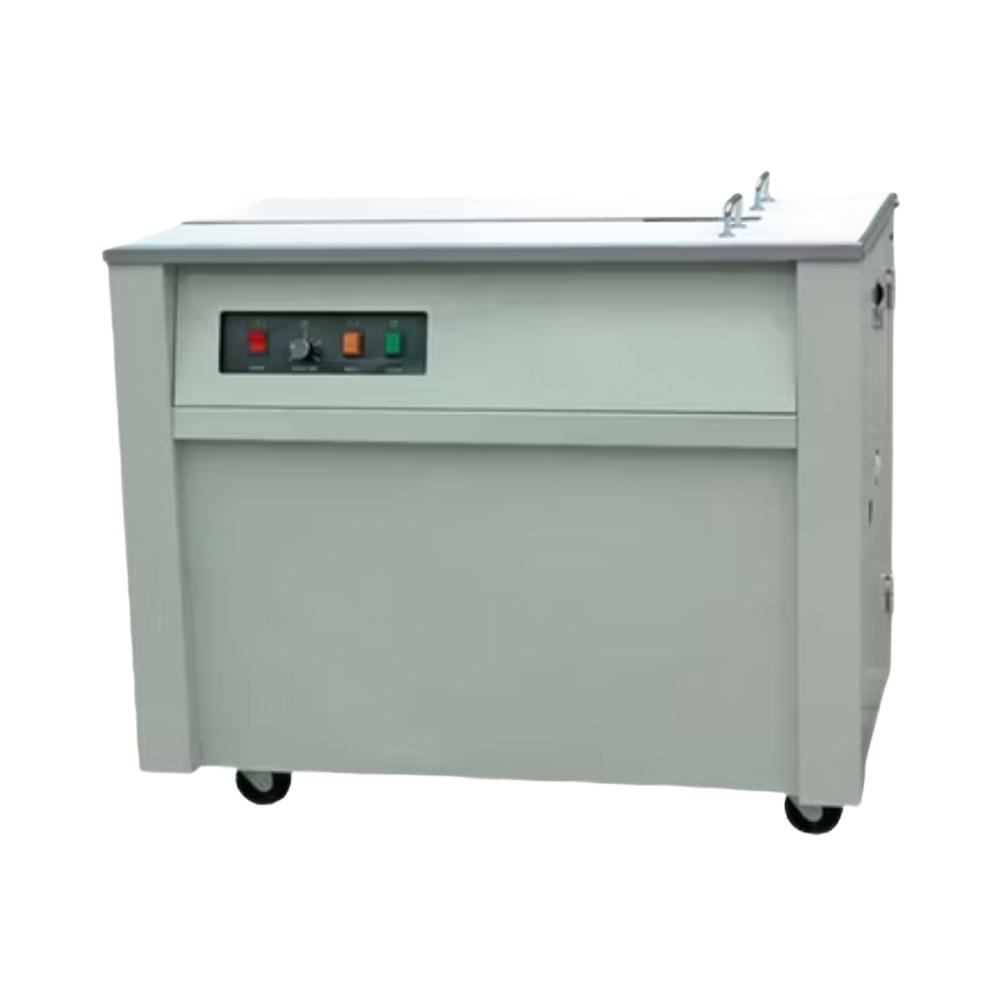

Semi-automatic Strapping Machine High Table Hualian GPS 101 H
Technical Specification:
| Model | GPS 101 H |
| Max. Strap Size (mm) | Not Stipulated |
| Min. Strap Size (mm) | 60 x 30 |
| Strapping Speed (seconds) | 1.5 |
| Strap Width (mm) | 09/12/15 |
| Strap Force (Newton) | 450 |
| Working Table Height (mm) | 750 |
| Power Source (V/Hz) | 220 / 50, ¼ HP |
| External Dimension (mm) | L900 x D580 xH 750 |
| Weight (kg) | 100 |

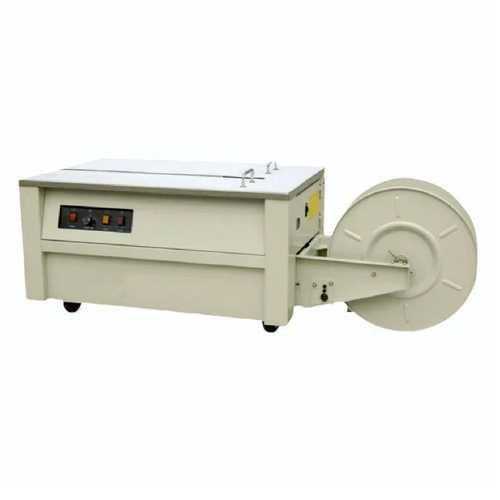

Semi-automatic Strapping Machine Low Table (Hualian)
Technical Specification:
| Model | GPS 101 L |
| Max. Strap Size (mm) | Not Stipulated |
| Min. Strap Size (mm) | 60 x 30 |
| Strapping Speed (seconds) | 1.5 |
| Strap Width (mm) | 09/12/15 |
| Strap Force (Newton) | 450 |
| Working Table Height (mm) | 500 |
| Power Source (V/Hz) | 220 / 50, ¼ HP |
| External Dimension (mm) | L900 x D580 x H500 |
| Weight (kg) | 90 |

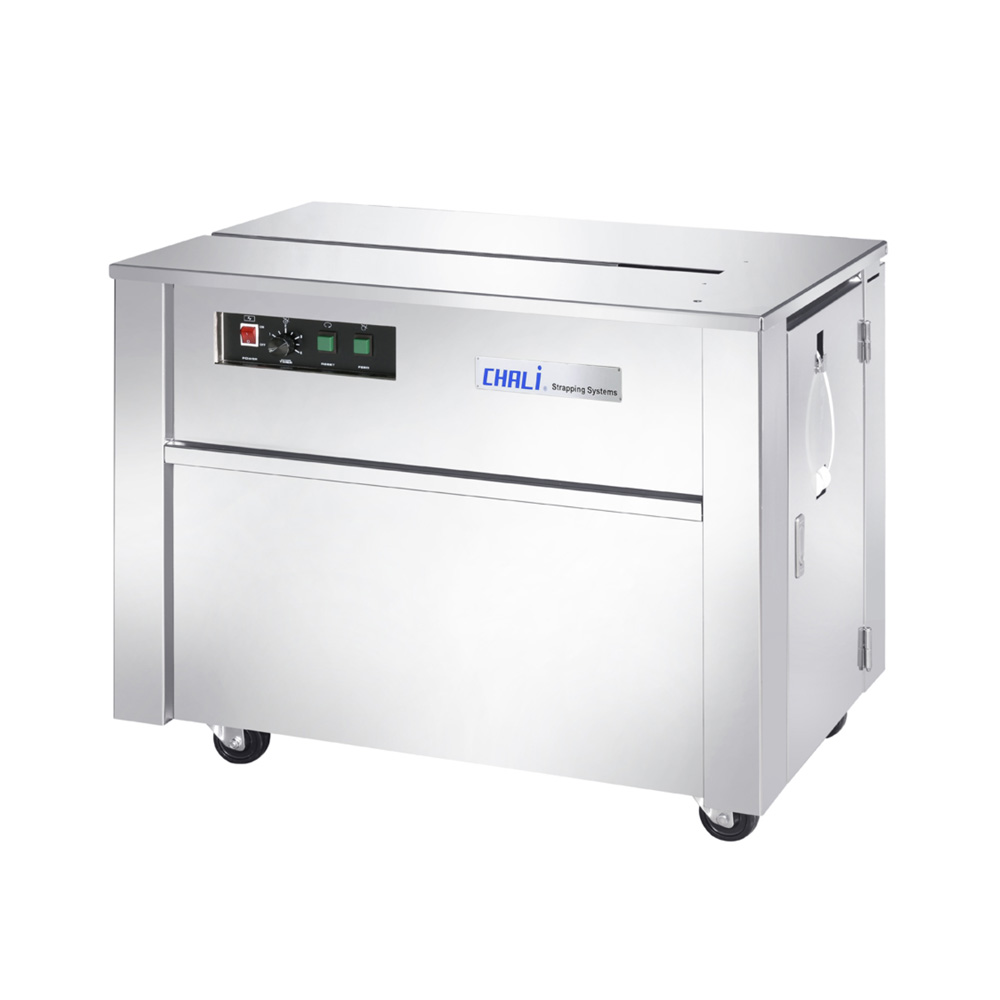

Semi-automatic Strapping Machine Chali Taiwan High Table
Technical Specification:
| Model | GPS 740 H |
| Cycle Time | 1.5 sec/strap |
| Tension Range | 15-45 kg |
| Sealing method | Heating Element |
| Strap Width (mm) | 09/12/15 |
| Reel Inside Diameter | 200mm |
| Table Height | 780mm |
| Power Supply | 220 / 50/1HP |
| Power Consumption | 0.5 KW |
| Layout Dimension | L902*D575*H780 mm |
| Weight (kg) | 110 |

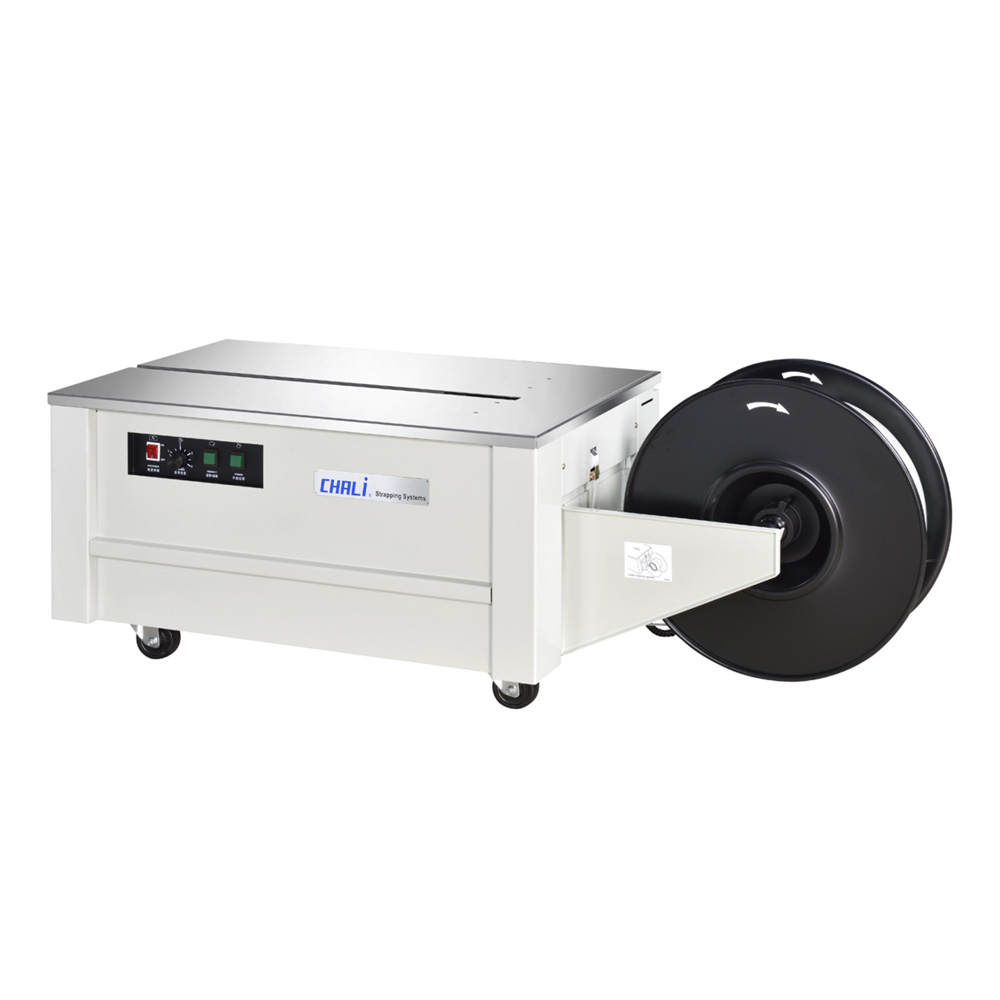

Semi-automatic Strapping Machine Chali Taiwan Low Table
Technical Specification:
| Model | GPS 740 L |
| Cycle Time | 1.5 sec/strap |
| Tension Range | 15-45 kgs |
| Sealing method | Heating Element |
| Strap Width (mm) | 09/12/15 |
| Reel Inside Diameter | 200mm |
| Table Height | 500mm |
| Power Supply | 220 / 50/1HP |
| Power Consumption | 0.5 KW |
| Layout Dimension | L902*D575*H510 |
| Weight (kg) | 100 |

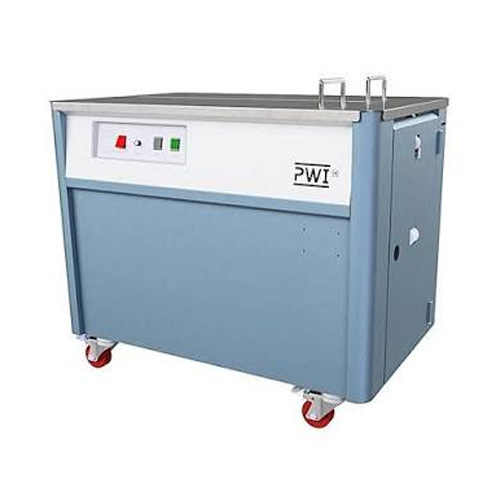

Semi-automatic Strapping Machine GPS – 311H (Packway)
Technical Specification:
| Model | GPS - 311H | |
| Power | 1 Phase, 110/220V | 50/60Hz |
| Strap Width | 9/12/15 (mm) 6mm upon request (please advice when ordering) |
|
| Strapping Tension Range | 15 ~ 50 (kg) 33~110 (lb) |
|
| Strappping Speed | 2 (sec/strap) | |
| Min. Strapping Size | 60 (mm) 2.4 (in) |
|
| Max. Strapping Size | Any size | |
| Table Height | 750 (mm) 29.5 (in) |
|
| Machine Size | 910 x 580 x 750 (mm) | |
| (LxWxH) | 35.8 x 22.8 x 29.5 (in) |

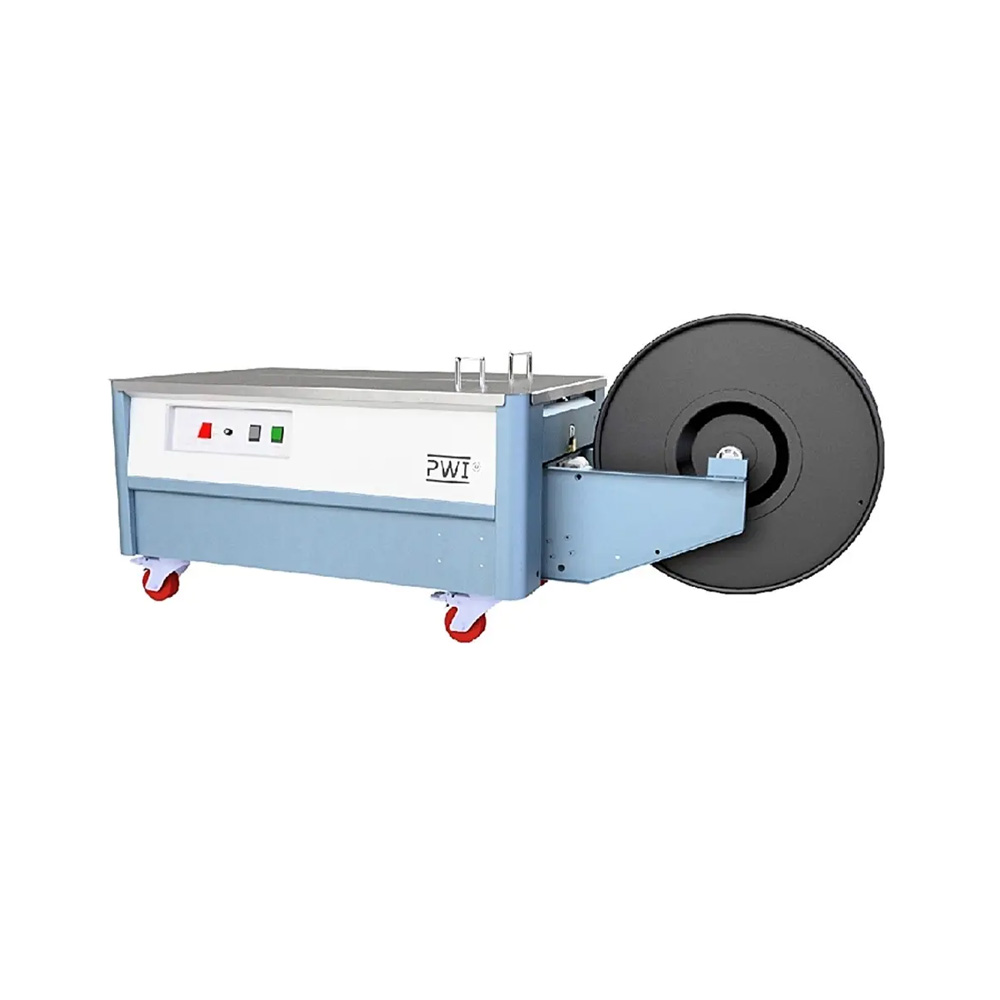

Semi-automatic Strapping Machine GPS – 311L (PWI)
Technical Specification:
| Model | GPS - 311L |
| Power | 1 Phase, 110/220V, 50/60Hz |
| Strap Width | 9/12/15 (mm) 6mm upon request (please advice when ordering) |
| Strapping Tension Range | 5 ~ 25 (kg) 11~55 (lb) |
| Strappping Speed | 2 (sec/strap) |
| Min. Strapping Size | 60 (mm) 2.4 (in) |
| Max. Strapping Size | Any size |
| Table Height | 750 (mm) 29.5 (in) |
| Machine Size | 910 x 580 x 750 (mm) |
| (LxWxH) | 35.8 x 22.8 x 29.5 (in) |

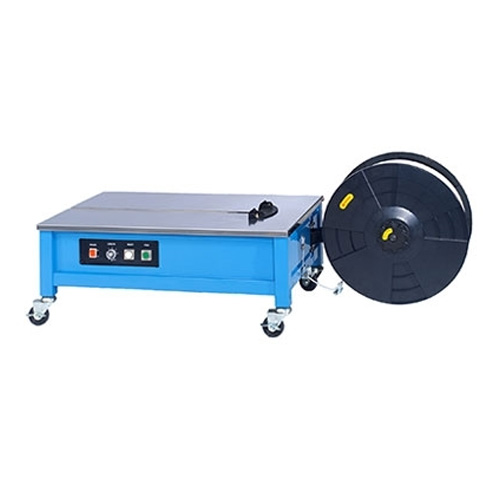

Semi-automatic Strapping Machine GPS-202L Low Table (Transpak)
Technical Specification:
| Model | GPS - 202 |
| Strap Width | 6 mm - 15.5 mm |
| Tension Range | 15 kg - 45 kg |
| Weight | 80 kg |
| Electrical Requirements | 110V, 220V, 230V, 240V, 50/60Hz 1PH |

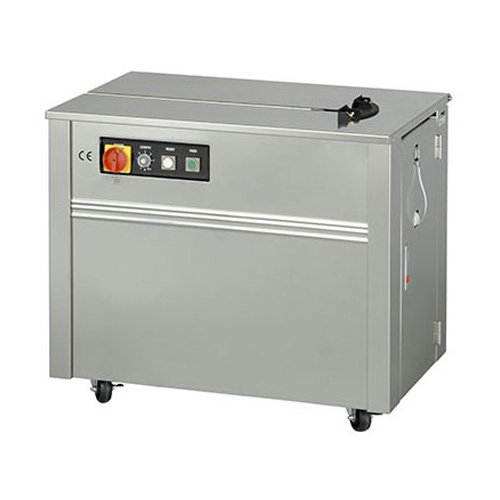

Semi-automatic Strapping Machine GPS – 201CES (SS Frame SUIS304) Transpak
Technical Specification:
| Model | GPS - 201 CES |
| Strap Width | 6 mm - 15.5 mm |
| Tension Range | 15 kg - 45 kg |
| Weight | 100 kg |
| Electrical Requirements | 110V, 220V, 230V, 240V, 50/60Hz 1PH |

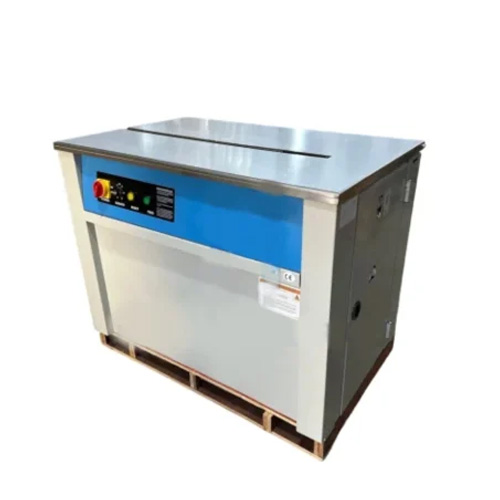

Premium Semi-automatic Strapping Machine 2.5mm Heavy Top
Technical Specification:
| Model | GPS 101H D |
| Strapping Speed (seconds) | 1.5 |
| Strap Width (mm) | 09-12-2015 |
| Strap Force (Newton) | 450 |
| Working Table Thickness (mm) | 750 |
| Table top Thickness (mm) | 2.5 |
| Housing | Iron Roller |
| Heavy Motor | Copper |
| Micro Switch | Huida |
| PCB Card | Packway |
| Power Source (V/Hz) | 220 / 50 ¼ HP |
| External Dimension (mm) | L900 x D580 x H750/500 |
| Weight (kg) | 100 |

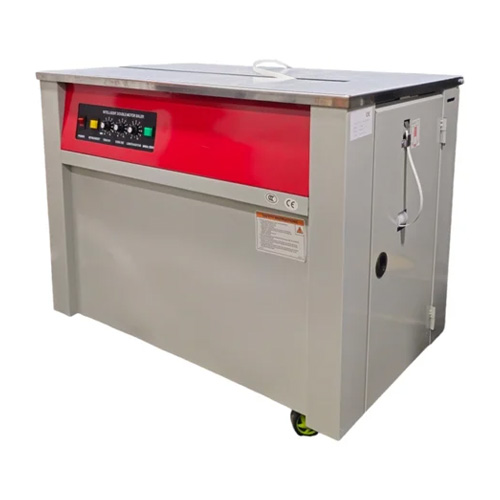

Semi-automatic Strapping Machine Double Motor
Technical Specification:
| Model | GPS 101 H DM |
| Strap Width | 9/12/15 mm |
| Speed | 1.5 sec/ straps |
| Power Supply | 220 V Single phase |
| Power Consumption | 0.65 Kw |
| Machine Dimension (L * W * H) mm | L895 * D565 * H735 mm |
| Weight (Kg) | 75 Kg |

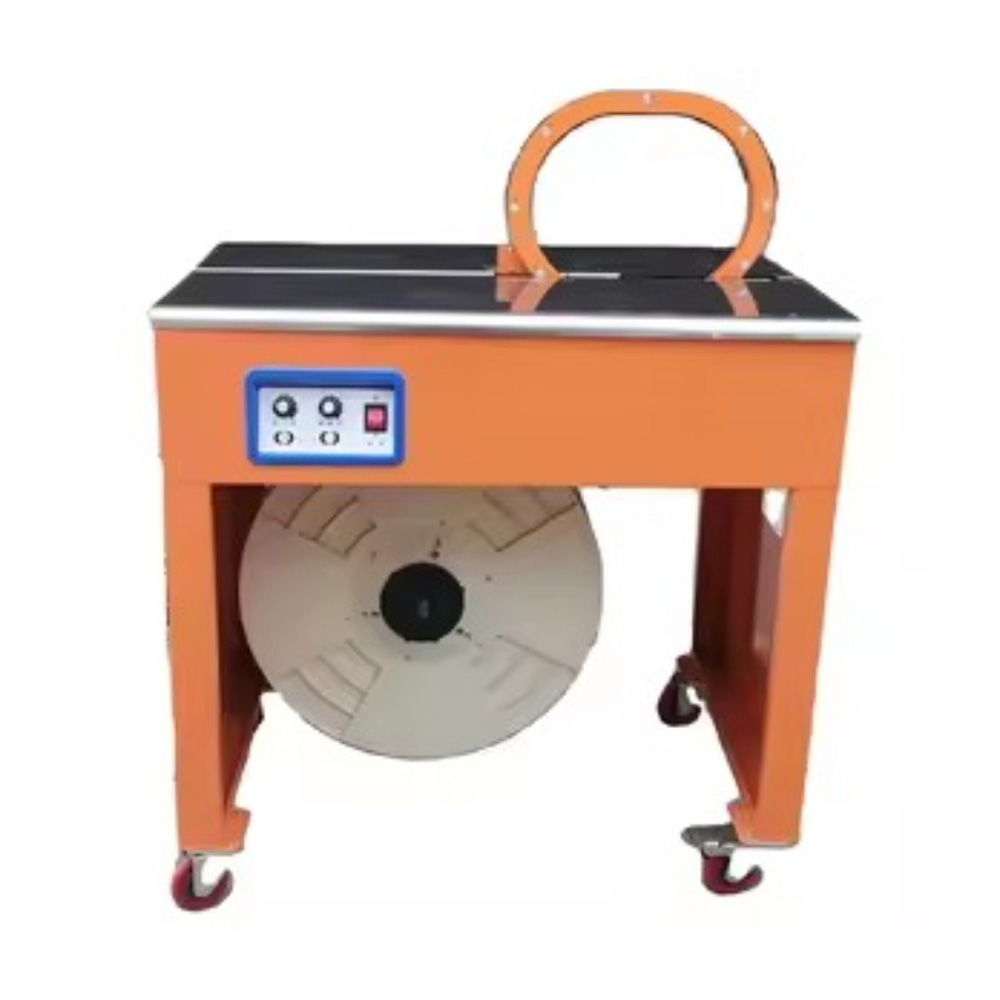

Semi-automatic Arch Type Strapping Machine
Technical Specification:
| Model | Gps 101 FM |
| PP Belt Width | 9 - 12 Mm |
| Speed | 1.5 M / S |
| Power Supply | 220 V / 50 Hz |
| Power | 350 W |
| Machine Dimension (L * W * H) Mm | 770 X 540 X 970 Mm |
| PP Belt Thickness | 0.6 -0.8 Mm |
| Frame Size | 355 X 210 Mm |

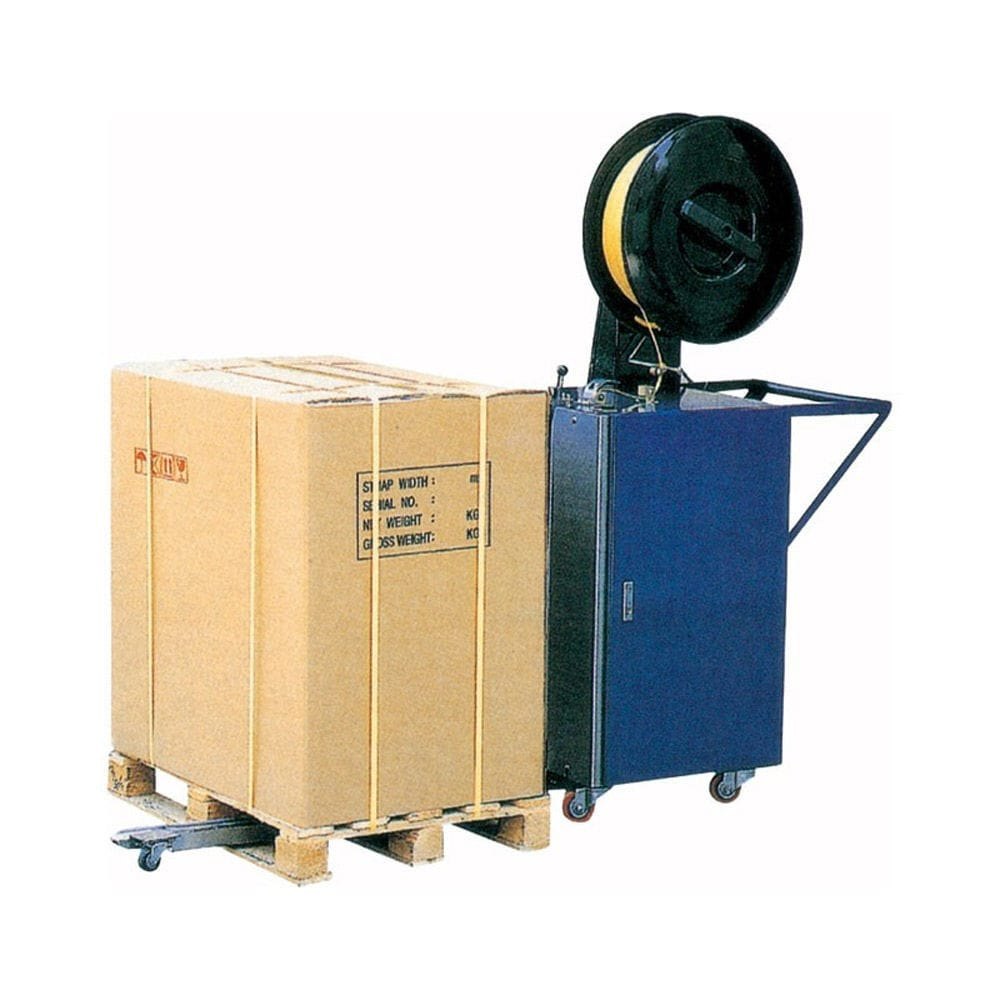

Pallet Strapping Machine
Technical Specification:
| Model | GPS 850 |
| Strap Width | 9-15 mm |
| Speed | 1.5 sec/ straps |
| Power Supply | 220 V Single phase |
| Power Consumption | 0.65 Kw |
| Machine Tension | 450 Newtons |
| Machine Dimension (L * W * H) mm | 550 * 700 * 1300 mm |
| Weight (Kg) | 100 Kg |

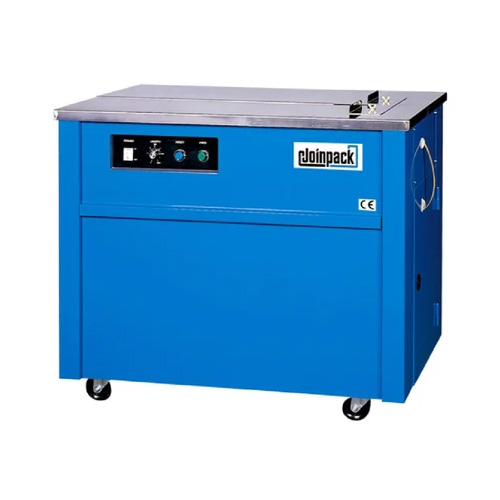

Semi-automatic Strapping Machine Closed Cabinet (Electromagnetic Clutch) Joinpack
Technical Specification:
| Model | GPS - 103 |
| Cycle Time | 2.5 sec./strap |
| Tension Range | 15~45kgs |
| Strap Width | 9/12/15.5mm adjustable |
| Sealing Method | Heating element |
| Reel Inside Diameter | 200, 230, 280mm specified |
| Power Supply | 100/110/220/230/240V, 50/60HZ 1PH |
| Table Height | 780mm |
| Power Consumption | 0.4kw |
| Machine Dimension (L x W x H mm) | L902 x W575 x H780 |
| Machine Weight (50% 100% 150% 200%) | 90kgs |

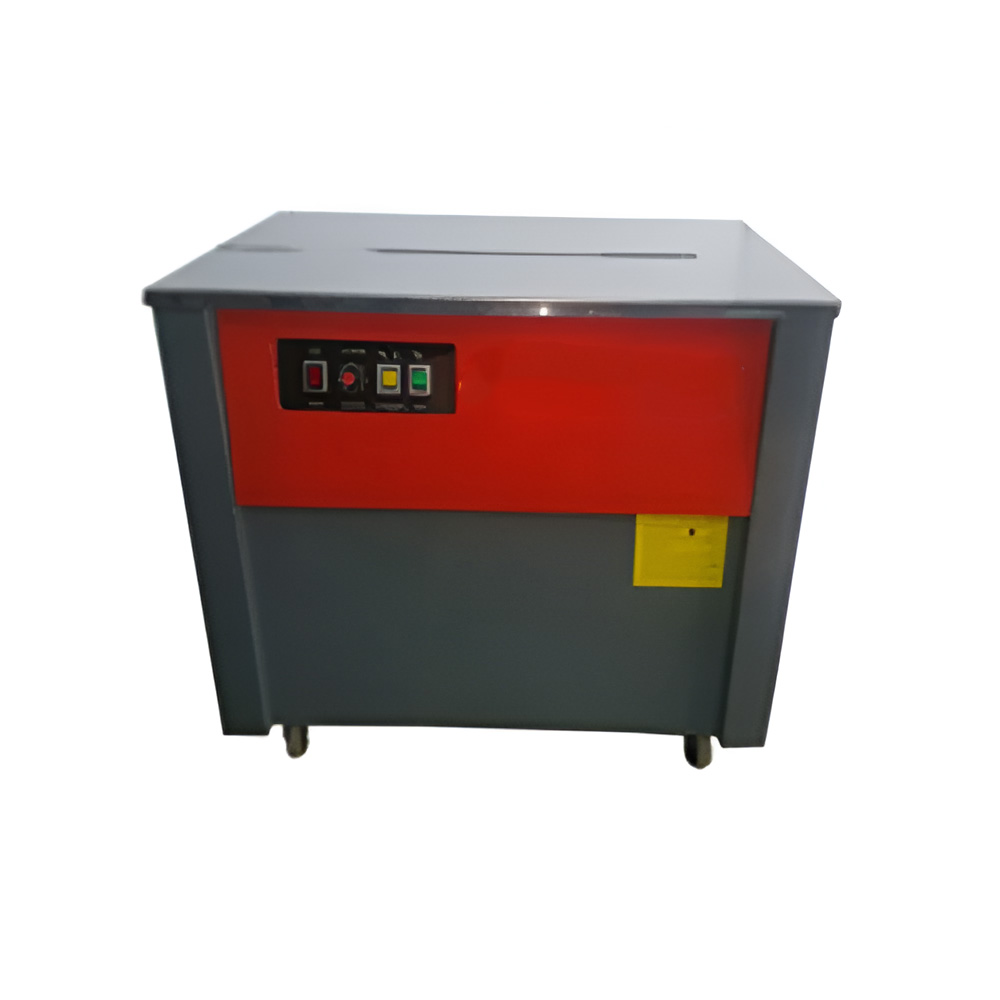

Semi-automatic Strapping Machine High Table Regular
Technical Specification:
| Model | GPS 101 HR |
| Max. Strap Size (mm) | Not Stipulated |
| Min. Strap Size (mm) | 60 x 30 |
| Strapping Speed (seconds) | 1.5 |
| Strap Width (mm) | 09/12/15 |
| Strap Force (Newton) | 450 |
| Working Table Height (mm) | 750 |
| Power Source (V/Hz) | 220 / 50, ¼ HP |
| External Dimension (mm) | L900 x D580 x H750 |
| Weight (kg) | 90 |

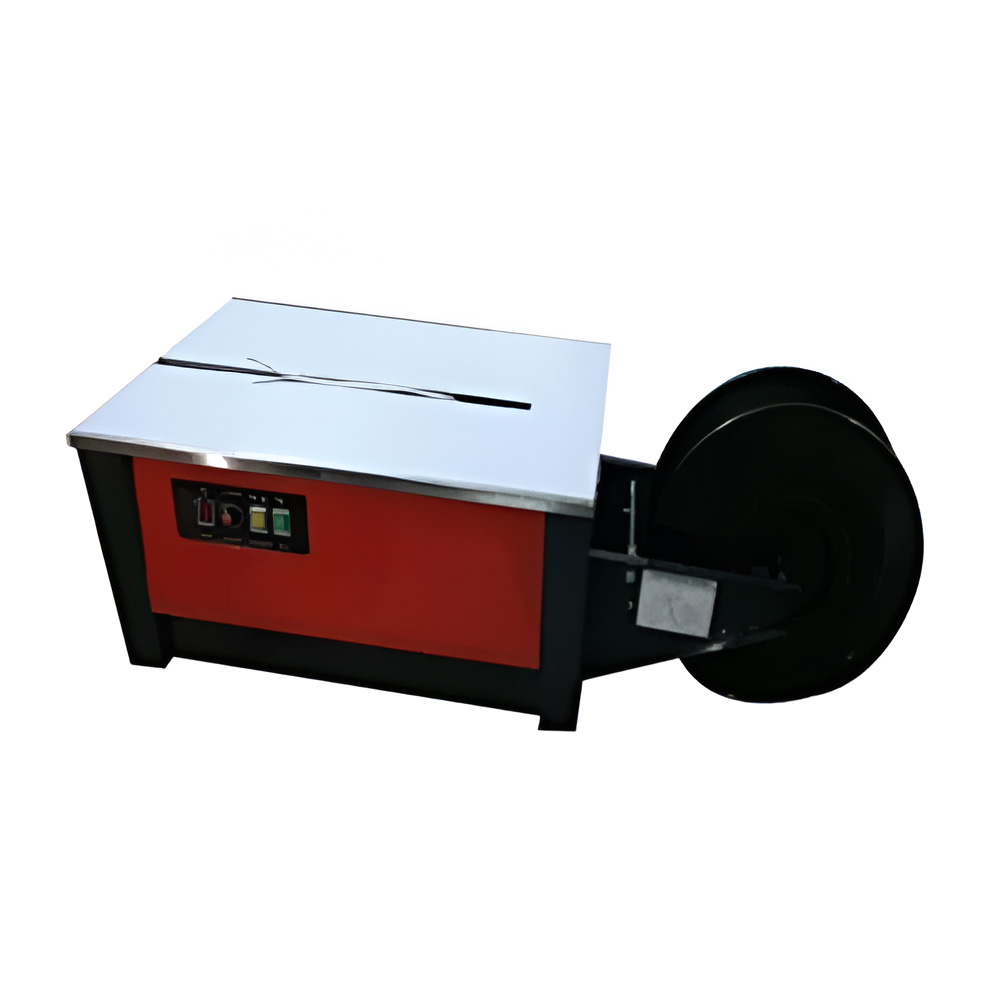

Semi-automatic Strapping Machine Regular Low Table
Technical Specification:
| Model | GPS 101 LR |
| Max. Strap Size (mm) | Not Stipulated |
| Min. Strap Size (mm) | 60 x 30 |
| Strapping Speed (seconds) | 1.5 |
| Strap Width (mm) | 09/12/15 |
| Strap Force (Newton) | 450 |
| Working Table Height (mm) | 500 |
| Power Source (V/Hz) | 220 / 50, ¼ HP |
| External Dimension (mm) | L900 x D580 x H500 |
| Weight (kg) | 80 |
