Liquid & Paste Filling Machine

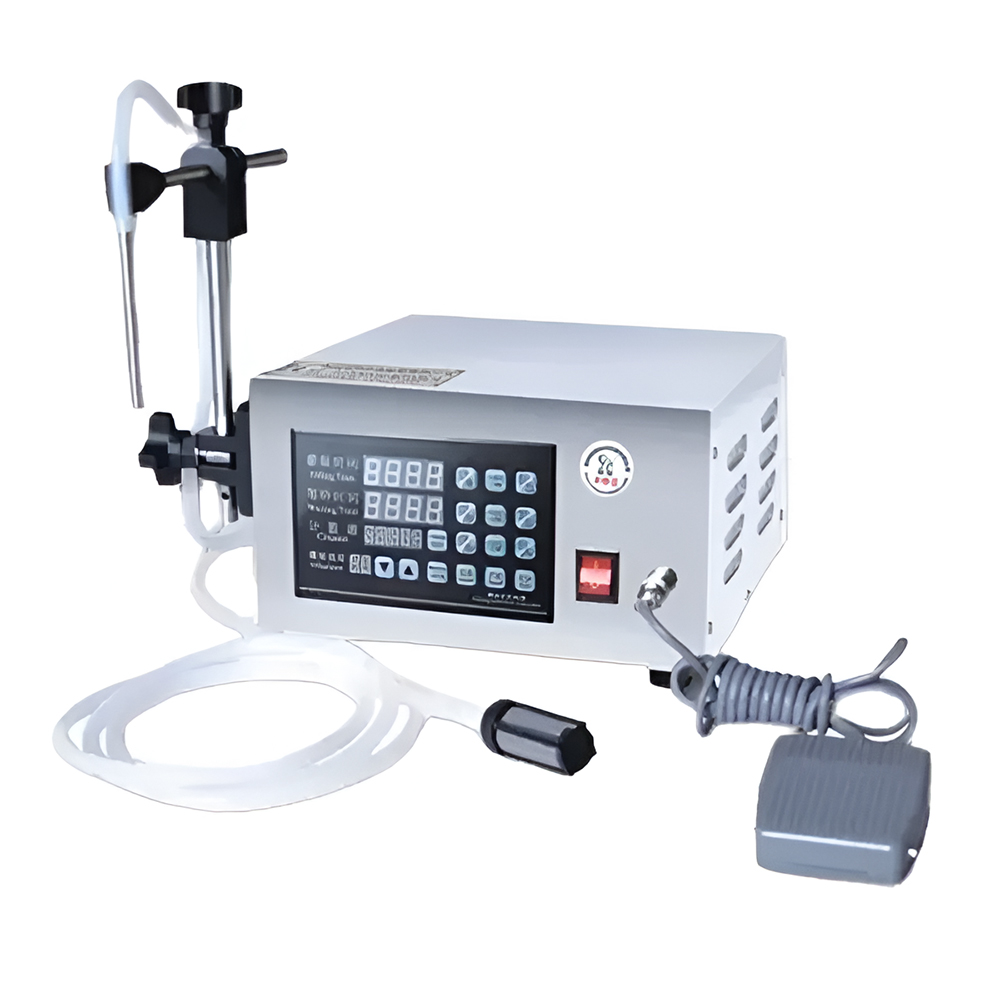

Semi- Automatic Liquid Filling Machine
Technical Specification:
| Capacity | 60 BPM |
| Filling Range | 50 ml to 500 ml |
| No Of Heads | 1 Head |
| Filling Speed | 10 to 20 bpm |
| Operation Type | Foot Operated |
| Suitable For | Pharma |
| Container Type | Tube |
| Container Type | Bottle |

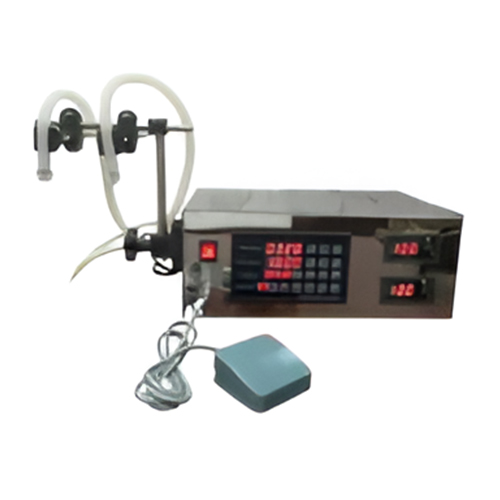

Double Head 10 To 5000Ml Liquid Filling Machine
Technical Specification:
| Automation Grade | Semi-Automatic |
| Filling Range | 100 ml to 1000 ml |
| No Of Heads | 2 Head |
| Filling Speed | 20 to 40 bpm |
| Capacity | 2000 pouch/hour |
| Suitable For | Milk |
| Suitable For | Water |
| Suitable For | Syrup |
Manual Paste Filler Machine
Technical Specification:
| Filling Volume | 5-50 ml |
| Filling Range | 5-50 ml |
| Automation Grade | Manual |
| Operation Mode | Manual |
| Material | Mild Steel |
| Number of Filling Heads | 1 |
| Number of Heads | 1 |
| Filling Mechanism | Handle |
| Filling Volumes | 50 ml |
| Machine Type | Manual |
| Drive Type | Manual |
| Nozzle Type | Single |
| Application | Gel, Jam, Mayonnaise, Ginger/Garlic/Chocolate, Resins, Honey, Sauce & Various types of paste |
| Nozzel Diameter | 12mm max. |
| Accuracy | +/- 1% |

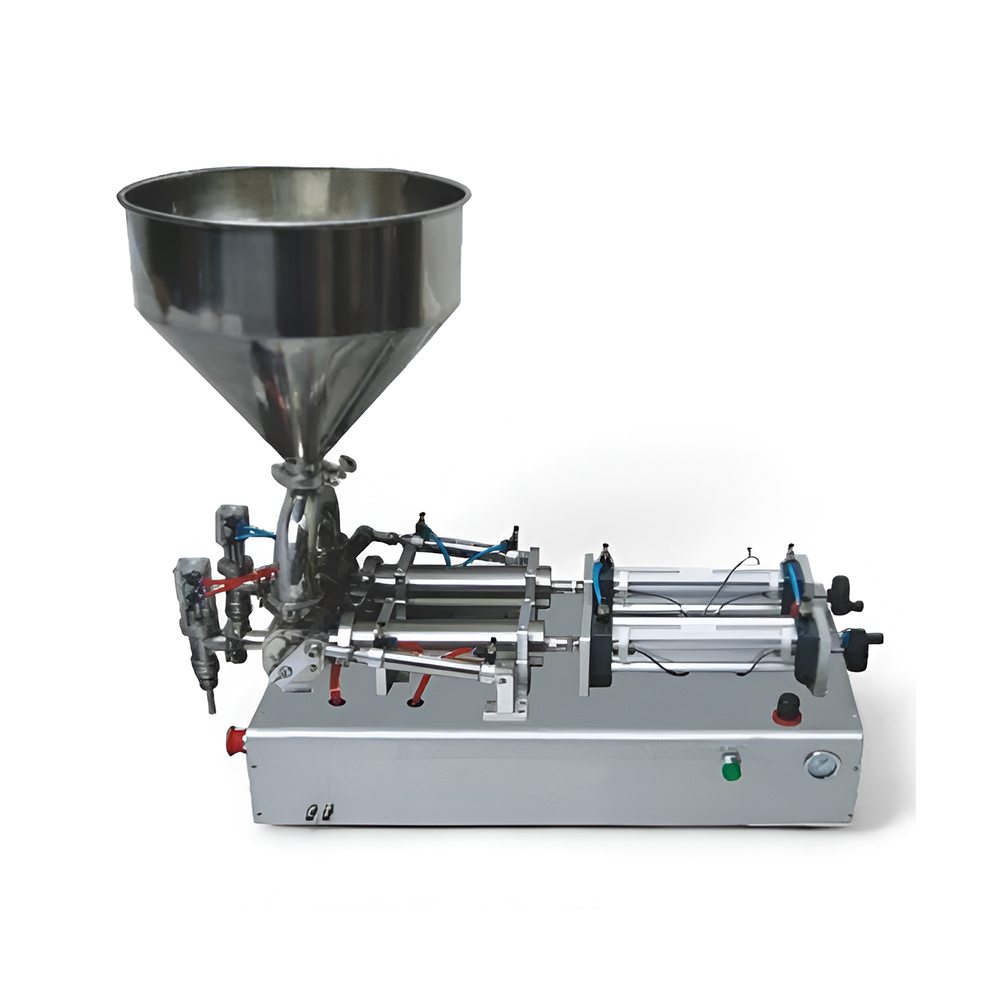

Paste Filler Single & Double Nozzle Pneumatic
Technical Specification:
| Capacity | 2000 Piece/Hr |
| Material | Stainless Steel |
| Usage/Application | Industrial |
| Packaging Type | Pneumatic |
| Power Consumption | 50 Watts |
| Driven Type | Electric |
| Electric Load | 50 Watts |
| Finishing | Stainless Steel |
| Machine Type | Semi Automatic |
| Air Pressure | 0.4~0.6 mpa |
| Voltage | 220/50 HZ |
| Syringe fill range | 10~100 ml, 50~500 ml, 100~1000 ml, 500~5000 ml |

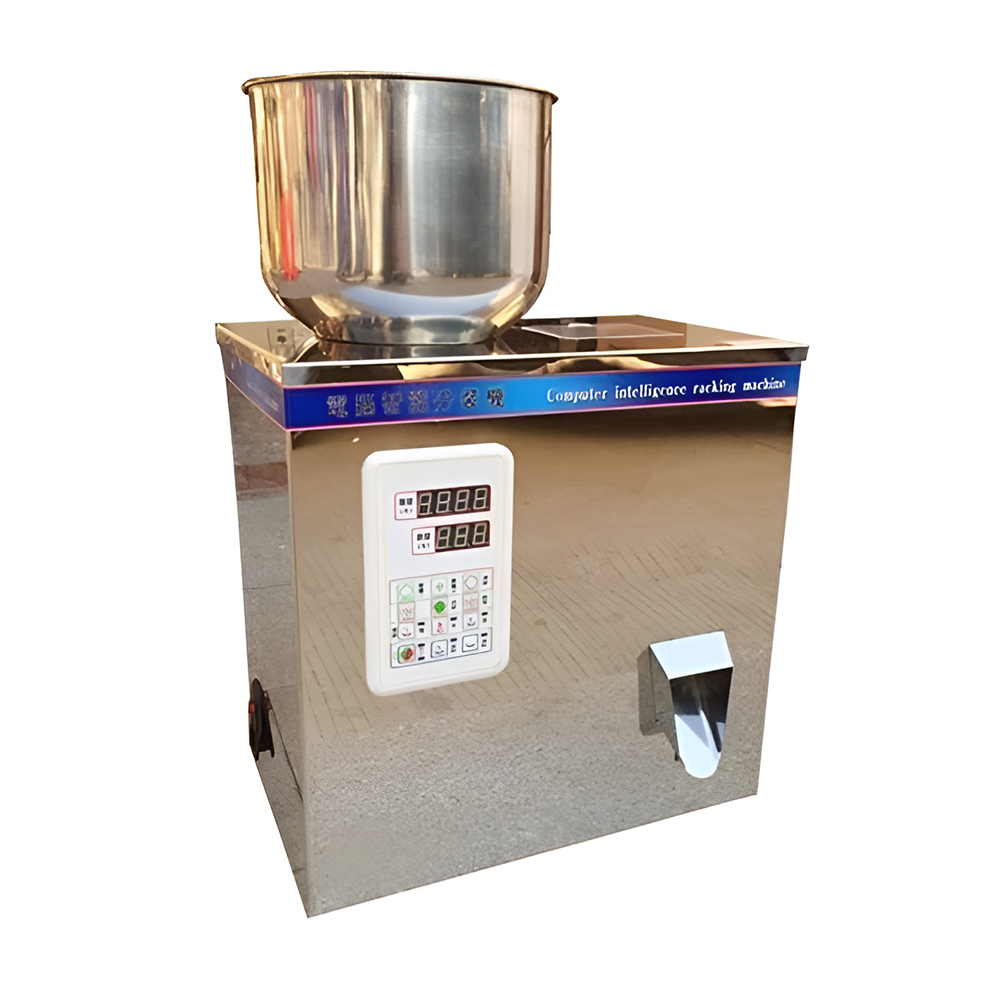

Granule Filling Machine
Technical Specification:
| Minimum Order Quantity | 1 Piece |
| Accuracy | 1-5g |
| Voltage | 220v/110v (optional) |
| Weight | 10 - 50 kg |
| Speed | 8-20bags/minute |
| Range | 100-1000 gm |
| Power Consumption | 200W |
| Hopper Size | 32 x 32 40 cm |
| Machine Overall Size | 38 x 55 x 90 cm |
| Machine Material | Stainless Steel |

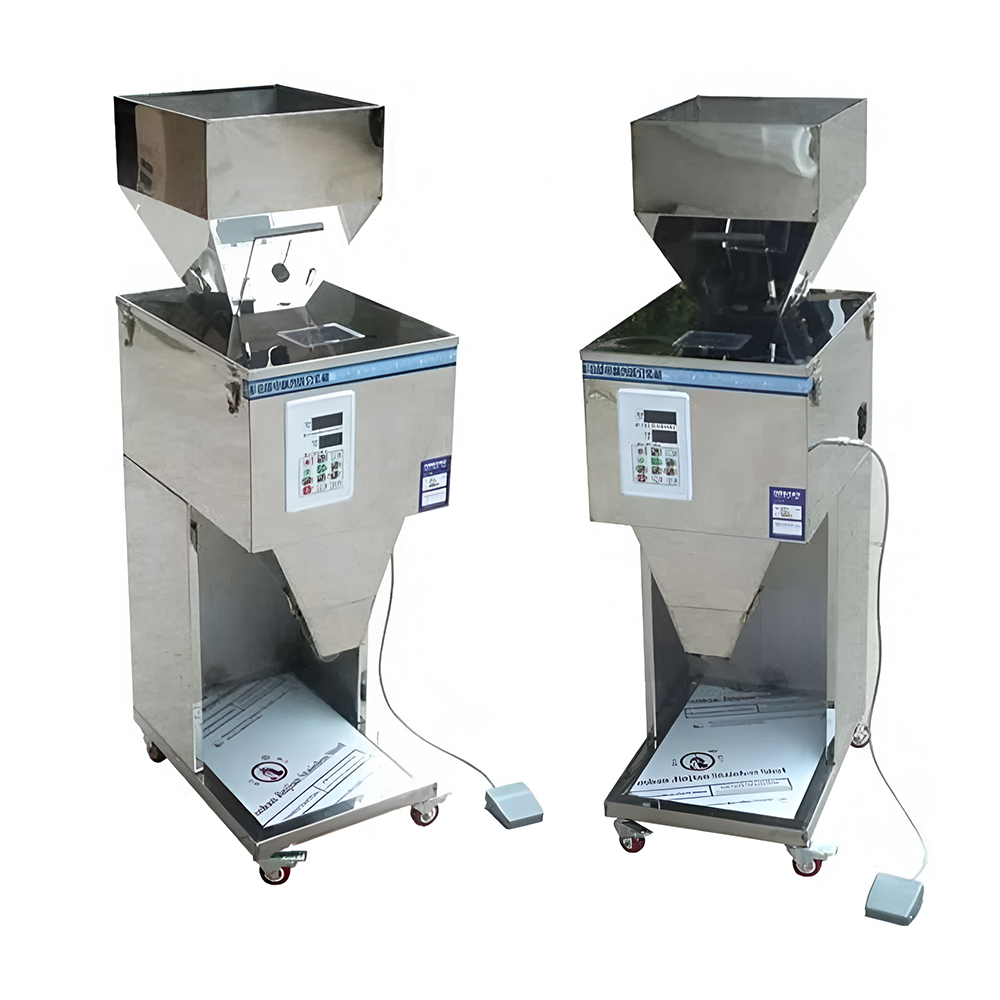

Granule filling machine upto 1 kg
Technical Specification:
| Capacity | 15 packets/min |
| Voltage | 250V |
| Filling Material | Powders |
| Automation Grade | Automatic |
| Packaging Material | Granual , Powder Filler |
| Phase | 3 |
| Driven Type | Electric |
| Packaging Type | Packet |
| Display Type | Digital |
| Material | MS |

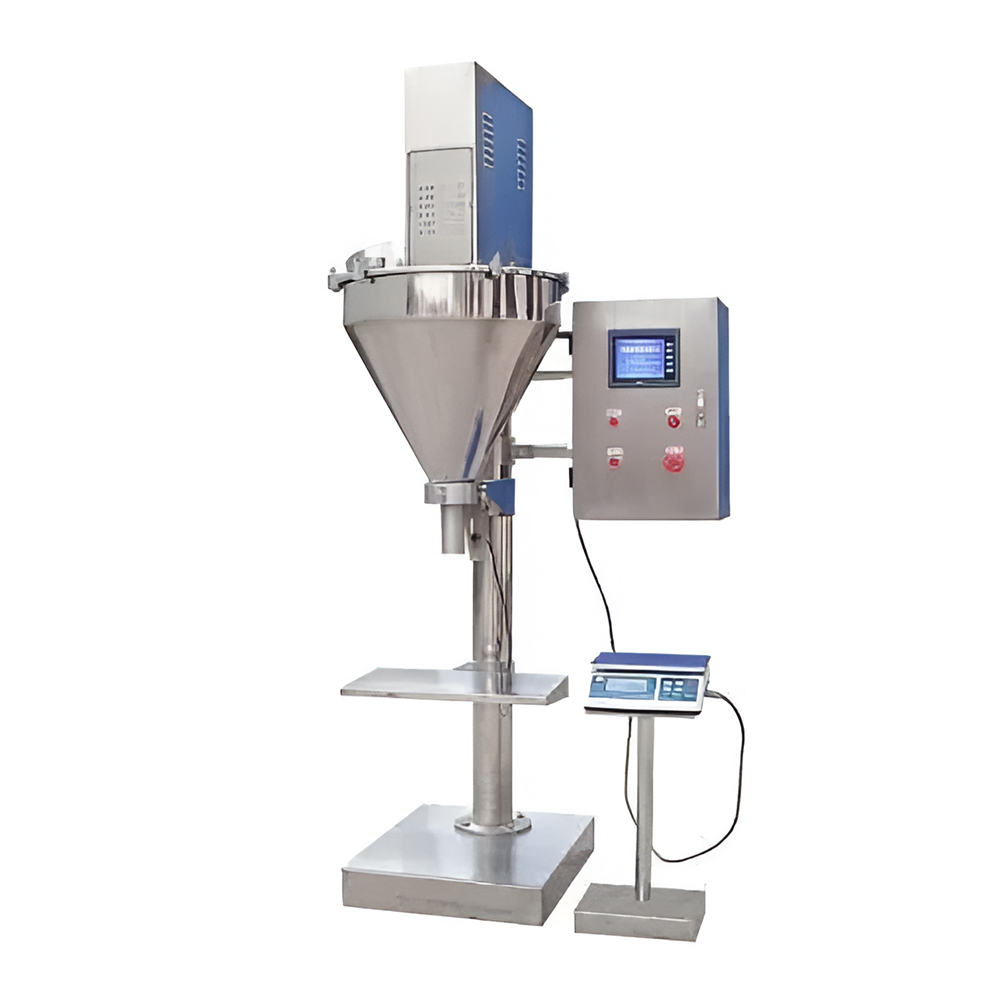

Powder Filling Machine
Technical Specification:
| Material | Stainless Steel |
| Automation Grade | Semi-Automatic |
| Capacity | 10mg to 1kg |
| Conveyor Height | 3 feet |
| Delivery Time | 1-2 week |
| Recommended Order Quantity | 1 |
| Model Name/Number | TMSAF |
| Number Of Filling Heads | 1 |
| Packaging Material | Bottle |
| Usage/Application | Spices |
