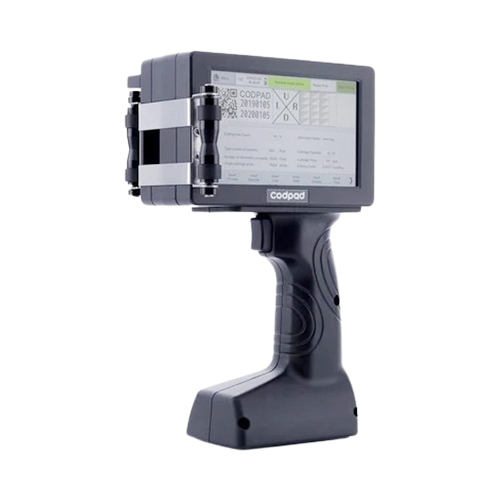

Handheld Inkjet Printer
M6 Handheld Inkjet Printer
Technical Specification:
| Technology | HP TIJ2.5 Thermal Foaming Inkjet Technology |
| Operation System | Linux |
| CPU | Industrial grade CPU |
| Interface | USB |
| Language | Arabic, Chinese, English, French, German, Greek, Italian, Korean, Persian, Portuguese, Russian, Spanish, Thai, Turkish etc. (support customization) |
| Print Distance | 2-5mm |
| Print Resolution | 300dpi Maximum |
| Print Height | 2-12.7mm |
| Print Content | Tesxt, Number, QR Code, Barcode, Image, Date, etc. |
| Print Material | Board, Carton, Stone, Pipe, Cable, Metal, Plastic, Glass, Paper, etc. |
| Battery | 2600mAh @ DC16.8V |
| Power Adapter | Input: 100~240V AC; Output: 16.8V/2A DC |
| Material | ABS+PC |
| Weight | GW 0.82KG |
| Working Condition | Temperature 0-45° C (the best: 20-30° C), humidity 40%-60%Rh |
Handheld Inkjet MRP Printer
Technical Specification:
| Printer Type | Handheld TIJ |
| Printing Quality | 600 dpi |
| Print Color | Monochrome |
| Print Height | 12.7 mm |
| Ink Type | Solvent Based |
| Printing Surface | Wood, Carton, Plastic, Pipe, Cable, Metal |
| Battery Backup | 4 to 8 hr |
| Model Type | Online and Offline |
Handheld Inkjet Printer
Technical Specification:
| Printing Quality | All Quality |
| Print Height | 12.7 mm |
| Model Type | Thermal foamable head TIJ2.5 |
| Print Method | Cardboard / plastic / metal / plate / pipe / stone / cable / electronic components / auto parts / in |
| Capacity | 220mm,140mm,95mm |

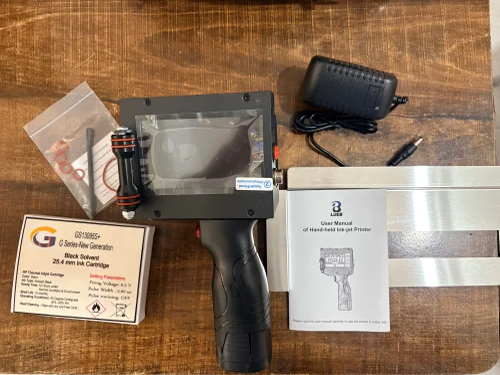

25mm TIJ Handheld Printer
Technical Specification:
| Printer Type | Handheld TIJ |
| Print Color | Black |
| Print Height | 12.8 to 25 mm |
| Ink Type | Solvent Based |
| Printing Surface | Metal |
| Battery Backup | 4 to 8 hr |
| Max Print Speed | Up to 40 m/min |
| Data Interface | USB |
Online TIJ printer
Technical Specification:
| Brand | GPS (Imported) |
| Weight (Approx.) | 23 kg |
| Voltage | AC-220V |
| Frequency | 50Hz |
| Power | 80W |
| Max Loading Capacity | 1 Kg |
| Conveyor Length (L) Size | 1360 mm |
| Conveyor Width (W) Size | 203 mm |
| Conveyor Height (H) Size | 740 mm |
| Size of Carton Box (L x W x H) | 1440 x 303 x 350 mm |
| Weight | 23 Kg (Approx.) |

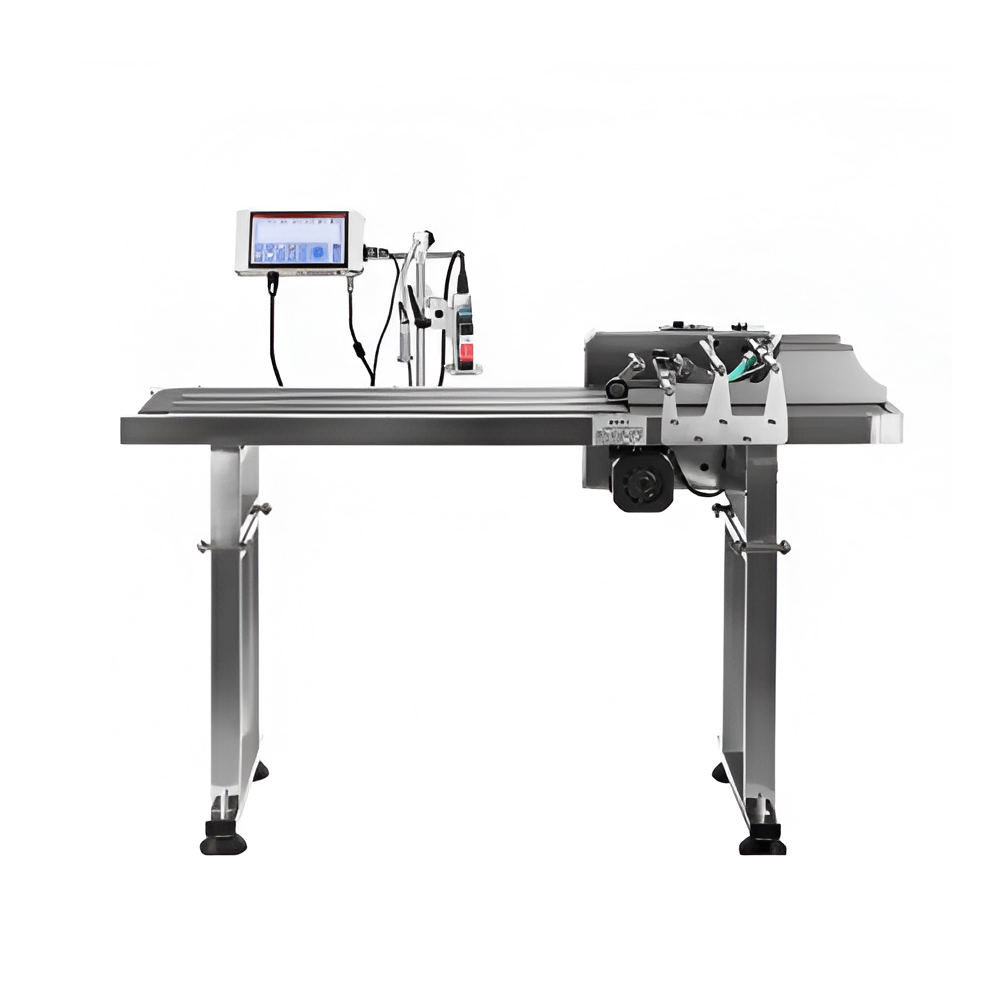

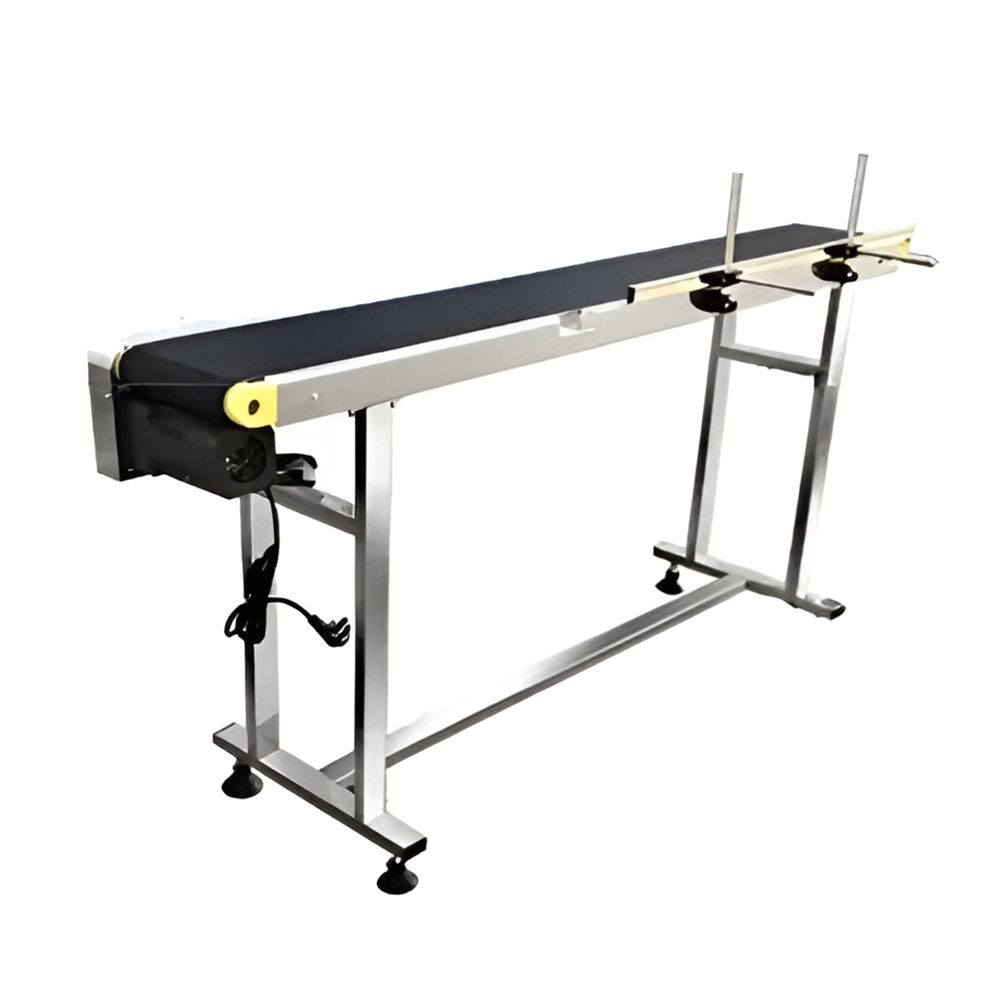

TIJ Printer & conveyor
Technical Specification:
| Model No. | GPS-QC-L2001 |
| Print Speed | 50m/Min |
| Ink | Fast Dry Ink |
| Ink Cartridge | Non-Refillable Ink Cartridge |
| Print Size | 2-12.7mm |
| Print Resolution | 600dpi |
| Language | Multi-Language Include English |
| Ink Color | Black,White, Orange, Red,BIue,Green Print Head One |
| Interface | USB, Encoder, Photocell |
| Transport Package | Paper Carton |
| Specification | 470*360*200mm |

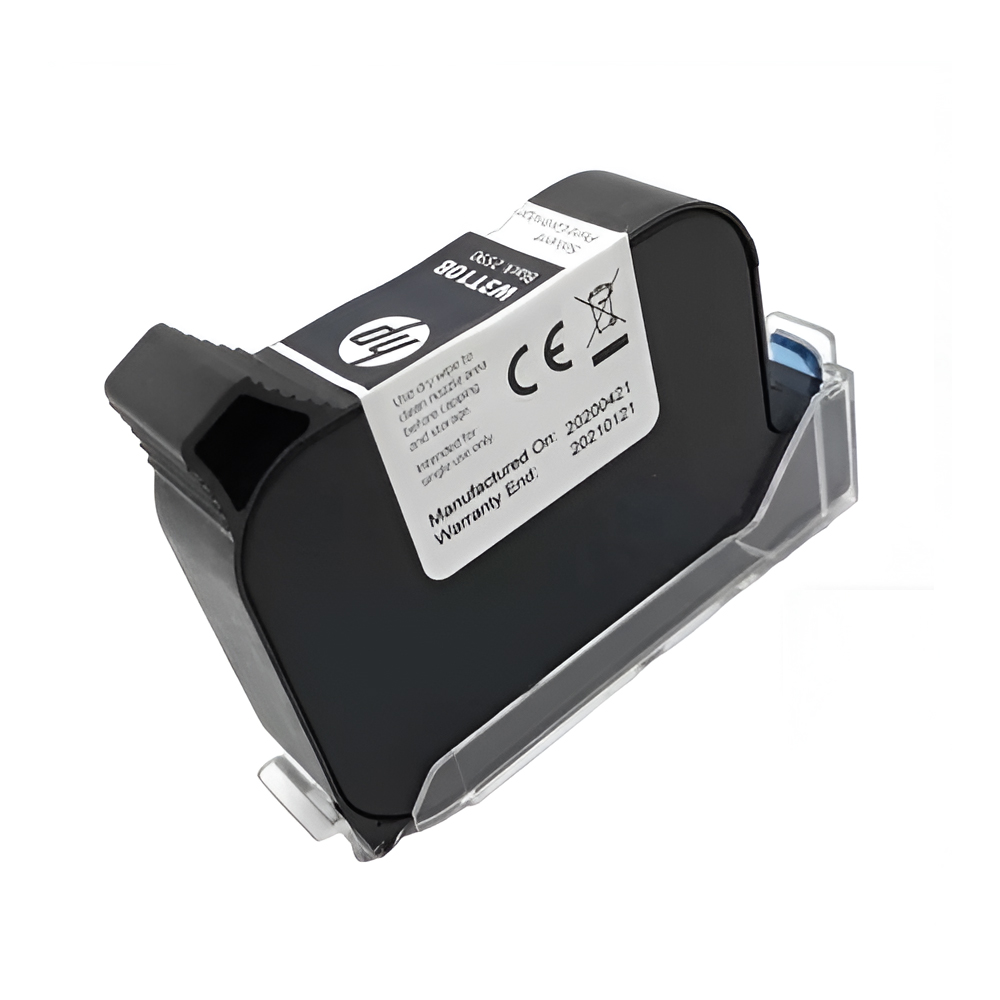

Ink Cartridges
Technical Specification:
| Type of Product | Toner Cartridge |
| Color | Black |
| Material | Plastic |
| Model No | 2590 |
| Supply Type | Cartridge |
| Voltage | 8.7V |
| Retail TP | 3200 |
| Print Swath | 12.7 mm (0.5 in) |
| Throw Distance | Max 5mm |
| Nozzle Count | 300 |
| Width | 1.8 microseconds |
