Continuous Band Sealer

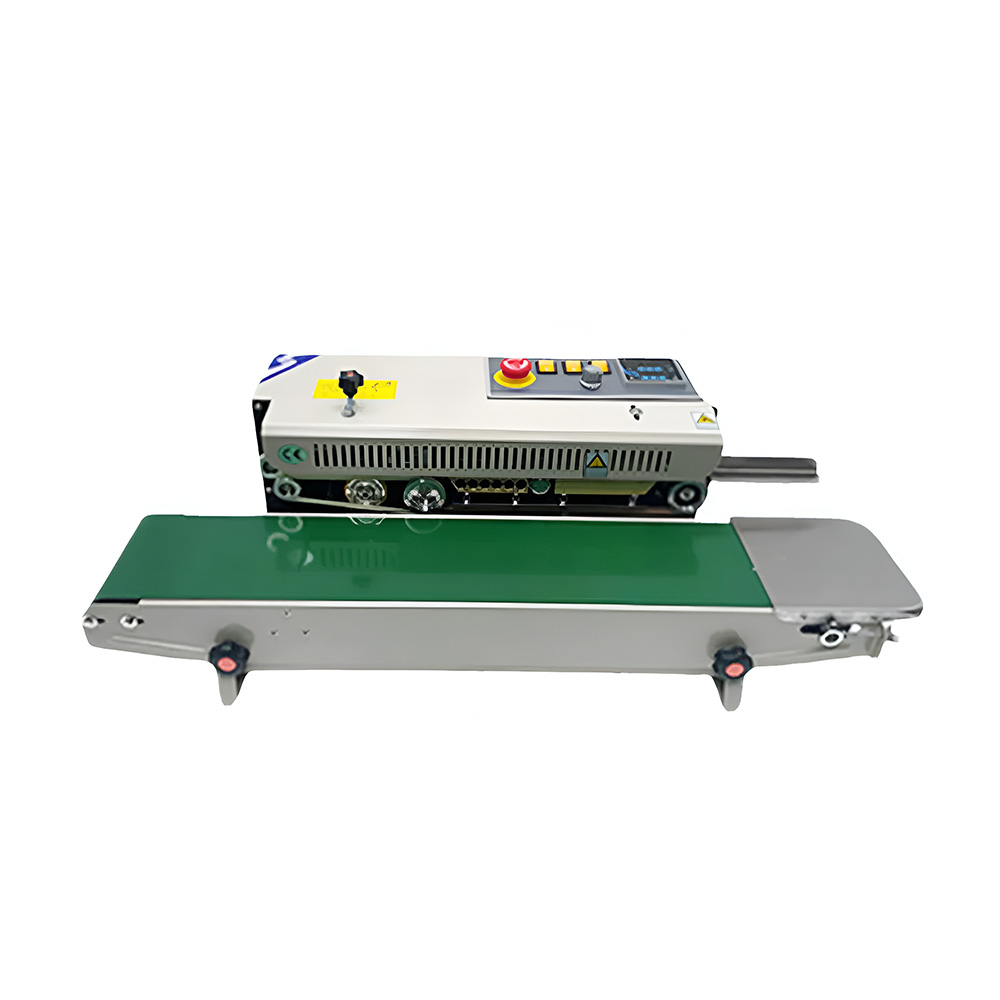

Continuous Band Sealer ( Horizontal) Hualian MS Body
Technical Specification:
| Model | GPS-770I |
| Voltage V(V/Hz) | AC 220/50 |
| Motor Power (w) | 50/100 |
| Sealing Power (W) | 300*2 |
| Speed (m/min) | 0-16 to 0-24 |
| Seal Width (mm) | 10 |
| Distance from sealing center to conveyor (mm) | 15-40 |
| Distance from base plate to interior conveyor (mm) | 60-120 |
| Max. Distance from sealing centre to bag opening (mm) | 21 |
| Temperature range | 0-300 D Cel |
| Conveyor Size (L*W) (mm | ) 844*153 |
| Overall Conveyor load (Kg) | ≤10 |
| External Diamensions (L*W*H) (mm) | 844*375*310 |

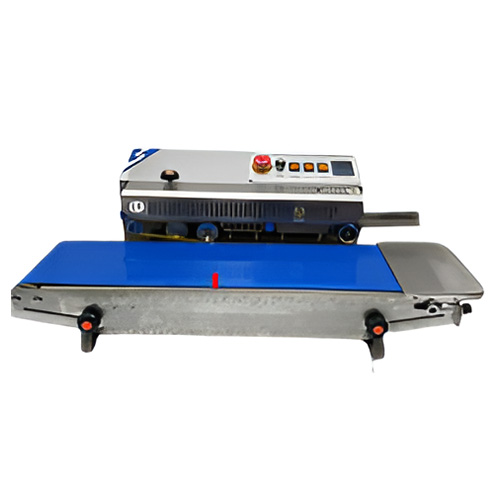

Continuous Band Sealer ( Horizontal) Hualian SS Body
Technical Specification:
| Model | GPS-770I |
| Voltage V(V/Hz) | AC 220/50 |
| Motor Power (w) | 50/100 |
| Sealing Power (W) | 300*2 |
| Speed (m/min) | 0-16 to 0-24 |
| Seal Width (mm) | 10 |
| Distance from sealing center to conveyor (mm) | 15-40 |
| Distance from base plate to interior conveyor (mm) | 60-120 |
| Max. Distance from sealing centre to bag opening (mm) | 21 |
| Temperature range | 0-300 D Cel |
| Conveyor Size (L*W) (mm) | 844*153 |
| Overall Conveyor load (Kg) | ≤10 |
| External Diamensions (L*W*H) (mm) | 844*375*310 |

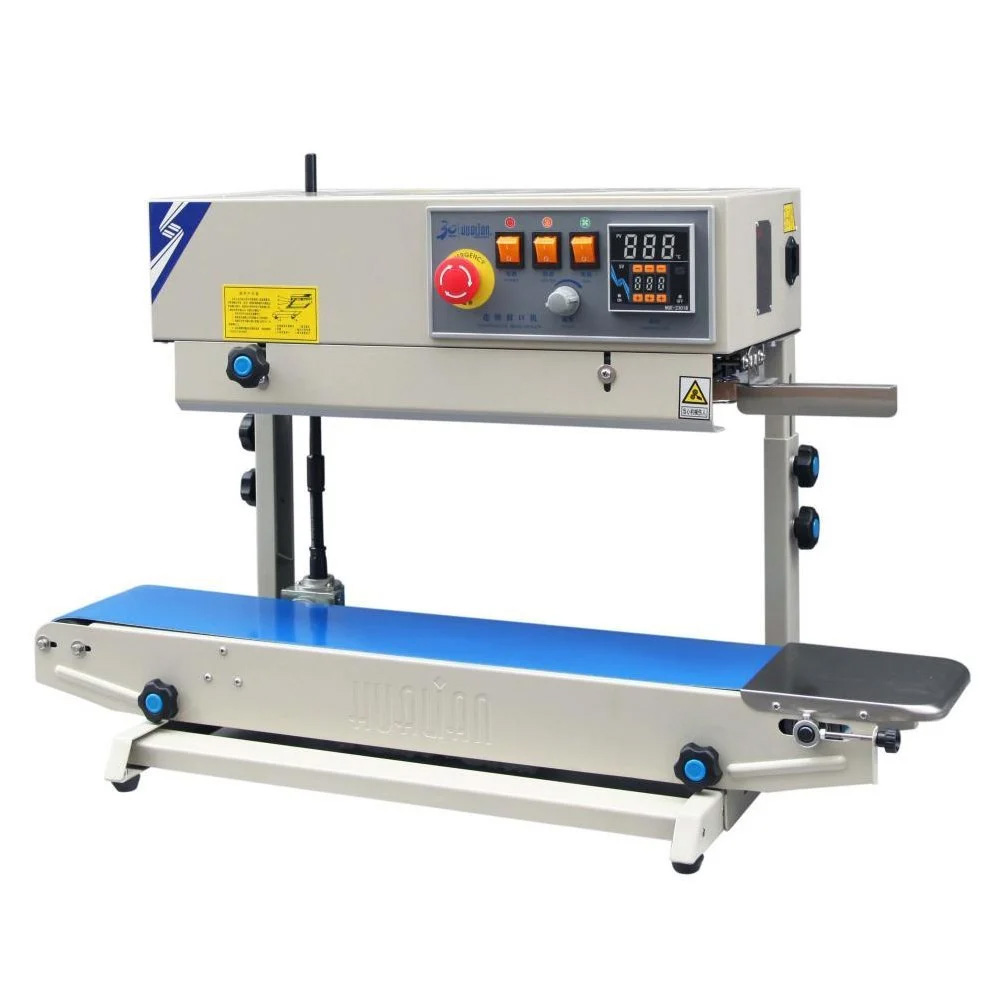

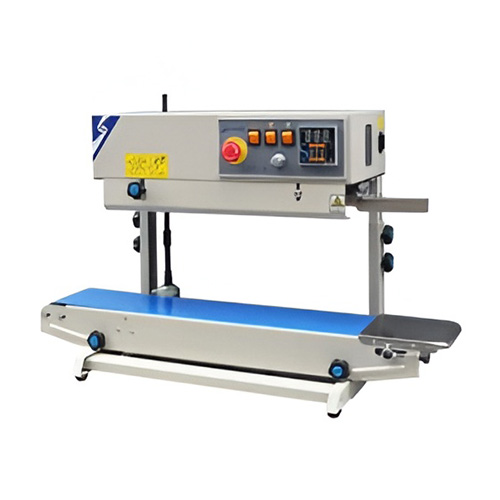

Continuous Band Sealer ( Vertical) Hualian Make (MS Body)
Technical Specification:
| Model | GPS-770II |
| Voltage V(V/Hz) | AC 220/50 |
| Motor Power (w) | 50/100 |
| Sealing Power (W) | 300*2 |
| Speed (m/min) | 0-16 to 0-24 |
| Seal Width (mm) | 10 |
| Distance from sealing center to conveyor (mm) | 150-270 |
| Max. Distance from sealing centre to bag opening (mm) | 21 |
| Temperature range | 0-300 D Cel |
| Conveyor Size (L*W) (mm) | 844*153 |
| Overall Conveyor load (Kg) | ≤10 |
| Net Weight (Kg) | 24.5 |
| External Diamensions (L*W*H) (mm) | 844*390*450 |

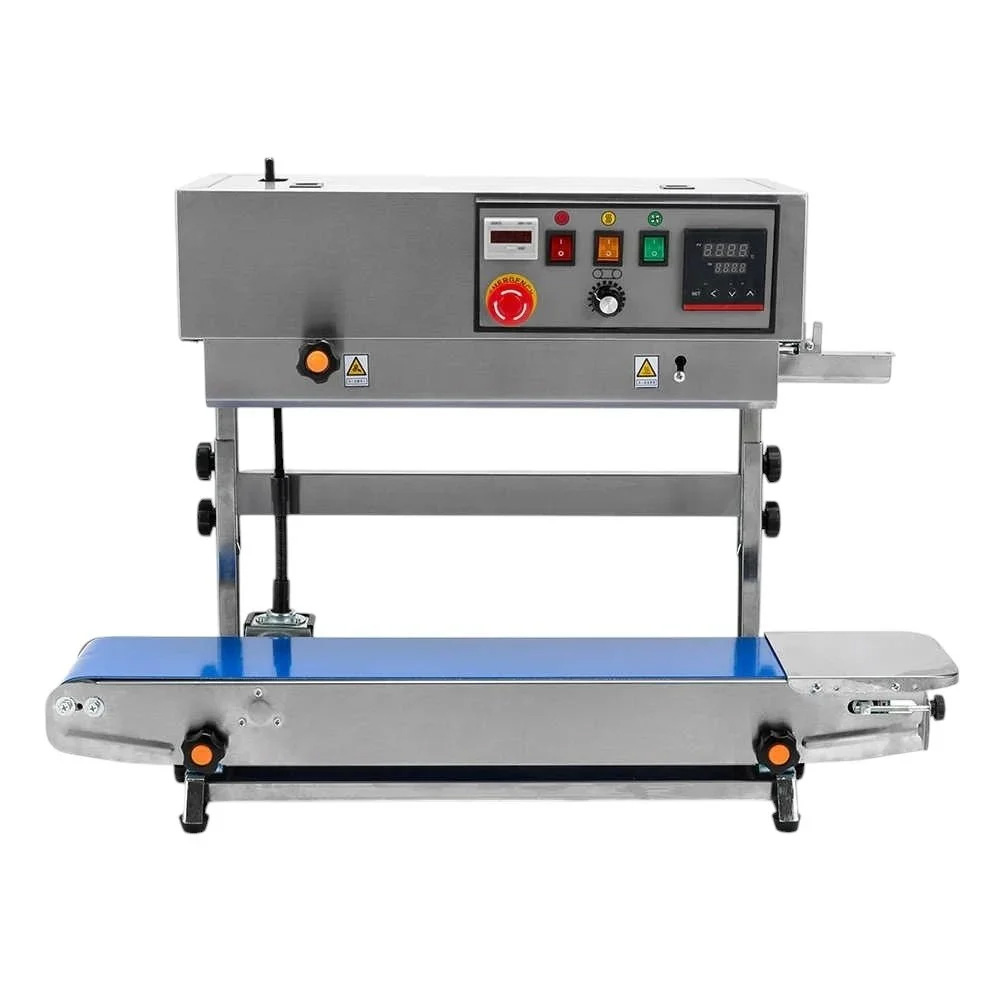

Continuous Band Sealer Vertical Hualian Make (SS Body)
Technical Specification:
| Model | GPS-770II |
| Voltage V(V/Hz) | AC 220/50 |
| Motor Power (w) | 50/100 |
| Sealing Power (W) | 300*2 |
| Speed (m/min) | 0-16 to 0-24 |
| Seal Width (mm) | 10 |
| Distance from sealing center to conveyor (mm) | 150-270 |
| Max. Distance from sealing centre to bag opening (mm) | 21 |
| Temperature range | 0-300 D Cel |
| Conveyor Size (L*W) (mm) | 844*153 |
| Overall Conveyor load (Kg) | ≤10 |
| Net Weight (Kg) | 24.5 |
| External Dimensions (L*W*H) (mm) | 844*390*450 |

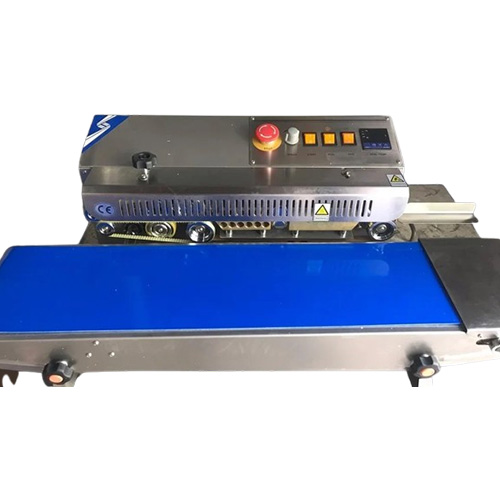

European Standard Continuous Band Sealer
Technical Specification:
| Model | GPS 900 ES |
| Body Type | Heavy |
| Voltage (V/Hz) | 220 / 50 |
| Power (W) | 650 |
| Sealing Speed (m/min.) | 0 - 12 |
| Sealing Width (mm) | 8 ~ 10 |
| Temperature range (Deg.C) | 0 ~ 300 |
| Distance from the sealing center to the conveying table (mm) | 10 ~ 40 |
| Conveyor size (L x W) mm | 840 x 153 |
| Film Thickness (mm) | 0.08 |
| Single Conveyor Loading (Kg) | 1 |
| Overall Conveyor Loading (Kg) | 3 |
| Overall Dimension (LxWxH)mm | 840 x 380 x 320 |
| Net Weight (Kg) | 31 |
Continuous Band Sealer Vertical Hualian Make (MS Body)
Technical Specification:
| Model | GPS-770III |
| Voltage V(V/Hz) | AC 220/50 |
| Motor Power (w) | 50/100 |
| Sealing Power (W) | 300*2 |
| Speed (m/min) | 0-16 to 0-24 |
| Seal Width (mm) | 10 |
| Distance from sealing center to conveyor (mm) | 15-40 |
| Max. Distance from sealing centre to bag opening (mm) | 21 |
| Temperature range | 0-300 D Cel |
| Conveyor Size (L*W) (mm) | 844*153 |
| Overall Conveyor load (Kg) | ≤10 |
| Net Weight (Kg) | 29 |
| External Diamensions (L*W*H) (mm) | 844*555*800 |

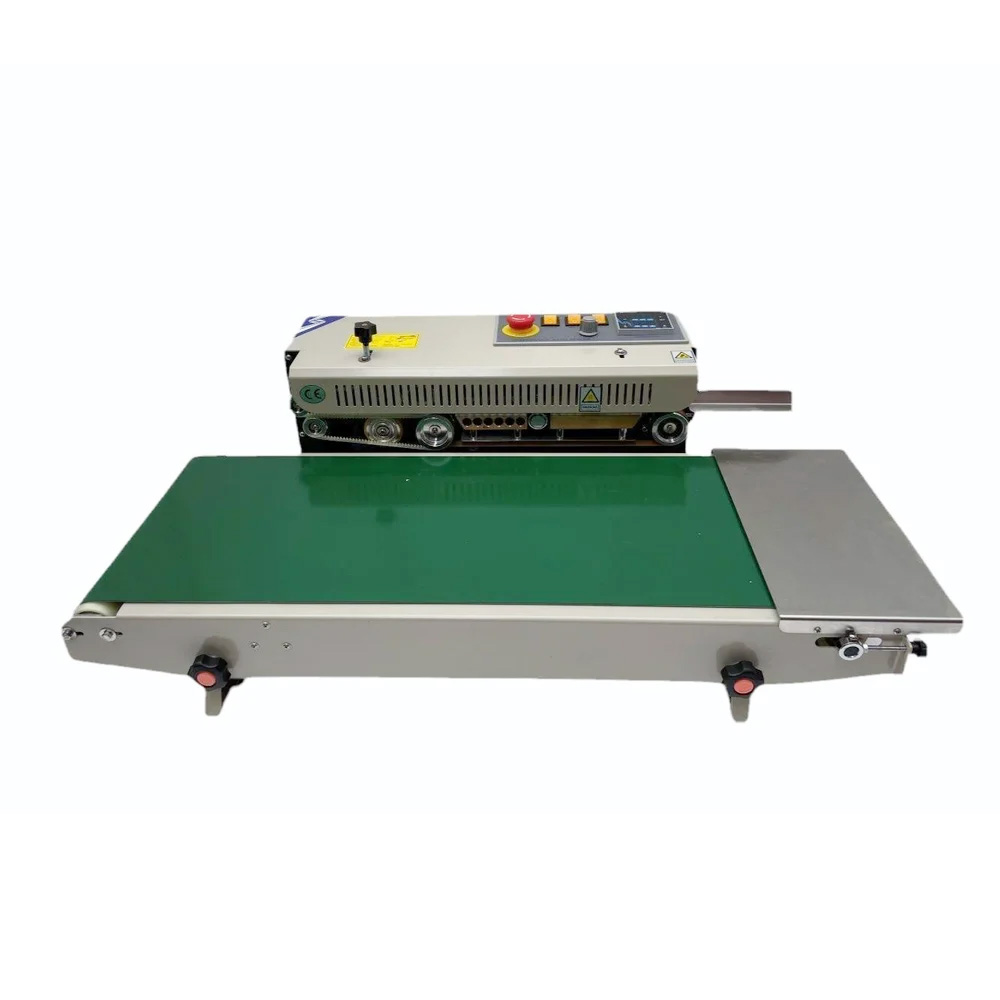

Horizontal Band Sealer With Wide Conveyor 5Kg Hualian
Technical Specification:
| Model | GPS-900 L W |
| Voltage (V/Hz) | 220/50 |
| Power (W) | 750 |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 8~10 |
| Temperature Range (Deg.C) | 0-300 |
| Distance from the Sealing Centre to the Conveyor Table (mm) | 100 mm |
| Conveyor Size (LxW) mm | 840 x 300 |
| Film Thickness (mm) | 0.08 |
| Single Conveyor Loading (Kg) | 1 |
| Overall Conveyor Loading (Kg) | 5 |
| Net Weight (Kg) | 40 |

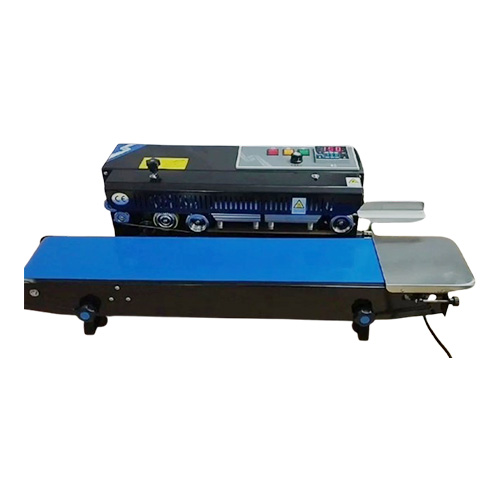

Horizontal Continuous Band Sealer MS Hualian Make (Economic)
Technical Specification:
| Model | GPS 900 H E |
| Voltage (V/Hz) | 220 V / 50 Hz, 110 V / 60 Hz |
| Motor Power (W) | 50 / 100 W |
| Sealing Speed (m/min) | 0~16, 0~24 |
| Sealing Width (mm) | 10 |
| Temperature Range (Deg . C) | 0~300 |
| Distance from base plate to sealing center (mm) | 36 |
| Distance from base plate to interior conveyor (mm) | 60~120 |
| Distance from sealing centre to conveyor table (mm) | 10~40 |
| Overall Conveyor Loading | ≤ 3 kg |
| External Diamension (LxWxH) | 844 x 375 x 320 |
| Net Weight (Kg) | 23 |

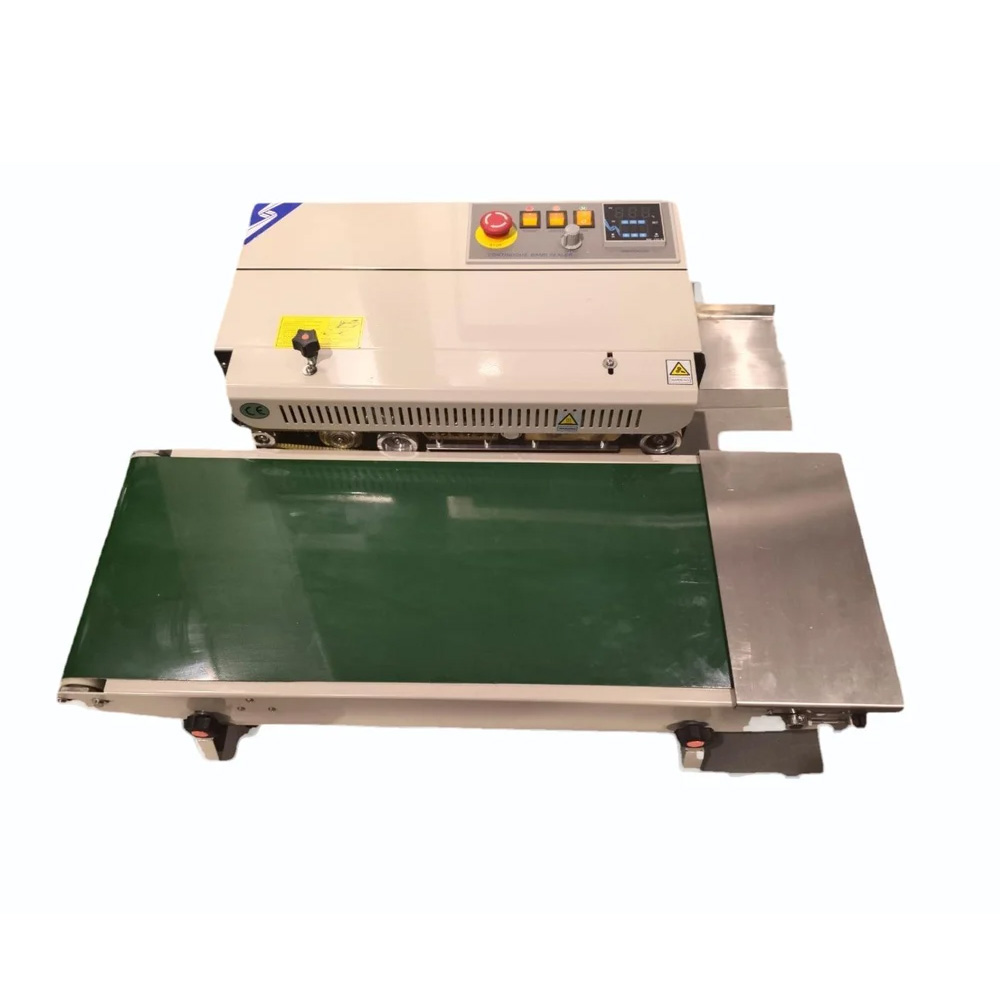

Continuous Band Sealer for Zipper Pouches and Handle Bangs
Technical Specification:
| Model | GPS 900 ZH |
| Voltage (V/Hz) | 220/50 |
| Power (W) | 750 |
| Sealing Speed (m/min.) | 0 - 12 |
| Sealing Width (mm) | 8 ~ 10 |
| Temperature range (Deg.C) | 0 ~ 300 |
| Distance from the sealing center to the conveying table (mm) | 100 |
| Depth of Sealing(mm) | 160 |
| Conveyor size (L x W) mm | 840 x 300 |
| Film Thickness (mm) | 0.08 |
| Overall Conveyor Loading (Kg) | 5 |
| Net Weight (Kg) | 40 |

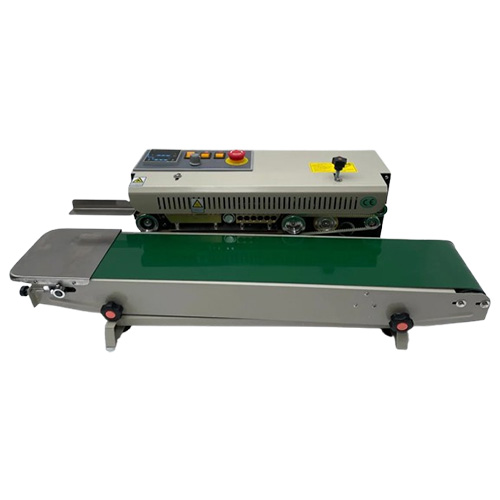

Continuous Band Sealer (MS Body Horizontal) Hualian - Left To Right Conveyor
Technical Specification:
| Model | GPS 900 LTR |
| Voltage (V/Hz) | 220 / 50 |
| Power (W) | 650 |
| Sealing Speed (m/min.) | 0 - 12 |
| Sealing Width (mm) | 8 ~ 10 |
| Temperature range (Deg.C) | 0 ~ 300 |
| Distance from the sealing center to the conveying table (mm) | 10 ~ 40 |
| Conveyor size (L x W) mm | 840 x 153 |
| Film Thickness (mm) | 0.08 |
| Single Conveyor Loading (Kg) | 1 |
| Overall Conveyor Loading (Kg) | 3 |
| Overall Dimension (LxWxH)mm | 840 x 380 x 320 |
| Conveyor Movement | Left to Right |
| Net Weight (Kg) | 28 |

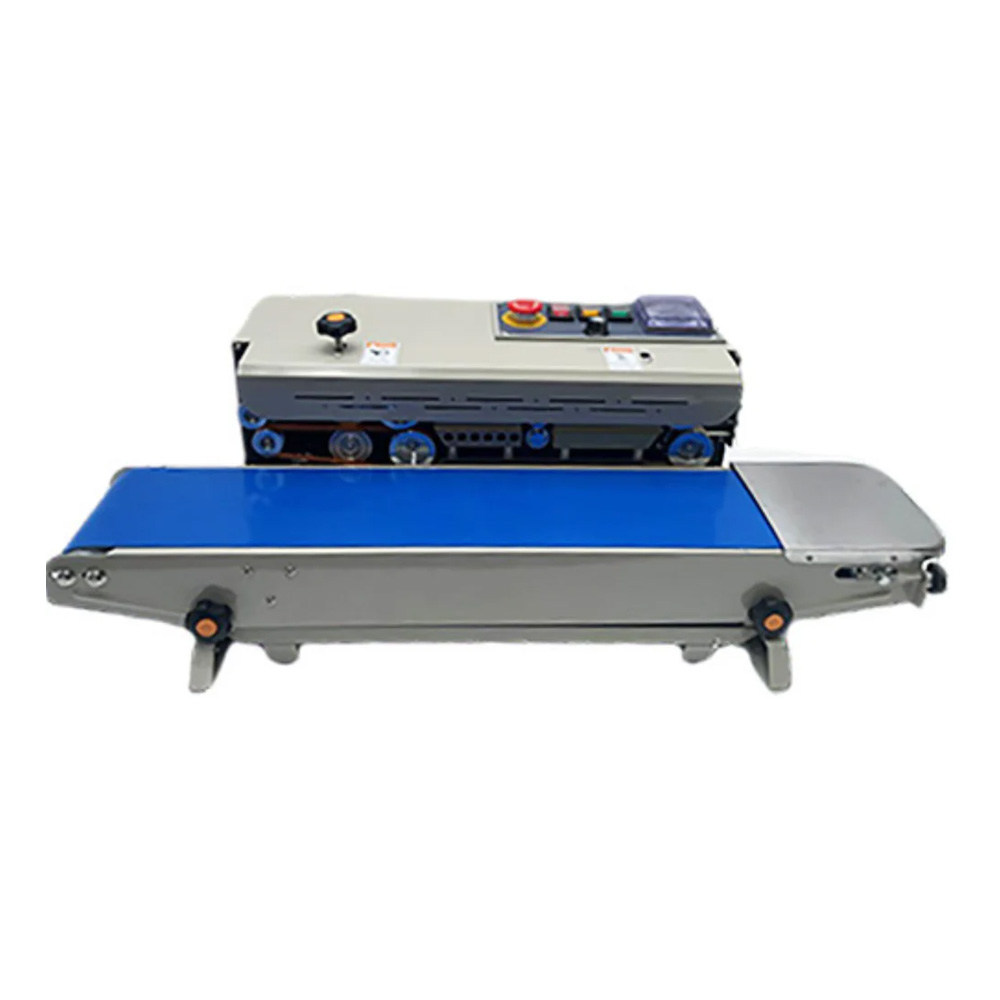

Continuous Band Sealer Dingye Make GPS-900 LD MS
Technical Specification:
| Model | GPS-900 LD MS |
| Voltage (V/Hz) | 220/50 |
| Power (W) | 650 |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 8~10 |
| Temperature Range (Deg.C) | 0-300 |
| Distance from the Sealing Centre to the Conveyor Table (mm) | 10~40 |
| Conveyor Size (LxW) mm | 840 x 153 |
| Film Thickness (mm) | 0.08 |
| Single Conveyor Loading (Kg) | 1 |
| Overall Conveyor Loading (Kg) | 3 |
| Overall Diamension (LxWxH) mm | 840 x 380 x 320 |
| Net Weight (Kg) | 28 |

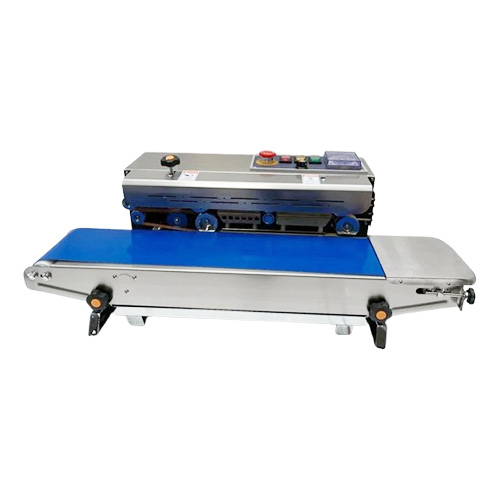

Continuous Horizontal Band Sealer Dingye Make (SS Body)
Technical Specification:
| Model | GPS-900 LD MS |
| Voltage (V/Hz) | 220/50 |
| Power (W) | 650 |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 8~10 |
| Temperature Range (Deg.C) | 0-300 |
| Distance from the Sealing Centre to the Conveyor Table (mm) | 10~40 |
| Conveyor Size (LxW) mm | 840 x 153 |
| Film Thickness (mm) | 0.08 |
| Single Conveyor Loading (Kg) | 1 |
| Overall Conveyor Loading (Kg) | 3 |
| Overall Diamension (LxWxH) mm | 840 x 380 x 320 |
| Net Weight (Kg) | 28 |

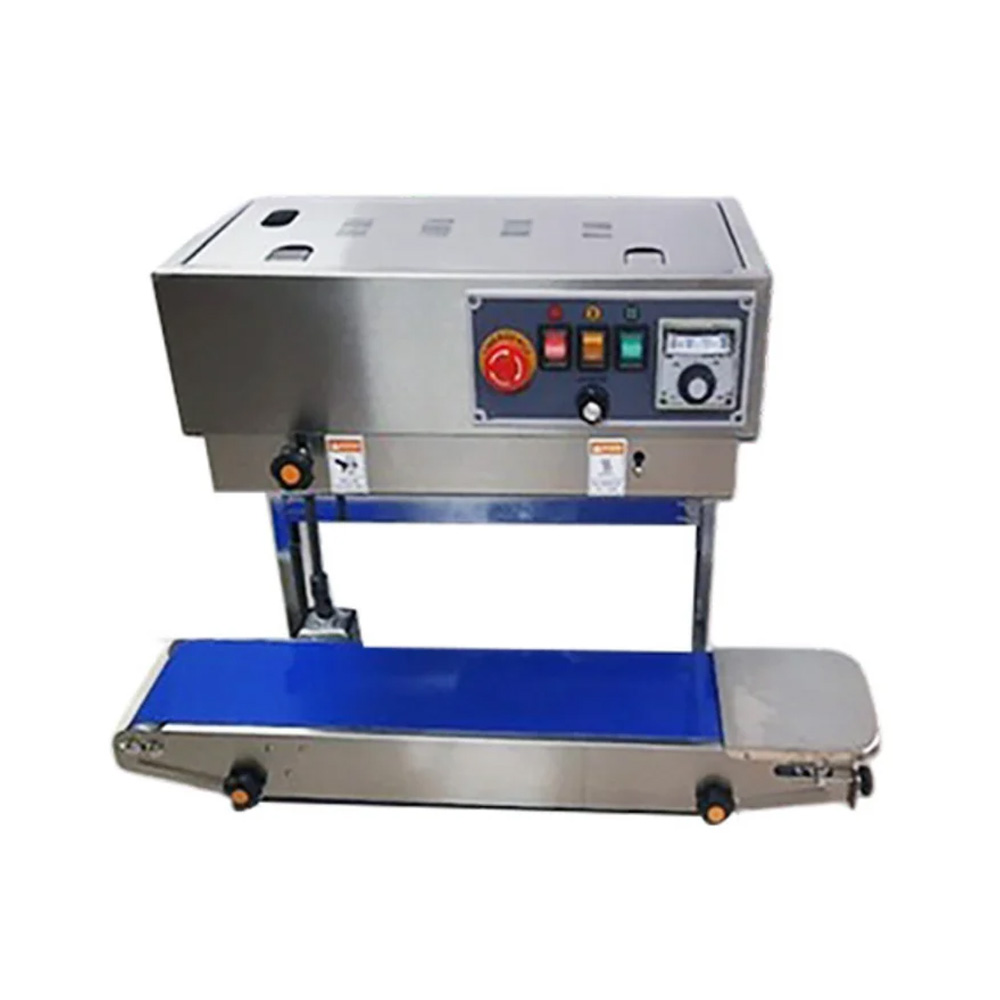

Vertical Band Sealer Dingye Make (FR900V) SS Body
Technical Specification:
| Model | GPS 900V |
| Voltage (V/Hz) | 220/50 |
| Power (w) | 650 |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 8~10 |
| Temperature Range (Deg.C) | 0-300 |
| Distance from the Sealing Centre to the Conveyor Table (mm) | 150-270 |
| Conveyor Size (LxW) (mm) | 840 x 153 |
| Film Thickness (mm) | 0.08 |
| Overall Conveyor Loading (Kg) | 3 |
| Overall Diamensions (LxWxH) (mm) | 840 x 380 x 550 |
| Net Weight (Kg) | 31 |

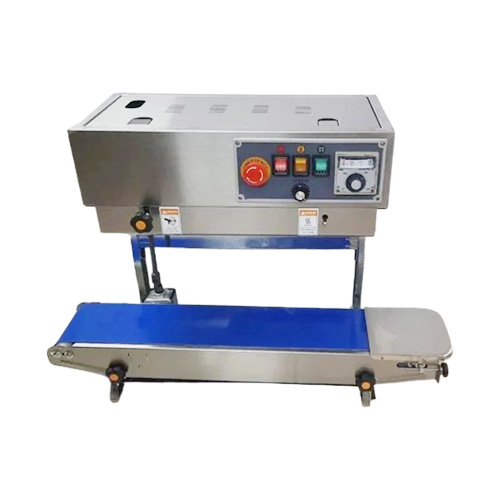

Continuous Vertical Band Sealer (MS Body) Dingye Make
Technical Specification:
| Model | GPS 900V MS |
| Voltage (V/Hz) | 220/50 |
| Power (w) | 650 |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 8~10 |
| Temperature Range (Deg.C) | 0-300 |
| Distance from the Sealing Centre to the Conveyor Table (mm) | 150-270 |
| Conveyor Size (LxW) (mm) | 840 x 153 |
| Film Thickness (mm) | 0.08 |
| Overall Conveyor Loading (Kg) | 3 |
| Overall Diamensions (LxWxH) (mm) | 840 x 380 x 550 |
| Net Weight (Kg) | 31 |

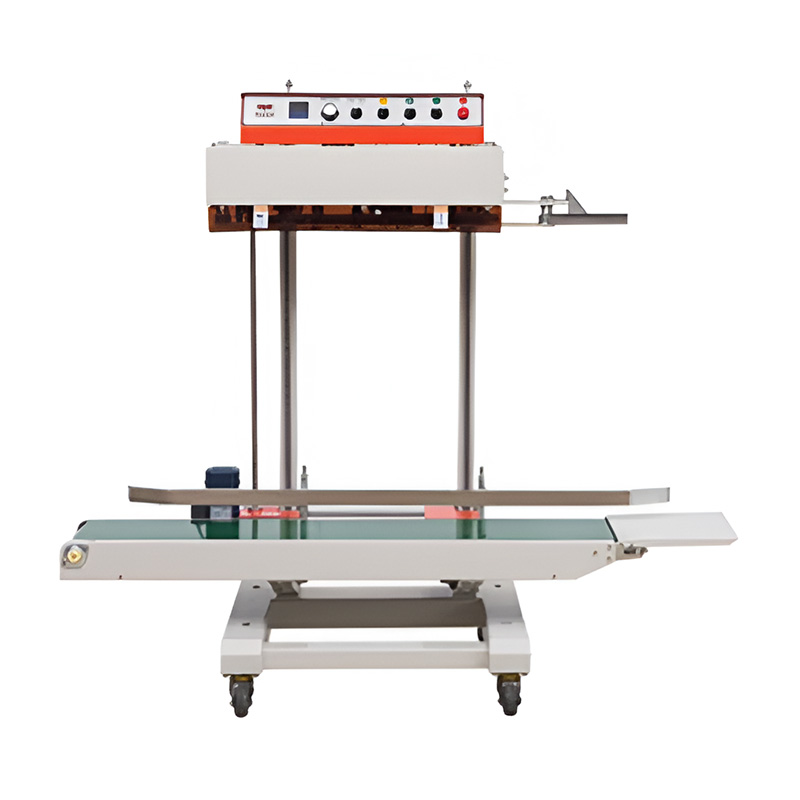

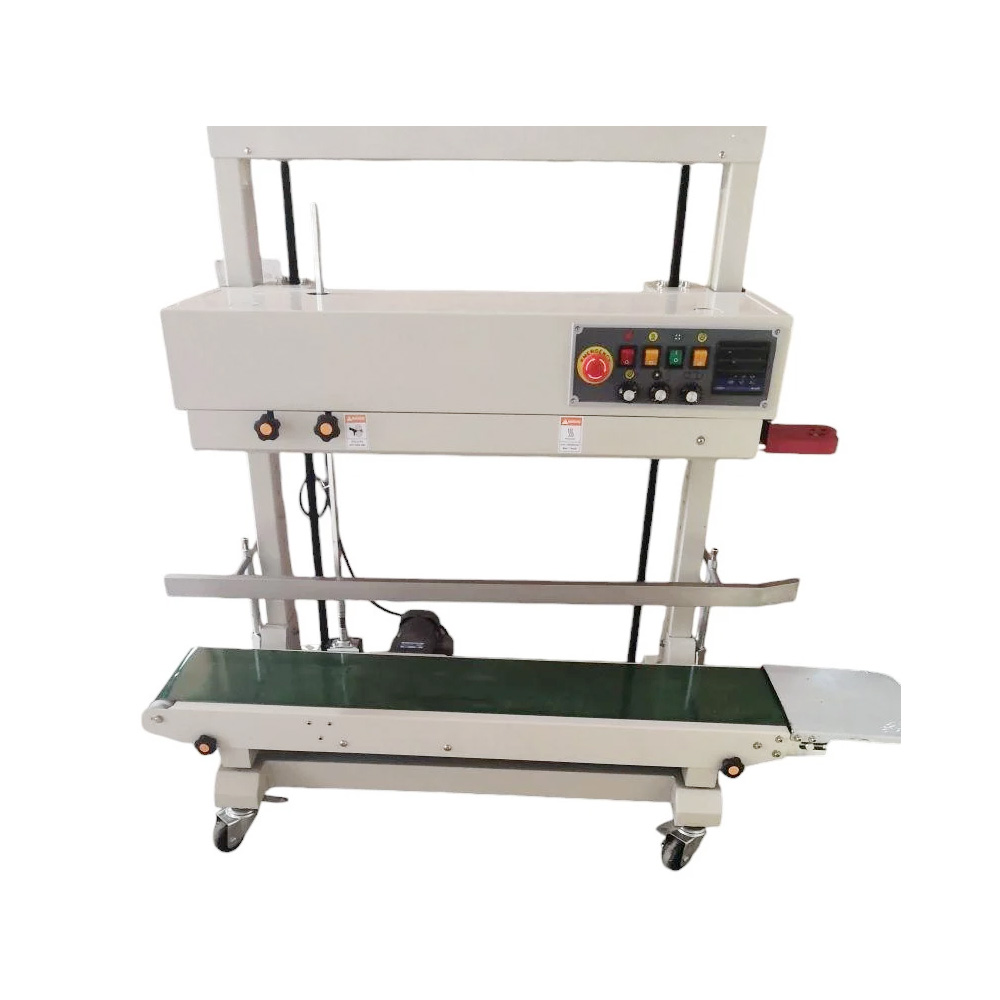

Continuous Band Sealer Heavy Duty (10 Kg)
Technical Specification:
| Model | FR1100V |
| Voltage | 110V/ 50-60Hz |
| Sealing Speed | 0-12 m/min |
| Sealing Width | 6-12 mm |
| Temperature Range | 0-300 Deg . C |
| Max Load | 10 Kg |
| Power | 1235 W |
| Preinting Category | Steel Wheel Printing |
| Overall Diamension (LxWxH) | 1243x580x1228 mm |
| Weight | 70 Kg |

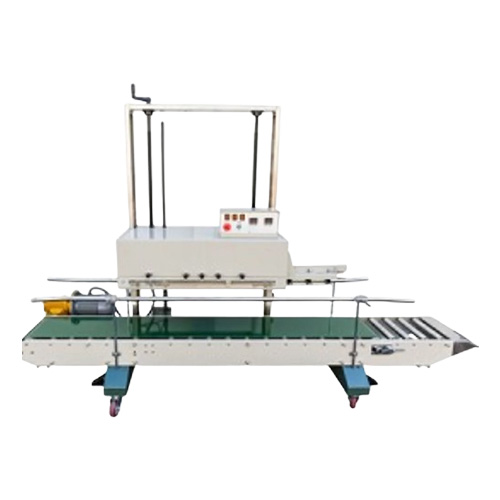

Continuous Band Sealer Heavy Duty 25 Kg
Technical Specification:
| Model | GPS 900 M |
| Voltage (V/Hz) | Transmission Power(50w) - 500w Sealing Power (220W X2) - 500w |
| Power(W) | 110/220V /50-60 Hz |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 6~12 |
| Temperature Range (Deg . C) | 0~300 |
| Film Thickness (mm) | ≤ 0.08 |
| Overall Conveyor Loading | ≤ 3 kg |
| External Diamension (LxWxH) | 557 x 346 x 266 |
| Net Weight (Kg) | 13 |

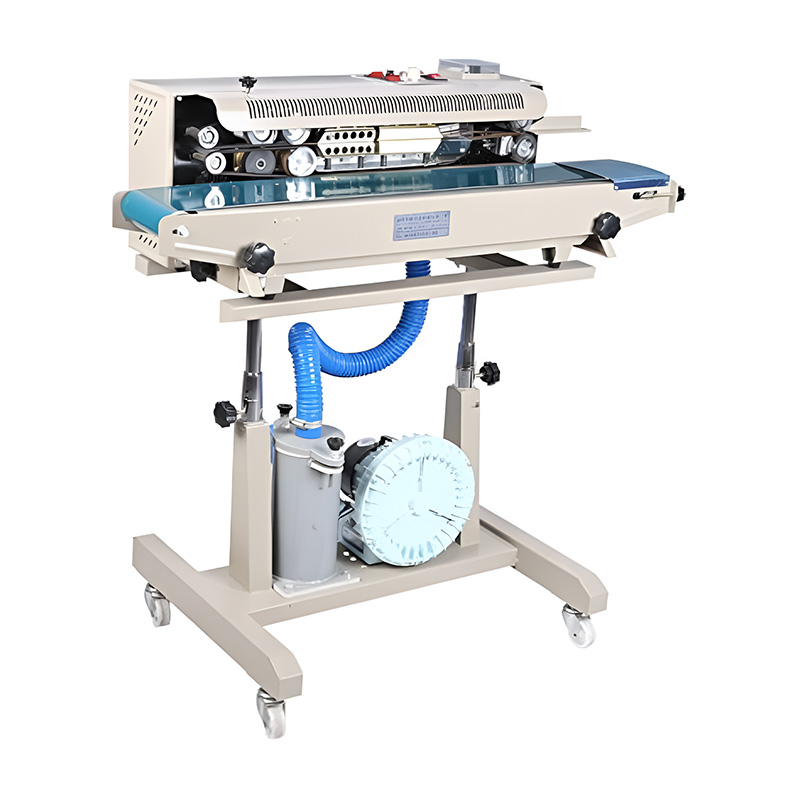

Continuous Band Sealer with Air Flushing (Dingye)
Technical Specification:
| Model | GPS 900AF |
| Voltage (V/Hz) | 220/50 |
| Power (W) | 835 |
| Heat Sealing Power (w) | 40x2 |
| Sealing Speed (m/min) | 0-12 |
| Sealing Width (mm) | 8~10 |
| Temperature range (Deg.c) | 0~300 |
| Distance from the sealingcenter to the conveying table (mm) | 10~40 |
| Conveyor size (L x W)mm | 930x153 |
| Film Thikness (mm) | 0.08 |
| Single Conveyor Loading (Kg) | 1 |
| Overall Conveyor Loading (Kg) | 3 |
| Overall Dimension (LxWxH) mm | 1050 x 560 x 900 |
| Net Weight (Kg) | 62 |

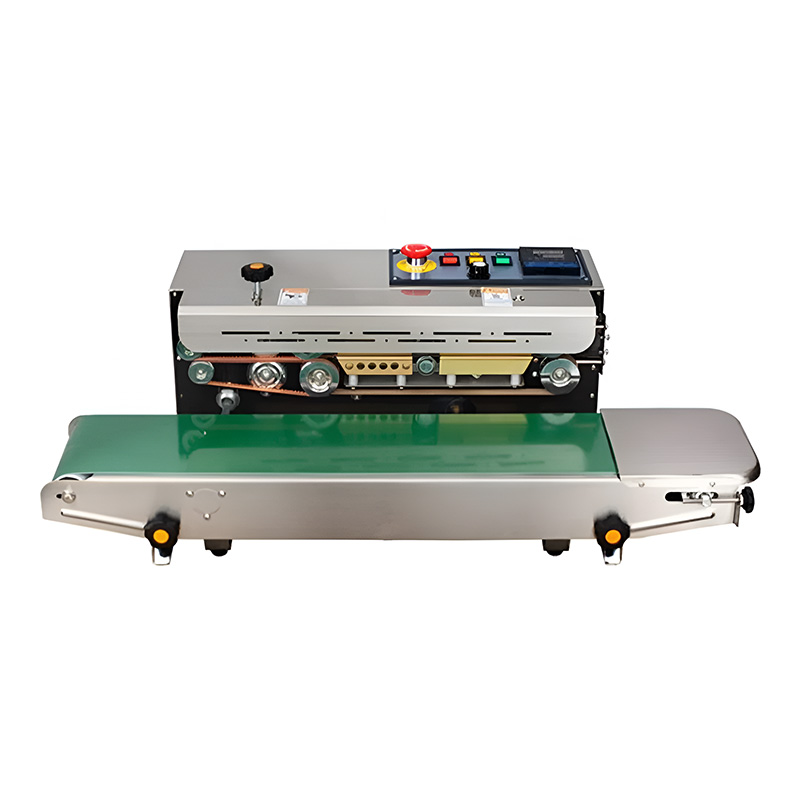

Continuous Horizontal Band Sealer With Nitrogen Flushing Dingye Make
Technical Specification:
| Model | GPS 900V NFM |
| Voltage (V/Hz) | 220/50 |
| Power (w) | 650 |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 8~10 |
| Temperature Range (Deg.C) | 0-300 |
| Distance from the Sealing Centre to the Conveyor Table (mm) | Oct-40 |
| Conveyor Size (LxW) (mm) | 840 x 153 |
| Film Thickness (mm) | 0.08 |
| Single Conveyor Loading Kg | 1 |
| Overall Conveyor Loading (Kg) | 3 |
| Overall Diamensions (LxWxH) (mm) | 840 x 380 x 550 |
| Net Weight (Kg) | 32 |

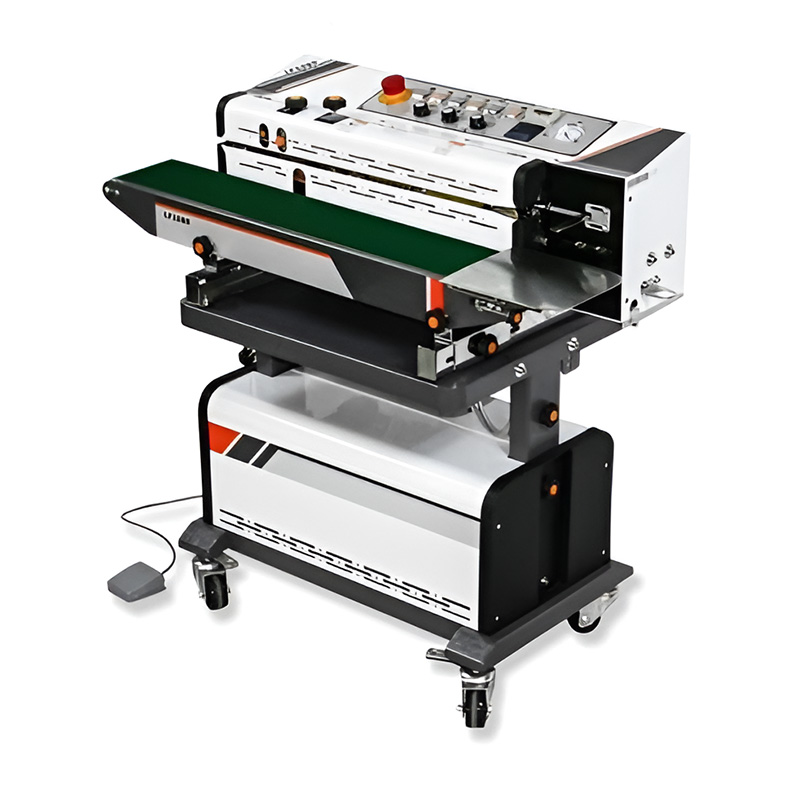

Continuous Band Sealer With Vacuum & Nitrogen flushing (Dingye)
Technical Specification:
| Model | GPS 900 |
| Voltage (V/Hz) | 110/220V/ 50-60Hz |
| Function | Air/Gas Flushing & Bag Sealing |
| Power | Total 875W |
| Motor Power | 50W |
| Fan | 15W |
| Sealing Power | 220Wx2 |
| Vacuum Pump | 370W |
| Sealing Speed (m/min.) | 0~12 |
| Sealing Width(mm) | 6~12 |
| Temperature Range (Deg°C) | 0~300 |
| Max. Thickness of Single Layer Film(mm) | ≤0.08 |
| Max. Loading of Conveyor(kg) | ≤3 |
| Machine Size (L x W x H)(mm) | 1025 x 450 x (940 + 140 adjustable) |
| Net Weight(kg) | 85 |

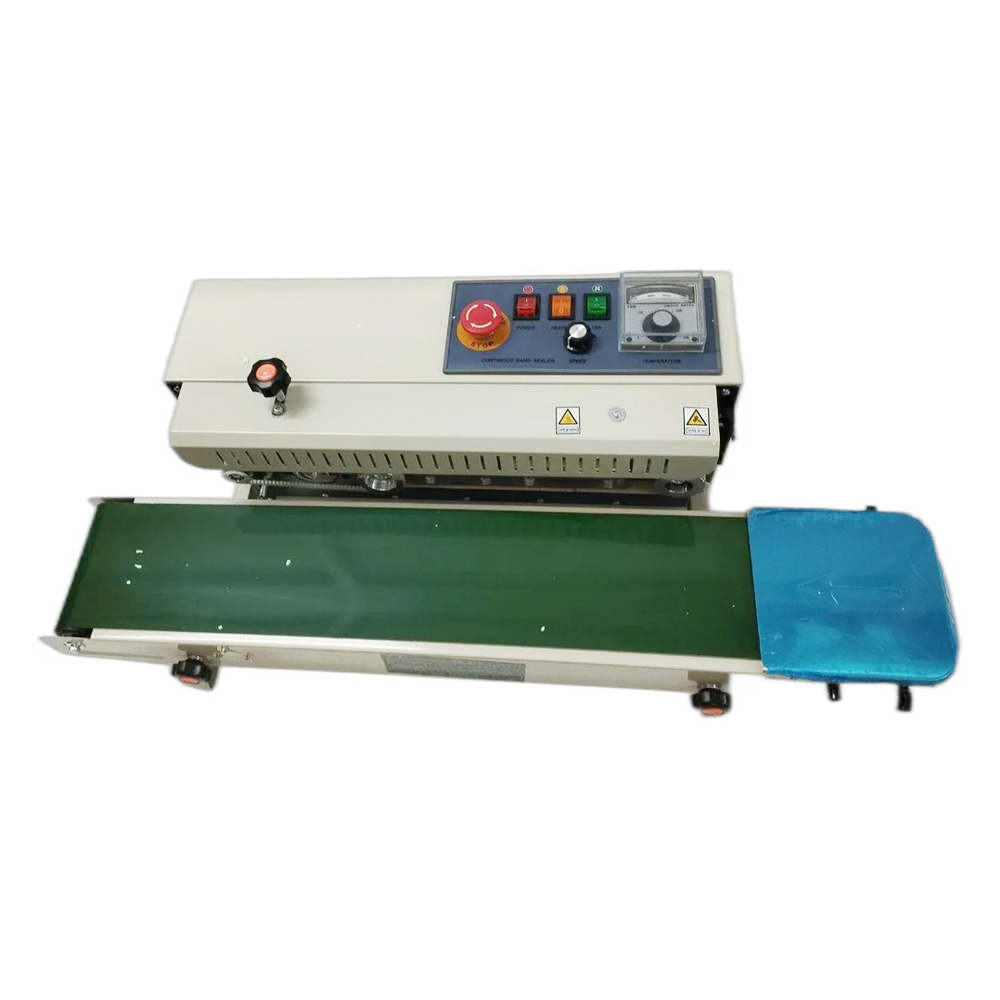

Continuous Horizontal Band Sealer T-Series (MS Body)
Technical Specification:
| Model | GPS-900 TMS H |
| Voltage (V/Hz) | 220/50 |
| Power (W) | 650 |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 8~10 |
| Temperature Range (Deg.C) | 0-300 |
| Distance from the Sealing Centre to the Conveyor Table (mm) | 10~40 |
| Conveyor Size (LxW) mm | 840 x 153 |
| Film Thickness (mm) | 0.08 |
| Single Conveyor Loading (Kg) | 1 |
| Overall Conveyor Loading (Kg) | 3 |
| Overall Diamension (LxWxH) mm | 840 x 380 x 320 |
| Net Weight (Kg) | 27 |

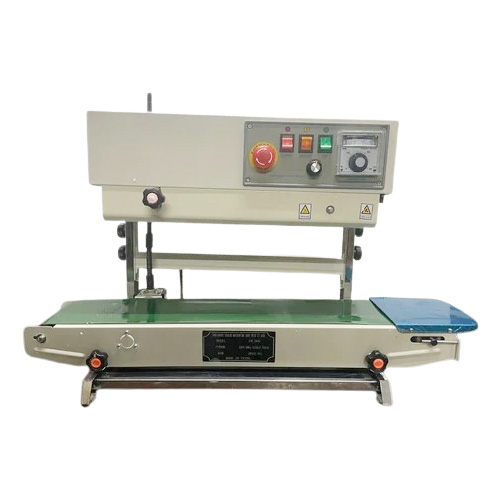

Continuous Vertical Band Sealer T-Series (MS Body)
Technical Specification:
| Model | GPS 900 TMS V |
| Voltage (V/Hz) | 220/50 |
| Power (w) | 650 |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 8~10 |
| Temperature Range (Deg.C) | 0-300 |
| Distance from the Sealing Centre to the Conveyor Table (mm) | 150-270 |
| Conveyor Size (LxW) (mm) | 840 x 153 |
| Film Thickness (mm) | 0.08 |
| Overall Conveyor Loading (Kg) | 3 |
| Overall Diamensions (LxWxH) (mm) | 840 x 380 x 550 |
| Net Weight (Kg) | 31 |

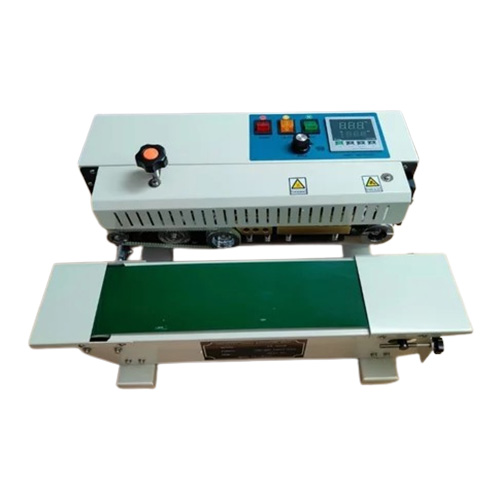

Continuous Mini Band Sealer Machine
Technical Specification:
| Model | GPS 900 M |
| Voltage (V/Hz) | Transmission Power(50w) - 500w Sealing Power (220W X2) - 500w |
| Power(W) | 110/220V /50-60 Hz |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 6~12 |
| Temperature Range (Deg . C) | 0~300 |
| Film Thickness (mm) | ≤ 0.08 |
| Overall Conveyor Loading | ≤ 3 kg |
| External Diamension (LxWxH) | 557 x 346 x 266 |
| Net Weight (Kg) | 13 |
Continuous Band Sealer Heavy Duty 15kg
Technical Specification:
| Model | GPS 900 M |
| Voltage (V/Hz) | Transmission Power(50w) - 500w Sealing Power (220W X2) - 500w |
| Power(W) | 110/220V /50-60 Hz |
| Sealing Speed (m/min) | 0~12 |
| Sealing Width (mm) | 6~12 |
| Temperature Range (Deg . C) | 0~300 |
| Film Thickness (mm) | ≤ 0.08 |
| Overall Conveyor Loading | ≤ 3 kg |
| External Diamension (LxWxH) | 557 x 346 x 266 |
| Net Weight (Kg) | 13 |
Mini roller sealing Machine Metal Body
Technical Specification:
| Model | GPS - 50 |
| Machine Dimension (L*W*H) (MM) | 285 * 188 * 188 |
| Carton Dimension (L*W*H) (MM) | 285 * 268 * 268 |
| Net Weight | 3.8 Kg |
| Gross Weight | 4.4 Kg |
| Voltage | AC220V/110V |
| Rated Power | 80W |
| Rated Frequency | 60/50HZ |
| Sealing Temp | 80 - 200 ºC |
| Power Connection | Y |
| Speed | 6M/MIN MAX |
| Type Of Electric Shock Protection | TYPE I |
