Carton Sealing Machine

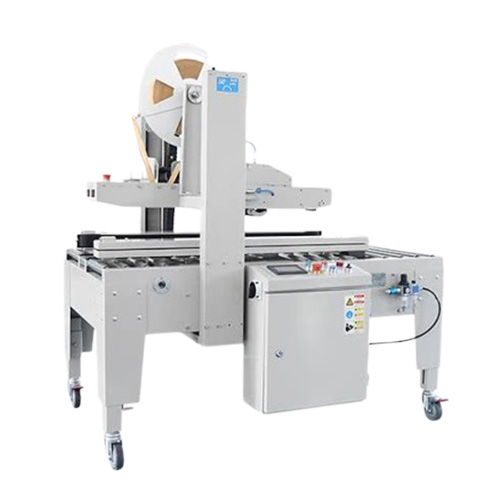

Carton Case sealer packing machine GPS-6050 Hualian Make
Technical Specification:
| Model | GPS - FXW 6050 |
| Voltage (V/Hz) | AC 220/50 110/60 1P |
| Power (W) | 700 |
| Max. Carton Size ( LxWxH)(mm) | Unlimitedx500x600 |
| Min. Carton Size ( LxWxH)(mm) | 170x170x130 |
| Speed (m/min) | 20 |
| Suitable Tape | Water activity kraft paper (The marking machine uses glue on the inside of the tape, and needs to be customized when glue is on the outside) |
| Tape Width (mm) | 48-75 |
| Length of the Overlap on Sides (mm) | 48-90 |
| Max. Diameter of the Tape (mm) | 420 |
| Table Height (mm) | 700-820 |
| External Dimensions ( LxWxH)(mm) | 1510x1115x(1970-2090) |
| Net Weight (kg) | 230 |

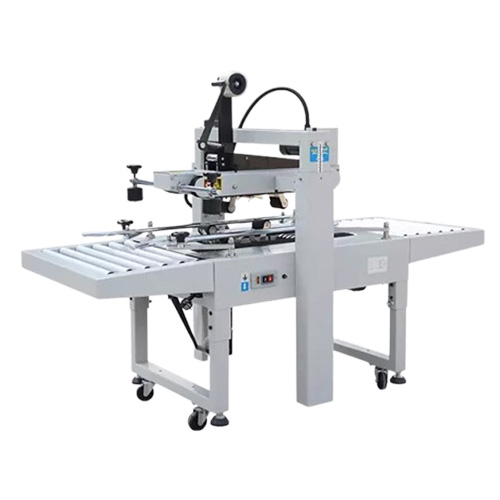

Semi-Automatic Adhesive Tape Carton Sealer for Top & Bottom GPS - FXJ-6050
Technical Specification:
| Model | GPS - FXJ 6050 |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 200 |
| Max. Carton Size (WxH)(mm) | ∞x500x600 |
| Min. Carton Size (WxH)(mm) | 150x180x130 |
| Speed (m/min) | 20 m/min (25-45 cartons/min) |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 630-780 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (LxWx H)(mm) | 905(with bracket 1755 )x800x(960-1650) |
| Net Weight (kg) | 150 |
| Max. Conveyor Load(kg) | 30 |

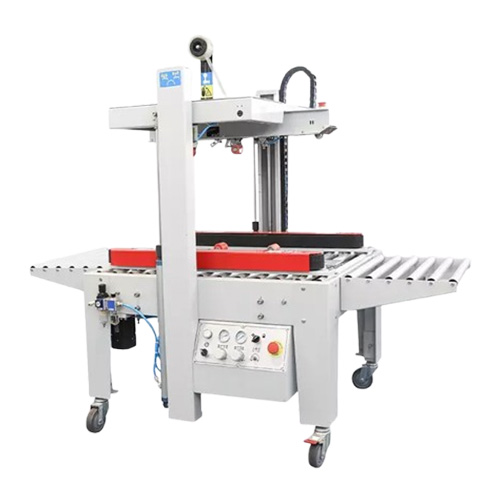

Random Automatic Pneumatic Carton Sealing Machine FXJ-5050QS
Technical Specification:
| Model | GPS - FXJ 5050QS |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 200 |
| Gas Pressure (Mpa) | 0.4~0.6 |
| Max. Carton Size (LxWxH) (mm) | ∞X500X500 |
| Min. Carton Size (LxWxH) (mm) | 130X80X90 |
| Taping Speed (m/min) | 20( Fixed mode:25-45 cartons / min ; Automatic mode:10-25 cartons / min ) |
| Adhesive Tape Used | BOPP Water-free Adhesive Tape PVC Adhesive Tape |
| Height of Table (mm) | 580-780 |
| Width of Adhesive Tape (mm) | 36,48 |
| External Dimensions (LxWxH) (mm) | 1800X960X(1330-1530) |
| Net Weight (kg) | 194 |
| Max. Conveyor Load(kg) | 30 |

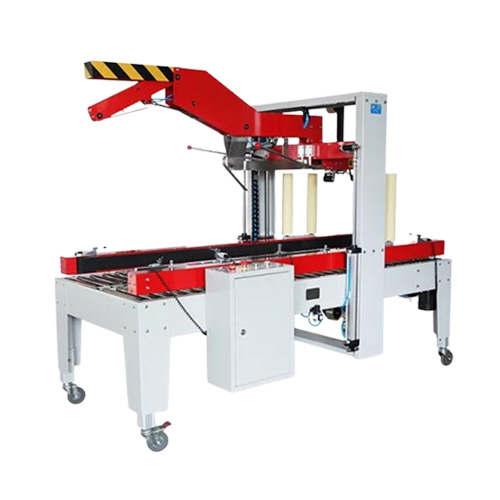

Automatic Carton Box Tape Sealing Machine Suppliers GPS- FXJ-5050ZQ
Technical Specification:
| Model | GPS - FXJ 5050ZQ |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Air Compressor (Mpa) | 0.4-0.6 |
| Speed (m/min) | 22 |
| Max. Carton Size (LxWxH)(mm) | 600x500x500 |
| Min. Carton Size (LxWxH)(mm) | 250x150x180 |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 660-840 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (LxWx H)(mm) | 2270x1030x(1705-1945) |
| Net Weight (kg) | 280 |
| Max. Conveyor Load(kg) | 30 |

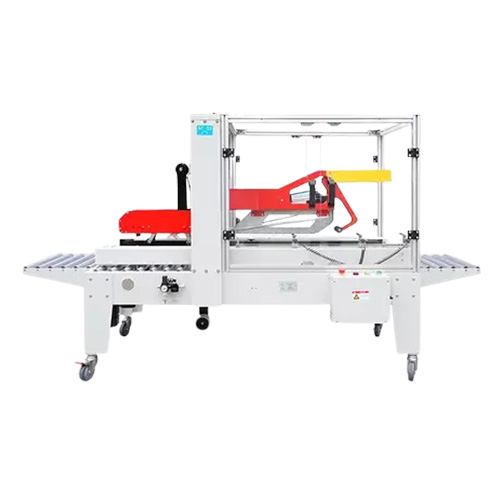

Automatic Carton Box Sealer Machine for Box Taping GPS- FXJ-5050ZX
Technical Specification:
| Model | GPS - FXJ 5050ZX |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 260 |
| Air Compressor (Mpa) | 0.4-0.6 |
| Speed (m/min) | 22 m/min (15-25 cartons/min) |
| Max. Carton Size (LxWxH)(mm) | 600x500x500 |
| Min. Carton Size (LxWxH)(mm) | 180x160x180 |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | According to customer's requirement |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (LxWx H)(mm) | 1830(with bracket2640)x920x(1480-1640) |
| Net Weight (kg) | 250 |
| Max. Conveyor Load(kg) | 30 |

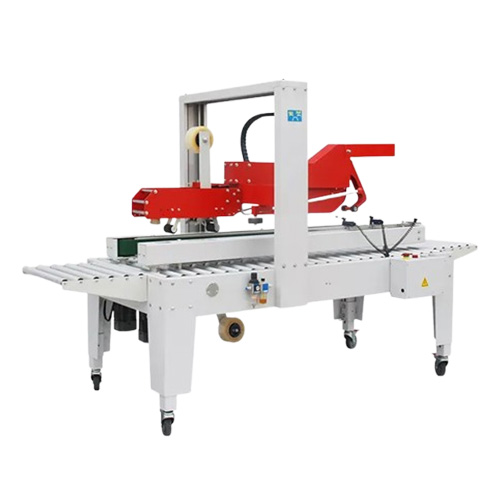

Fully Automatic Flap Folding Carton Sealing Machine for Water Free Adaptive Tape GPS-FXJ-5050Z
Technical Specification:
| Model | GPS - FXJ 5050Z |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 260 |
| Air Compressor (Mpa) | 0.4-0.6 |
| Speed (m/min) | 22 m/min (25 cartons/min) |
| Max. Carton Size (LxWxH)(mm) | 600x500x500 |
| Min. Carton Size (LxWxH)(mm) | 180x160x180 |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 600-750 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (LxWx H)(mm) | 1830x920x(1450-1600) |
| Net Weight (kg) | 250 |
| Max. Conveyor Load(kg) | 30 |

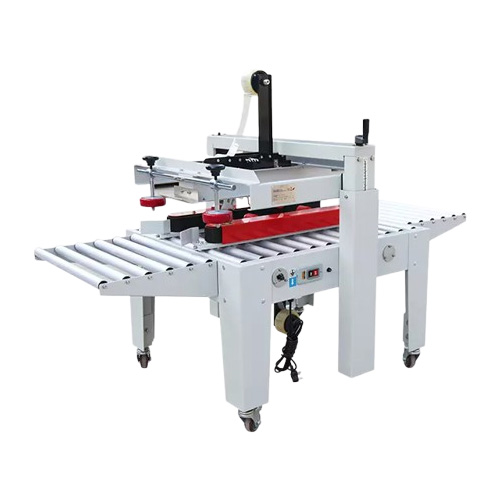

Carton Box Packing Machine with High Quality Adaptive Tape FXJ-5050AS
Technical Specification:
| Model | GPS - FXJ 5050AS |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 200 |
| Max. Carton Size (WxH)(mm) | 500x500 |
| Min. Carton Size (WxH)(mm) | 90x80x90 |
| Speed (m/min) | 20 m/min (30 cartons/min) |
| Adhesive Tape Materials | BOPP, PVCadhesive tape, water-free adhesive tape |
| Height of Table (mm) | 580-780 |
| Width of Adhesive Tape (mm) | 36, 48 |
| External Dimensions (LxWx H)(mm) | 1750x880x(1300-1500) |
| Net Weight (kg) | 115 |
| Max. Conveyor Load(kg) | 30 |

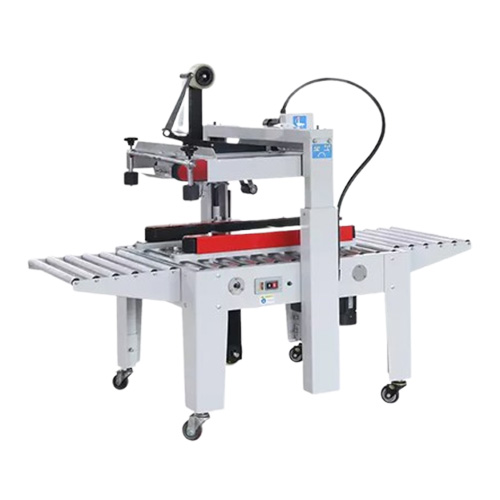

Easy Operation Heavy Duty Carton Box Sealer Machine for PVC Adaptive Tape GPS-FXJ 5050B
Technical Specification:
| Model | GPS - FXJ5050B |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 270 |
| Max. Carton Size (WxH)(mm) | 500x500 |
| Min. Carton Size (WxH)(mm) | 130x120 |
| Speed (m/min) | 20 m/min (30 cartons/min) |
| Adhesive Tape Materials | BOPP, PVCadhesive tape, water-free adhesive tape |
| Height of Table (mm) | 580-780 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (LxWx H)(mm) | 1730x950x(960-1550) |
| Net Weight (kg) | 125 |
| Max. Conveyor Load(kg) | 30 |

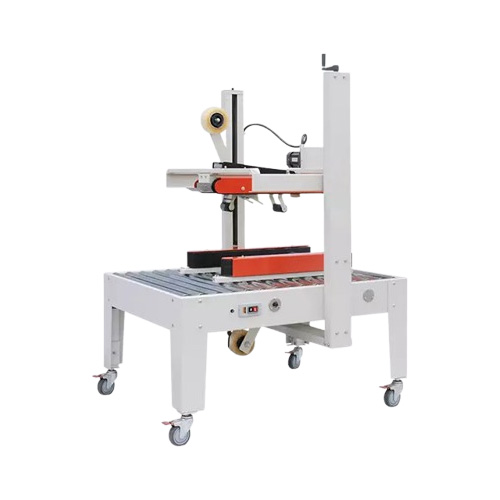

Semi-automatic Adhesive Tape Carton Sealer for Big Carton GPS - FXJ 8070B
Technical Specification:
| Model | GPS - FXJ 8070B |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 360 |
| Max. Carton Size (WxH)(mm) | 700x800 |
| Min. Carton Size (WxH)(mm) | 150x130x150 |
| Speed (m/min) | 20 m/min (25-45 cartons/min) |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 580-780 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (LxWx H)(mm) | 1230x1100x(1620-1820) |
| Net Weight (kg) | 160 |
| Max. Conveyor Load(kg) | 50 |

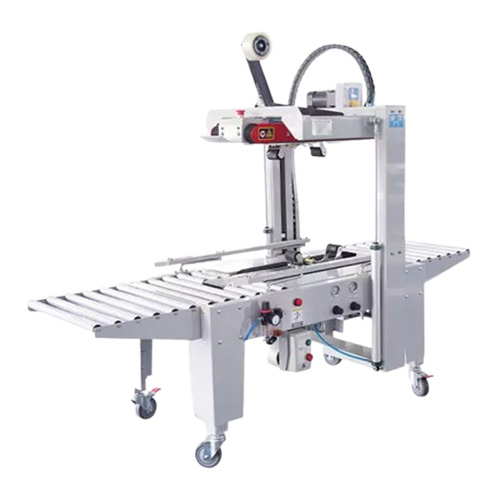

Random Fully Automatic Case Sealer for Water free Adaptive Tape GPS - FXJ 5050Q
Technical Specification:
| Model | GPS - FXJ5050Q |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Air Compressor (Mpa) | 0.5-0.6 |
| Speed (m/min) | 24 m/min (35 cartons/min) |
| Max. Carton Size (WxH)(mm) | 500x500 |
| Min. Carton Size (WxH)(mm) | 200x120 |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 580-780 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (LxWx H)(mm) | 1970x780x(1280-1460) |
| Net Weight (kg) | 160 |

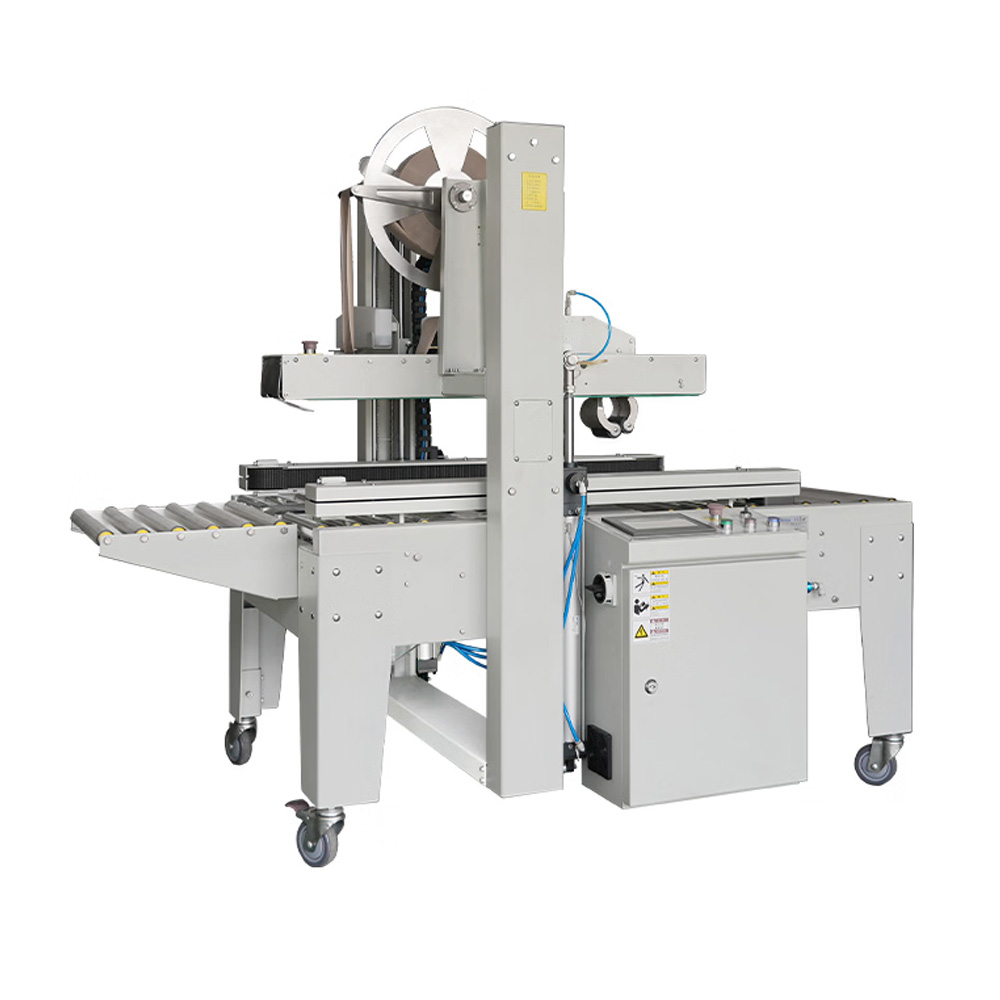

Hualian Pneumatic Random Eco-Friendly Water-activated Tape Carton Sealing Machine GPS HCS-55AW
Technical Specification:
| Model | GPS - HSC 55 AW |
| Voltage(V/Hz) | AC 220/50 110V/60 |
| Gross Power(W) | 600 |
| Max.Carton for Sealing(L*W*H)(mm) | ∞*500*500 |
| Min.Carton for Sealing(L*W*H)(mm) | 170*170*130 mm |
| Transport Speed (M/MIN) | 20(around 15 boxes/min) |
| Material for Tape | Water-activated kraft Paper (Max Dia.420mm) (The marking machine uses glue on the inside of the tape, and needs to be customized when glue is on the outside) |
| Table Height(mm) | 720~890 |
| Tape Specification (mm) | 48~75 |
| The Length Of Head Tape (mm) | 45~90 |
| Power Supply(MPa) | 0.5 |
| External Dimension(L*W*H)(mm) | 1510*1115*(1970-2090) |
| Net Weight (kg) | 299 |

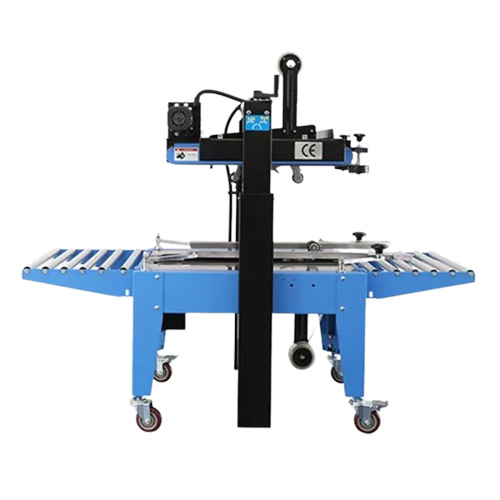

Hualian Ink Jet Printer carton Tape sealing machine carton box sealing packing machine FXJ-6050C
Technical Specification:
| Model | GPS - FXJ 6050C |
| Voltage (V/Hz) | AC 220/110V, 50/60Hz |
| Power (W) | 200 |
| Max. Carton Size (WxHxL)(mm) | 500X600X∞ |
| Min. Carton Size (WxHxL)(mm) | 180X 130X 150 |
| Speed (m/min) | 20 m/min |
| Adhesive Tape Materials | Water-free tape, BOPP, PVC |
| Height of Table (mm) | 635-780 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (LxWx H)(mm) | 1520X790(960-1650) |
| Net Weight (kg) | 150 |
| Transmission form | Upper and lower conveyor belt drive |

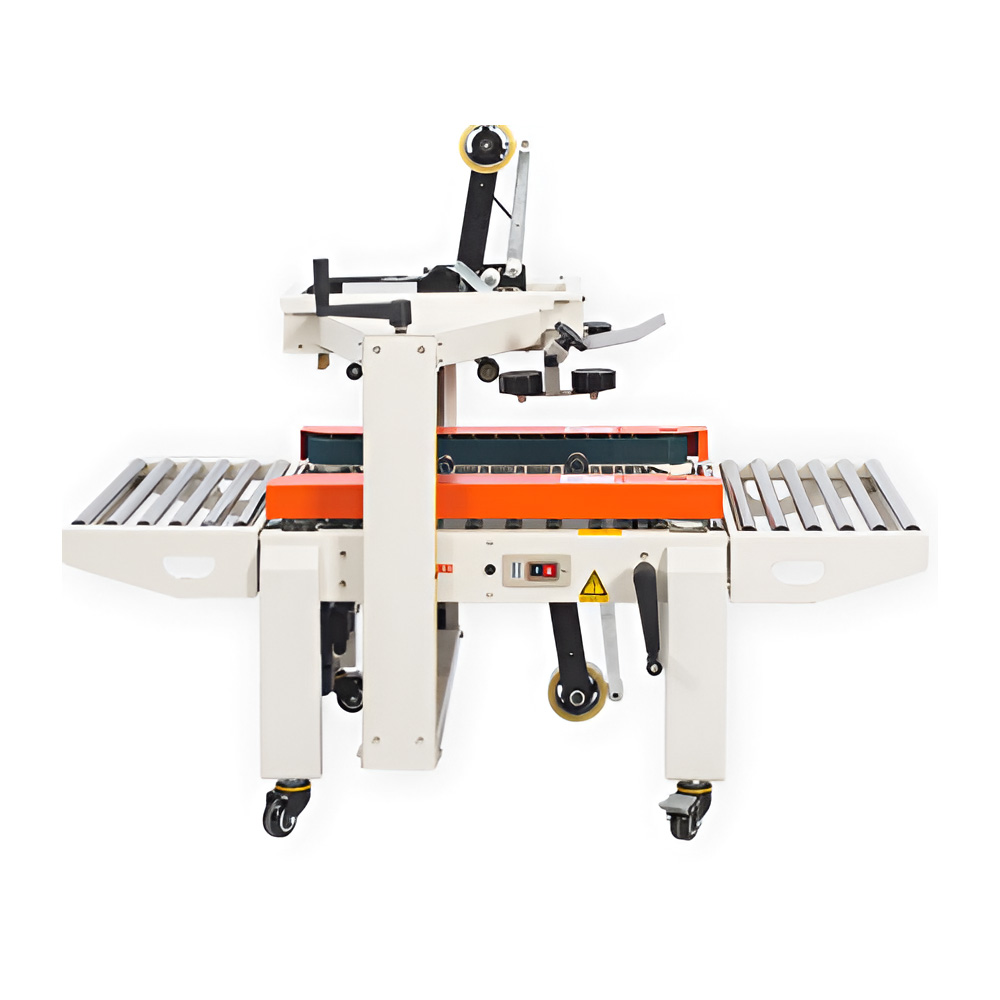

Carton Sealer Machine GPS – 5050X
Technical Specification:
| Model | GPS- 5050X |
| Sealing capacity | 1,000 cases per hour(standard case) |
| Adhesive tape used | BOPP, PVC adhesive tape |
| Width of adhesive tape | 36 /48 mm |
| Power sources | 220V, 50Hz, 240W |
| Max. sealing dimensions (WxH) | 500x 500mm |
| Min. sealing dimensions (WxH) | 80x 90mm |

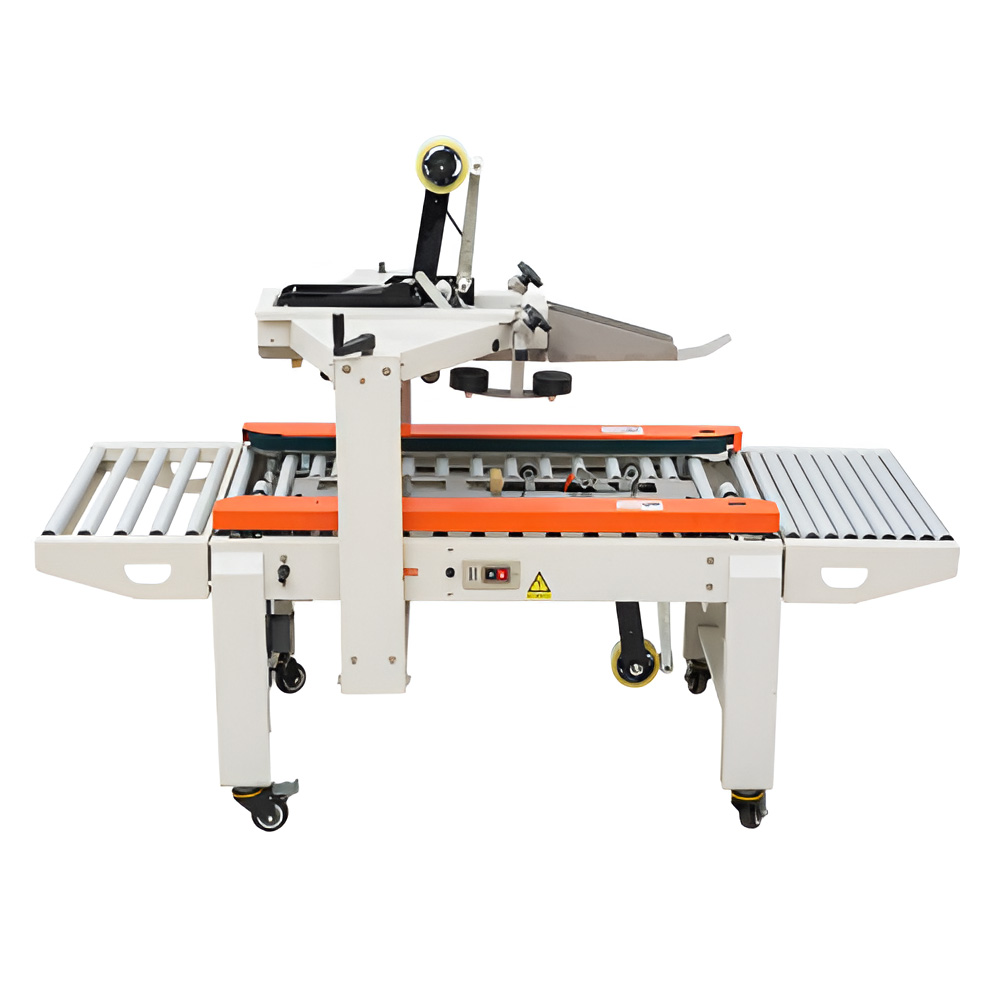

Carton Sealing Machine GPS – 4050FXG (Dingye)
Technical Specification:
| Model | GPS - 4050XFG |
| Adhesive tape used | BOPP, water-free adhesive Tape PVC adhesive tape |
| Width of adhesive tape | 35mm/45mm |
| Power sources | 220V, 50Hz, 240W |
| Max. sealing dimensions (W*H) | Postal box:500*385mm |
| Min. sealing dimensions (W*H) | Postal box:80*45mm Folding box:100*40mm |
| Machine size | 1785*835*1410mm |

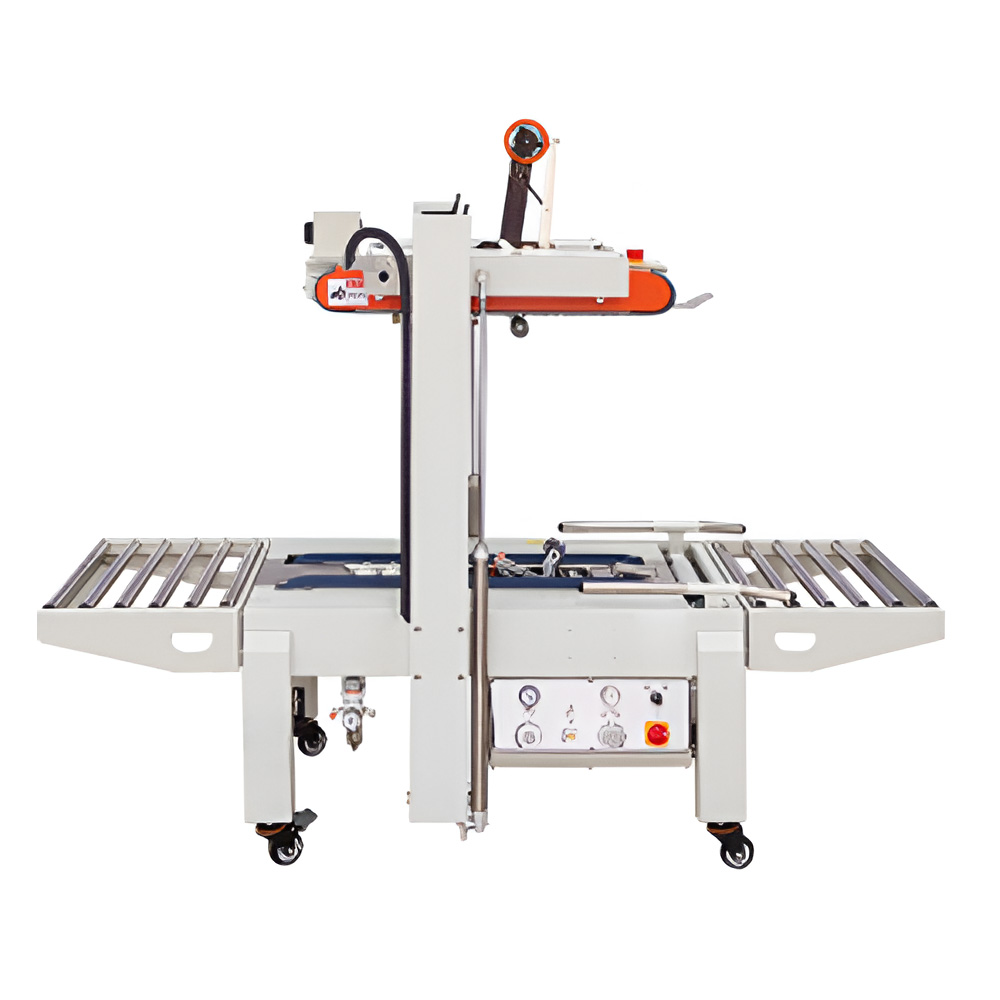

Automatic Carton Sealer GPS - DQFXA6050 (Dingye)
Technical Specification:
| Model | GPS- DQFXA6050 |
| Sealing capacity | about 1,000 standard cases per hour |
| Adhesive tape used | BOPP, water-free adhesive Tape, PVC adhesive tape |
| Width of adhesive tape | 48/60mm |
| Power sources | 220V, 50Hz, 240W |
| Max. sealing dimensions (W*H) | 500X600mm |
| Min. sealing dimensions (W*H) | 140X150mm |

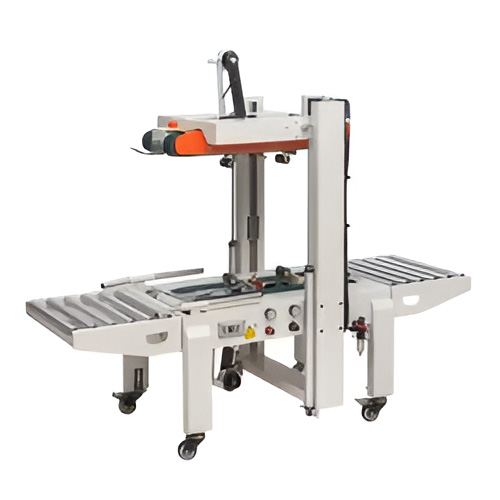

Carton Sealing Machine GPS - DFXC6050A (Dingye)
Technical Specification:
| Model | GPS - DFXC6050A |
| Sealing capacity | about 1,000 standard cases per hour |
| Adhesive tape used | BOPP, water-free adhesive Tape, PVC adhesive tape |
| Width of adhesive tape | 48/60mm |
| Power sources | 220V, 50Hz, 180W |
| Max. sealing dimensions (W*H) | 600X500mm |
| Min. sealing dimensions (W*H) | 140X150mm |

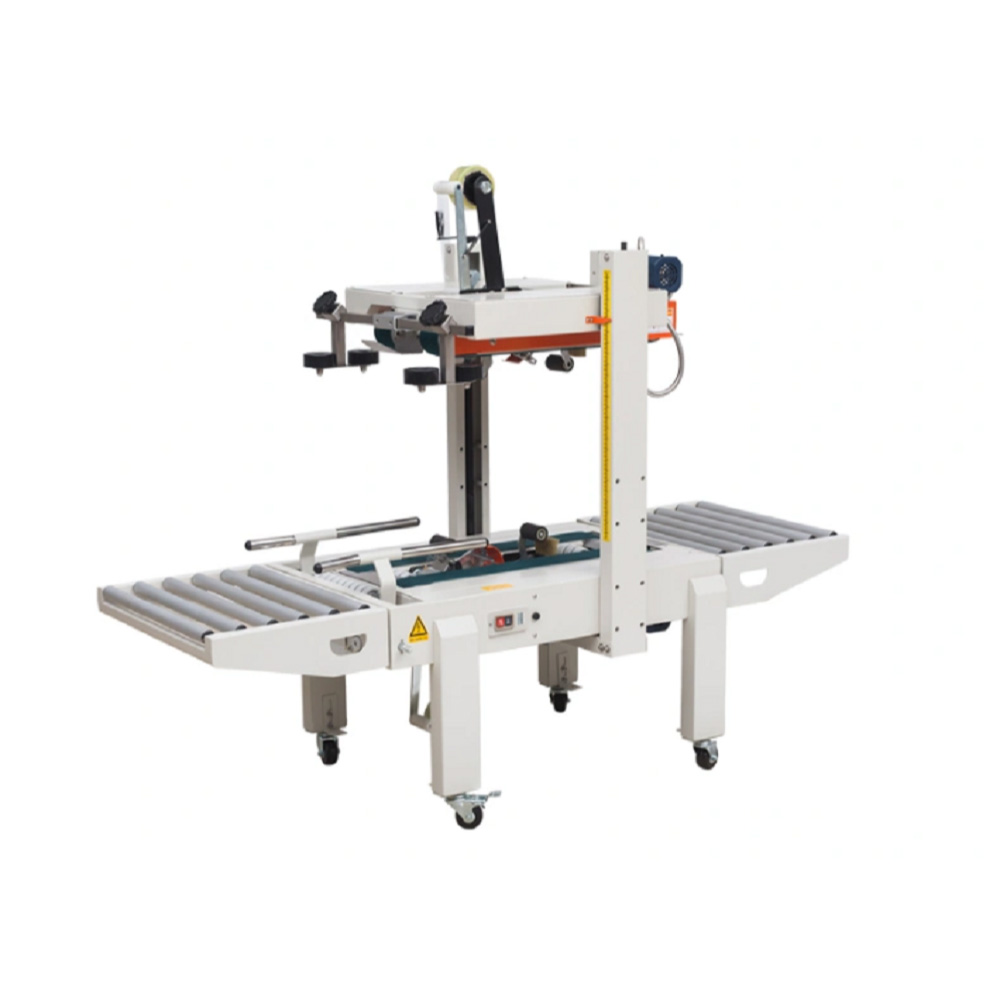

Carton Sealer Machine GPS - 6050S (Dingye)
Technical Specification:
| Model | GPS - 6050S |
| Sealing capacity | about 1,000 standard cases per hour |
| Adhesive tape used | BOPP, water-free adhesive Tape, PVC adhesive tape |
| Width of adhesive tape | 48/60mm |
| Power sources | 220V, 50Hz, 180W |
| Max. sealing dimensions (W*H) | 500X600mm |
| Min. sealing dimensions (W*H) | 140X150mm |

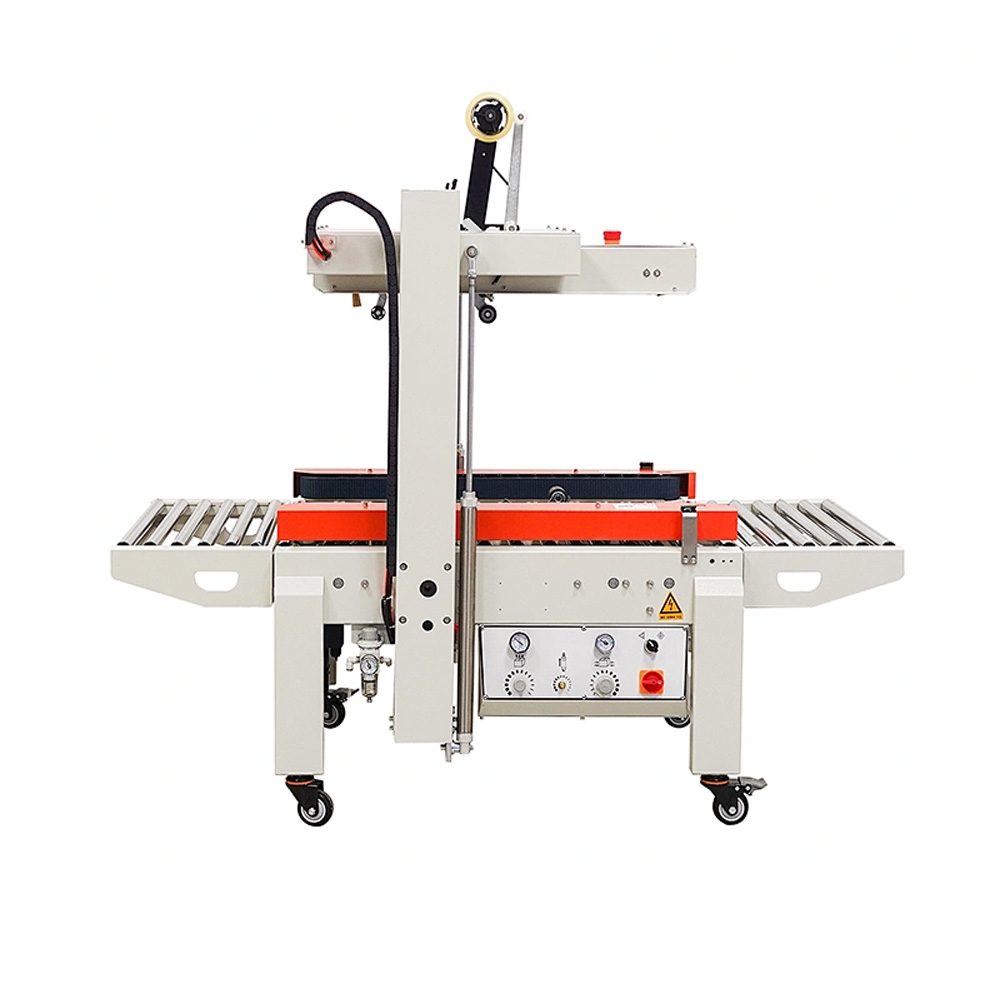

Automatic Carton Sealer GPS - DQFXC5045X
Technical Specification:
| Model | GPS - DQFXC5045X |
| Power supply | 220V/50-60HZ, 1phase |
| Width of adhesive tape | 36/45mm |
| Max. packing dimension | 450(W)x500(H)mm |
| Min. packing dimension | 150(L)x180 (W)x100 (H)mm |
| Air pressure of working | 0.5 MPa |
| Loading weight | 25Kg |
| Machine size | 1170(L)x790 (W)x1200 (H)mm |

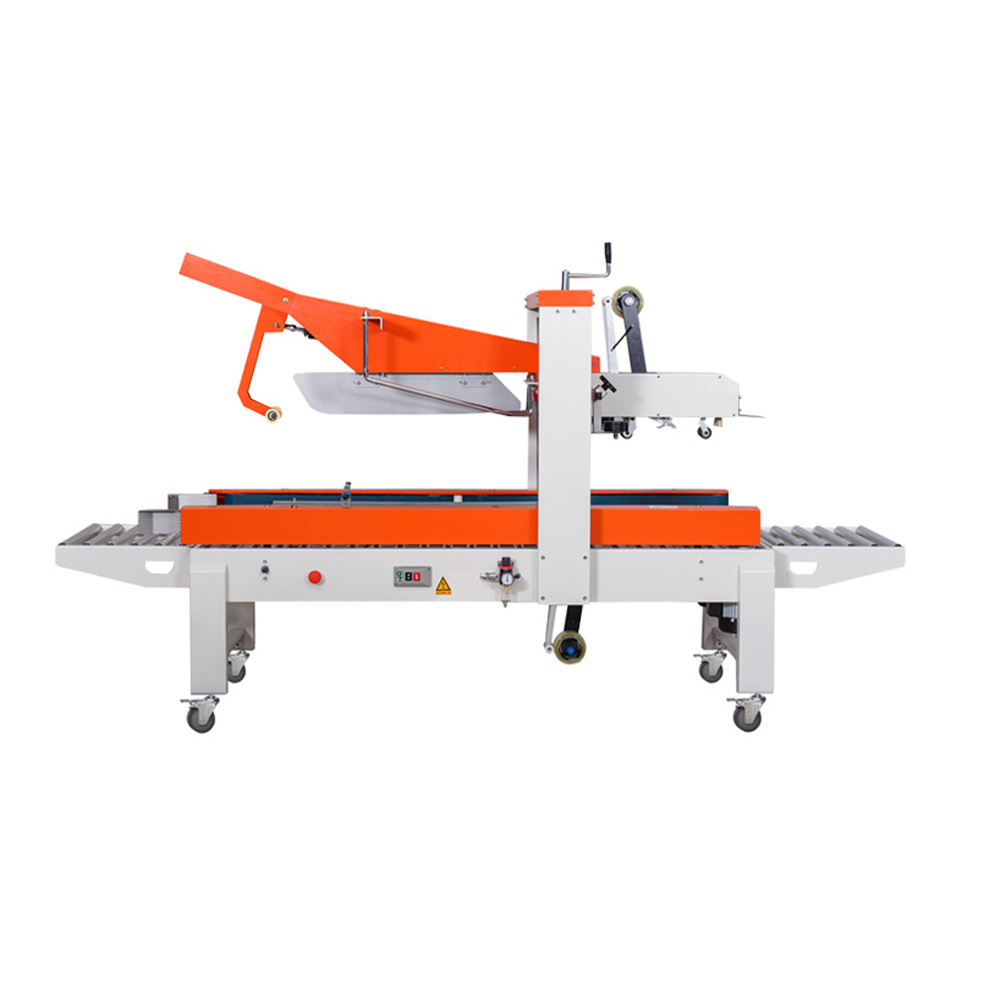

Automatic Carton Sealer GPS-5050Z (Dingye)
Technical Specification:
| Model | GPS - 5050Z |
| Power supply | AC220V/50,AC110V/60Hz 420W |
| Max. packing dimension | 500(W)* 500(H)* 600(L)mm |
| Min. packing dimension | 200(W)*160 (H)*200 (L)mm |
| Air Pressure | 2/3L, 5Kg/cm² |
| Working table height | 600-700mm |
| speed | 18m/min |
| Width of adhesive tape | 48mm. 60mm. 75mm |
| Machine size | 2836X1010X(1600-1700)MM |

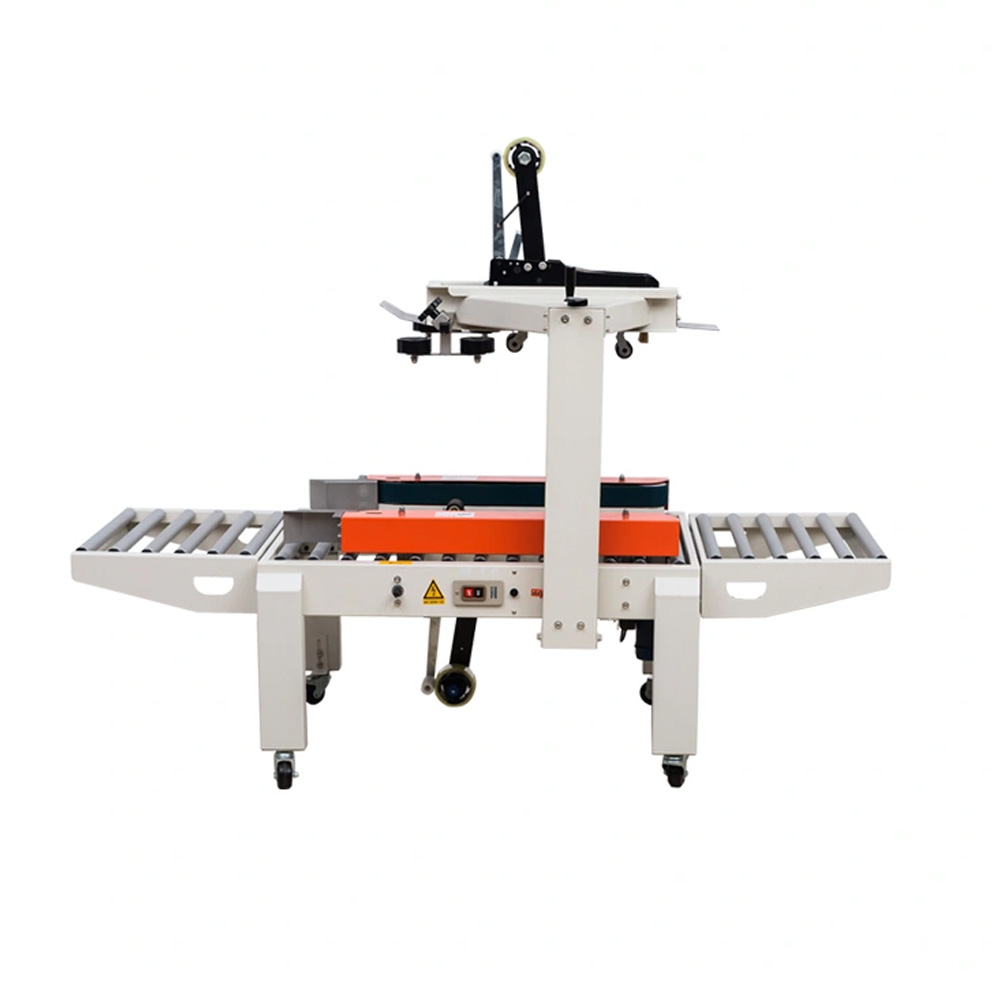

Automatic Carton Sealer GPS - 5050C (Dingye)
Technical Specification:
| Model | GPS-5050 |
| Sealing capacity | 1,000 cases per hour |
| Adhesive tape used | BOPP, PVC adhesive tape |
| Width of adhesive tape | 48/60 mm |
| Power sources | 220V50Hz /110V60HZ 240W |
| Max. sealing dimensions (WxH) | 500x 500mm |
| Min. sealing dimensions (WxH) | 130x 120mm |

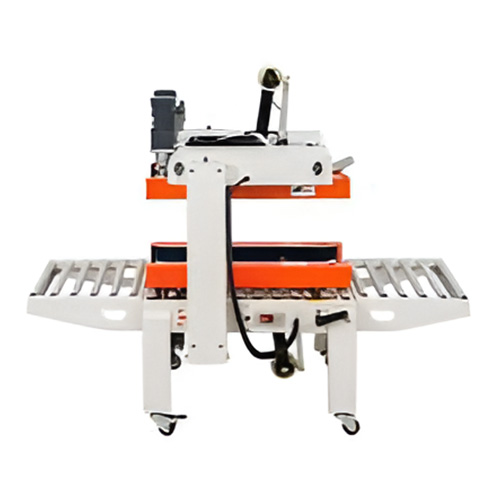

Carton Sealer Double Head 5050DD (Dingye)
Technical Specification:
| Model | GPS - DFXC5050DD |
| Adhesive tape used | BOPP, water-free adhesive Tape, PVC adhesive tape |
| Width of adhesive tape | 48mm,60mm |
| Power sources | 220V, 50Hz, 480W |
| Max. sealing dimensions (W*H) | 500*500mm |
| Min. sealing dimensions (W*H) | 130*195mm |
| Machine size | 1650*825*1445mm |

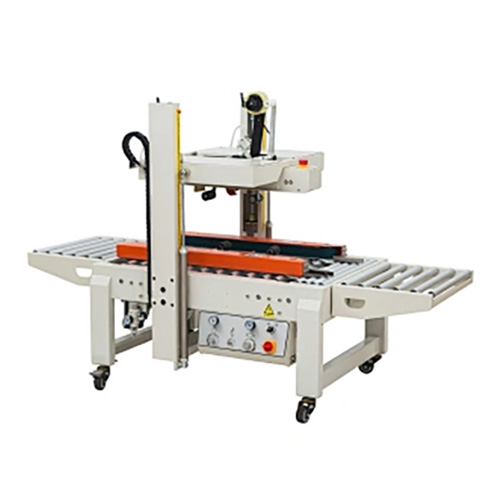

Automatic Carton Sealer (Side Belt Conveyor)
Technical Specification:
| Model | GPS - DQFXC5050 |
| Power supply | 220V/50-60HZ, 1phase |
| Width of adhesive tape | 48, 60,mm |
| Max. packing dimension | 500(W)x500(H)mm |
| Min. packing dimension | 130(W)x120(H)mm |
| Air pressure of working | 0.5 MPa |
| Loading weight | 25Kg |

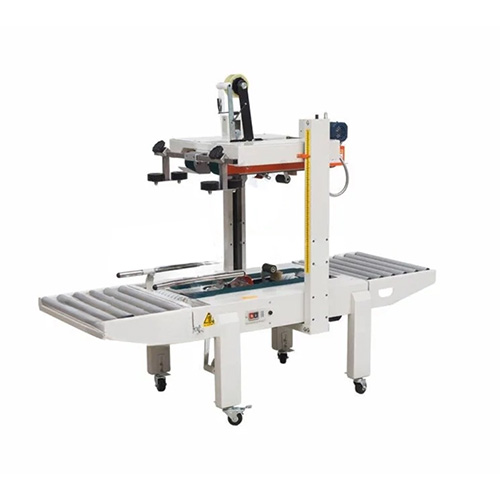

Carton Sealer 2 Inch Head Top and Bottom (Dingye)
Technical Specification:
| Model | GPS 102 TU D |
| Voltage (V/Hz) | 220 / 50 |
| Maximum Carton Size ( WxH ) mm | 500 x 600 |
| Minimum Carton Size ( WxH ) mm | 140 x 150 |
| Speed (m/min.) | 18 |
| Available Adhesive Tape | BOPP, water free adhesive tape, PVC adhesive tape |
| Height of Table (mm) | 580 x 780 |
| Width of Adhesive Tape (mm) | 36, 48,60 |
| Size (LxWxH) mm | 1800 X 706 x(1380 - 1580) |
| Weight (kg) | 120 |
| Air Compressor | NA |
Carton Sealer 2 Inch Head for Smaller Cartons Side Drive (Dingye)
Technical Specification:
| Model | GPS - 102 TU SD |
| Voltage (V/Hz) | 220 / 50 |
| Maximum Carton Size ( WxH ) mm | 500 x 500 |
| Minimum Carton Size ( WxH ) mm | 100 x 100 |
| Speed (m/min.) | 20 |
| Available Adhesive Tape | BOPP, water free adhesive tape, PVC adhesive tape |
| Height of Table (mm) | 580 x 780 |
| Width of Adhesive Tape (mm) | 36, 48 |
| Size (LxWxH) mm | 1730 X 1050 x(960 - 1550) |
| Weight (kg) | 115 |
| Air Compressor | NA |

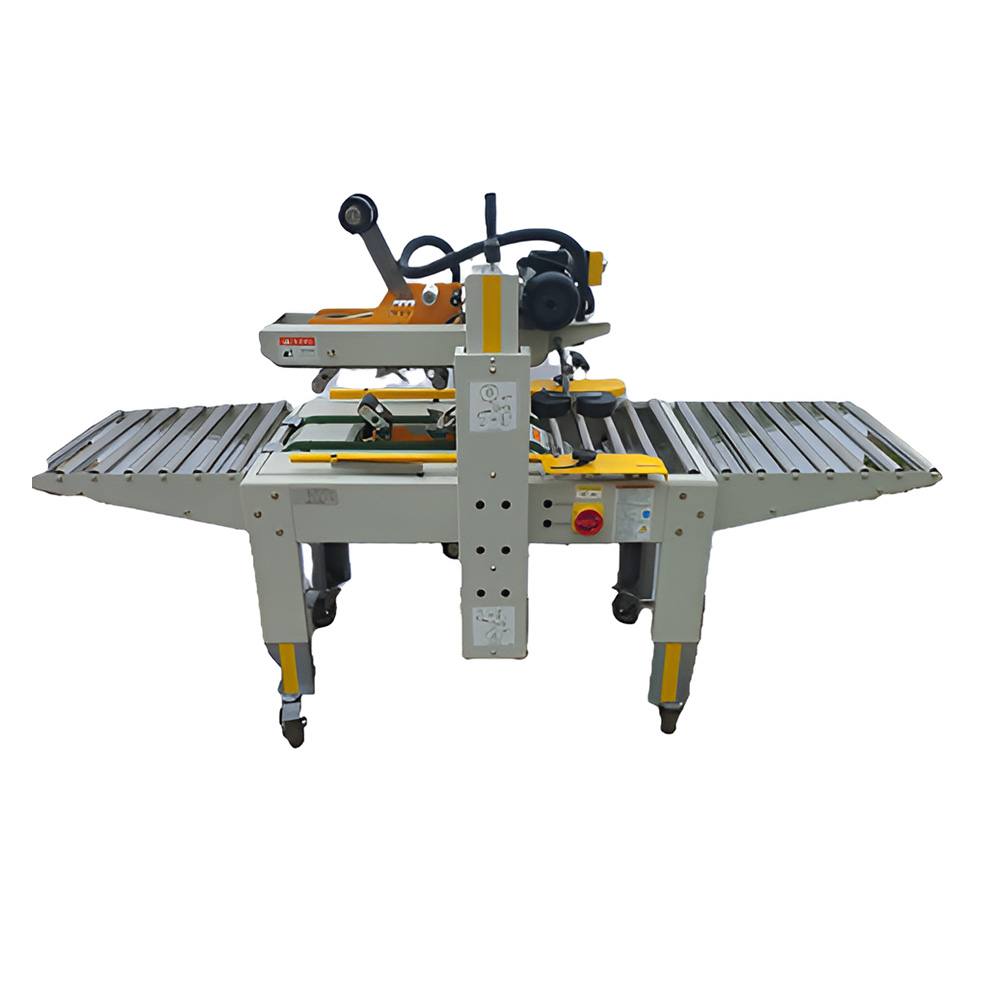

Carton Sealer with IN-OUT Conveyor GPS - 102TU (Chali Taiwan)
Technical Specification:
| Model | GPS-102 TU |
| Power Supply | 1 Phase 110V/220V/240V |
| Packing Size | Max.: L∞ x W500 x H500 mm Min.: L150 x W170 x H110 mm |
| Tape Width | 50 mm (2”) or 76 mm (3”) |
| Working Table Height | 570~770 mm (Adjustable) |
| Sealing Capacity | 20 Cartons per minute (Carton: L500 mm, Power: 60 HZ) |
| Dimensions | L1052 x W755 x H1430 mm (with optional extensive working table) |
| Net Weight | 133 Kg |

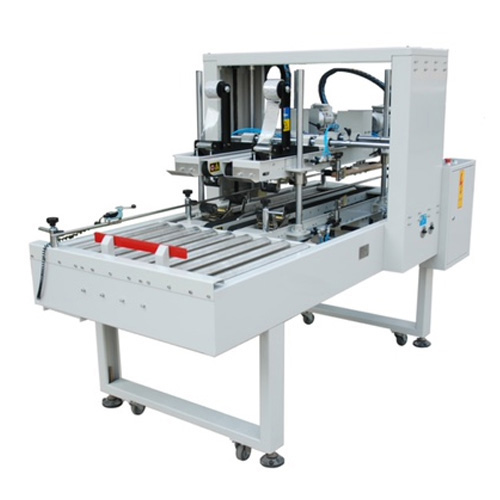

Edge Carton Sealer
Technical Specification:
| Model | GPS - 102 TU EC |
| Voltage (V/Hz) | AC 220/50, 110/60 |
| Power (W) | 850 |
| Air Compressor (Mpa) | 0.5~0.6 |
| Max. Carton Size (LxWxH)(mm) | 500x500x500 |
| Min. Carton Size (LxWxH)(mm) | 320x200x180 |
| Speed (m/min) | 20 m/min (10 cartons/min) |
| Adhesive Tape Materials | BOPP, PVCadhesive tape, water-free adhesive tape |
| Height of Table (mm) | 750 |
| Width of Adhesive Tape (mm) | 60,76 (optional) |
| Package Weight (kg) | 2.5-30 |
| External Dimensions (LxWx H)(mm) | 1955x1060x1510 |
| Net Weight (kg) | 400 |

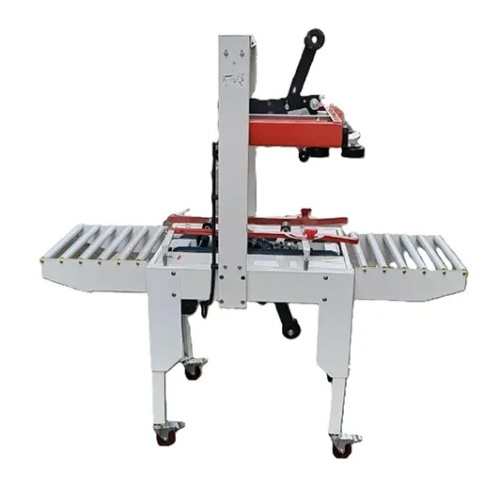

Carton Sealer 3 Inch Head Top and Bottom (Regular)
Technical Specification:
| Model | GPS - 102TU R |
| Voltage (V/Hz) | 220 / 50 |
| Maximum Carton Size ( WxH ) mm | 500 x 600 |
| Minimum Carton Size ( WxH ) mm | 140 x 150 |
| Speed (m/min.) | 18 |
| Available Adhesive Tape | BOPP, water free adhesive tape, PVC adhesive tape |
| Height of Table (mm) | 580 x 780 |
| Width of Adhesive Tape (mm) | 36, 48,60 |
| Size (LxWxH) mm | 1800 X 706 x(1380 - 1580) |
| Weight (kg) | 120 |
| Air Compressor | NA |

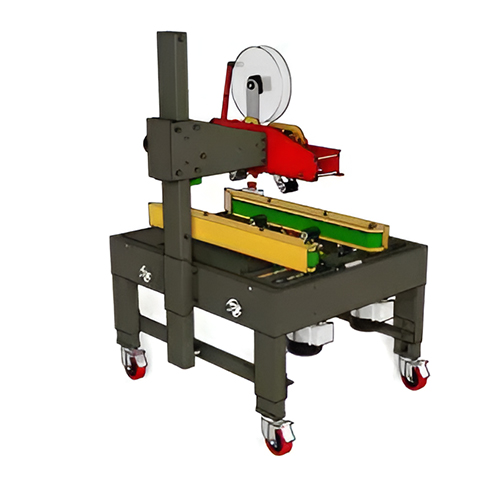

Packway Carton Sealer Machine GPS-PW-542
Technical Specification:
| Power | 1 Phase, 110/220V, 50/60Hz |
| Tape Head | C-6 |
| OPP | 2"/3" (Please advise when ordering) |
| Min.Sealing Size (LxWxH) | 2' OPP: >150 x 120 x 85 (mm) >5.9 x 4.7 x 3.3 (in) 3" OPP: >150 x 145 x 85 (mm) >5.9 x 5.7 x 3.3 (in) |
| Max.Sealing Size(LxWxH) | 2' OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) 3" OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) |
| Tape Overlap | 60±5(mm) 2.4±0.2(in) |
| Working Table Height | 560~760 (mm) 22~30 (in) |
| Max Loading Weight | 30 (kg) 66 (lb) |
| Capacity | 30 boxes/min. For box length 300mm (Belt speed 20M/min) |
| Net Weight | 148 (kg) 326.3 (lb) |
| Machine Size (LxWxH) | 967 x 946 x 1363~1563 (mm) 38 x 37 x 53.7~61.5 (in) |

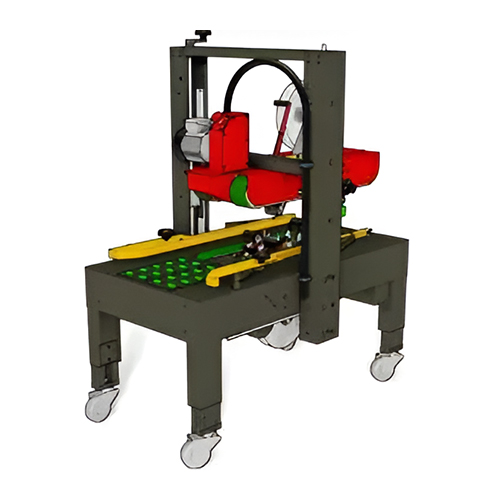

Packway Carton Sealer Machine GPS-PW-551TB
Technical Specification:
| Power | 1 Phase, 110/220V, 50/60Hz |
| Tape Head | C-1 |
| OPP | 2"/3" (Please advise when ordering) |
| Min. Sealing Size (LxWxH) | 2' OPP: >150 x 200 x 120 (mm) >5.9 x 7.9 x 4.7 (in) 3" OPP: >150 x 225 x 120 (mm) >5.9 x 8.9 x 4.7 (in) |
| Max. Sealing Size (LxWxH) | 2' OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) 3' OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) |
| Tape Overlap(mm) | 2' OPP : 60±5 (mm) 2.4±0.2 (in) 3' OPP : 40±5(mm) 1.6±0.2 (in) |
| Working Table Height(mm) | 570~810 (mm) 22.4~31.9 (in) |
| Capacity | 30 boxes/min. For box length 300mm (Belt speed 20M/min) |
| Net Weight | 160 (kg) 352.7 (lb) |
| Machine Size(mm)(LxWxH) | 1044 x 779 x 1569~1764 (mm) 41.1 x 30.7 x 61.8~69.4 (in) |

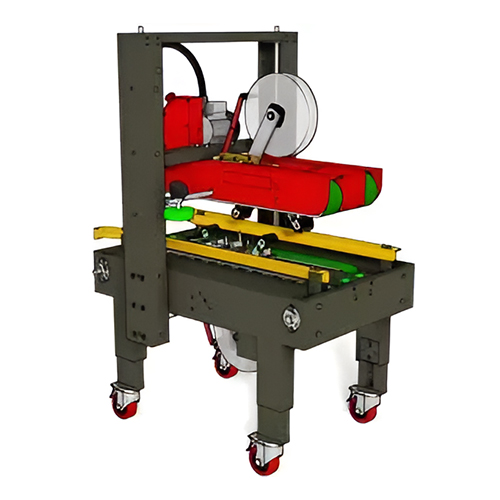

Packway Carton Sealer Machine GPS-PW-552TB
Technical Specification:
| Power | 1 Phase, 110/220V, 50/60Hz |
| Tape Head | C-1 |
| OPP | 2"/3" (Please advise when ordering) |
| Min. Sealing Size (LxWxH) | 2' OPP: >150 x 200 x 120 (mm) >5.9 x 7.9 x 4.7 (in) 3" OPP: >150 x 225 x 120 (mm) >5.9 x 8.9 x 4.7 (in) |
| Max. Sealing Size (LxWxH) | 2' OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) 3' OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) |
| Tape Overlap(mm) | 2' OPP : 60±5 (mm) 2.4±0.2 (in) 3' OPP : 40±5(mm) 1.6±0.2 (in) |
| Working Table Height(mm) | 720~810 (mm) 28.3~31.9 (in) |
| Capacity | 30 boxes/min. For box length 300mm (Belt speed 20M/min) |
| Net Weight | 160 (kg) 352.7 (lb) |
| Machine Size(mm)(LxWxH) | 1044 x 779 x 1569~1764 (mm) 41.1 x 30.7 x 61.8~69.4 (in) |

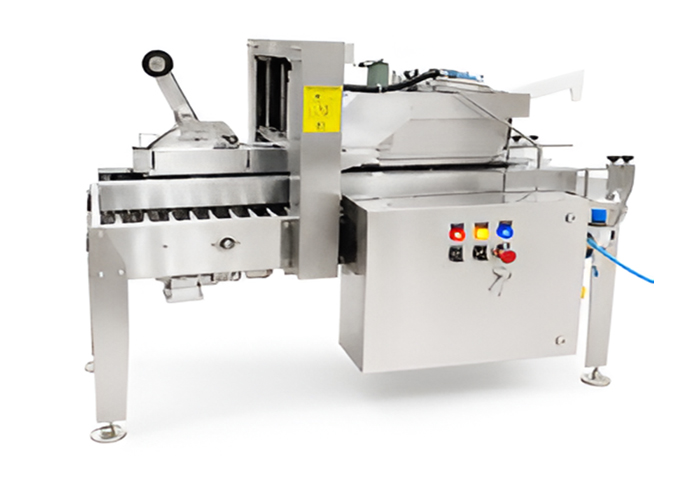

We also manufacturer special customized carton sealer SS & MS body machine on request
